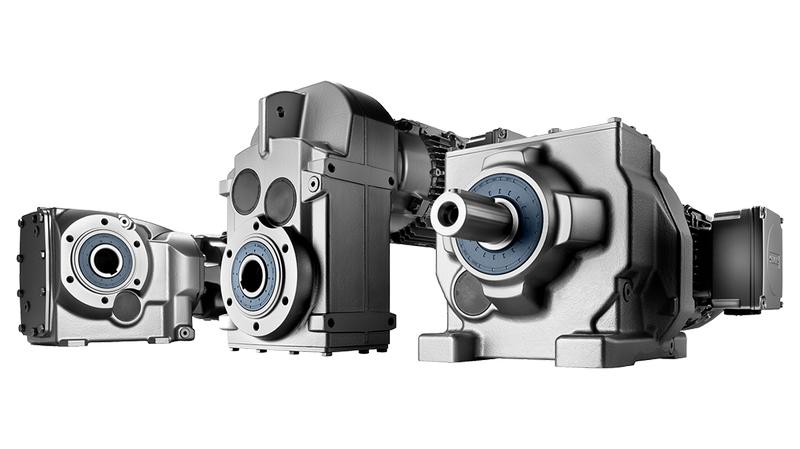

Our diverse array of Innomotics geared motors guarantees the perfect fit for your requirements. The new SIMOGEAR, in particular, offers unparalleled flexibility, boasting a wide selection of gear units, complete adaptability, and a compact design to suit various needs. Additionally, we provide servo geared motors tailored specifically for Motion Control applications, enhancing precision and performance in those scenarios.
The new SINAMICS G115D stands as a robust solution meticulously crafted to tackle present and forthcoming challenges in horizontal conveyor applications. It consolidates a motor, frequency converter, and gearbox into a singular unit. This all-inclusive design ensures seamless integration into current automation setups, simplifying the process of incorporating it into existing environments.
The SINAMICS G115D represents more than a standard frequency converter. It embodies a meticulously harmonized system solution, incorporating a high-efficiency geared motor and an innovative, low-profile frequency converter. Specifically fine-tuned for energy and cost-efficient horizontal motion, it excels in various applications like conveyor belts, sorting systems, baggage and freight conveyors, warehouse and distribution logistics, as well as mail and parcel sorting and distribution. This optimized system caters to these needs with precision and effectiveness.
SIMOGEAR Converter World Motor, perfectly compatible with SINAMICS frequency converters. This geared motor boasts an IE3 efficiency class, finely tuned for optimal operation with converters, spanning a power range from 0.37 kW to 55 kW.
As a “world motor,” it simplifies global certification by featuring one standard motor winding. Optimized for line voltages ranging from 380 V to 480 V, it consistently delivers peak performance. Moreover, seamless integration into tools like the TIA Portal, TIA Selection Tool, and Drive Technology Configurator ensures a streamlined user experience.

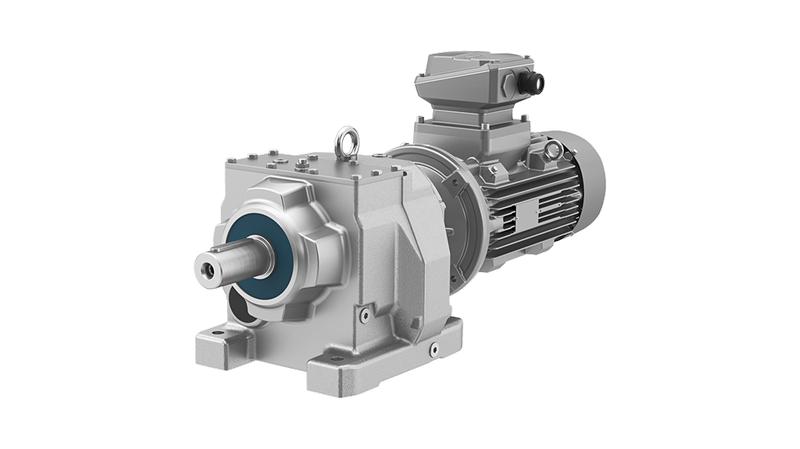

The SIMOGEAR explosion-protected geared motors are engineered to operate in hazardous zones, prioritizing safety in these environments. These highly efficient motors are designed to endure extreme conditions for prolonged periods without compromising safety.
We’ve expanded our explosion-protected portfolio to introduce an integrated version that eliminates the need for an adapter. In applications within Zone 2 (gas) and Zone 22 (dust), this integrated design streamlines the setup by removing the necessity for an adapter between the motor and gearbox. This reduction in complexity simplifies dimensioning and selection processes, enhancing ease of use for our customers.

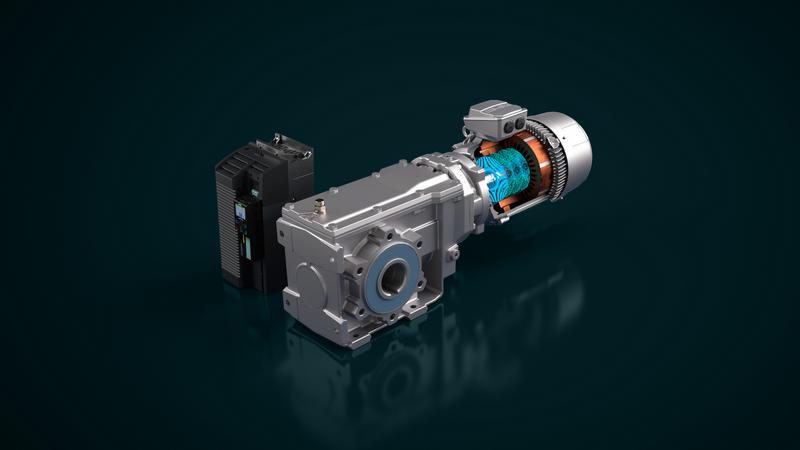

These motors equipped with the synchronous-reluctance solution offer easy servicing and are an excellent choice for high-energy-efficient drive systems. Compared to standard asynchronous motors, the synchronous-reluctance solution boasts several technical advantages.
Common applications are controlling roller, chain, and belt conveyors in airport baggage and cargo handling setups. It’s also well-suited for warehouse and distribution logistics, including packaging and mail handling. Additionally, it’s commonly used in hoisting equipment, scissor lift tables, monorail conveyors, and automotive industry skids.

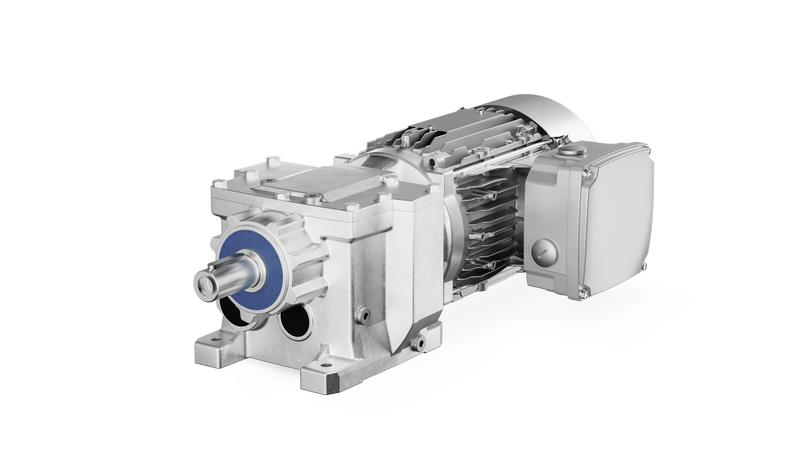

Simogear helical geared motors achieve high gear ratios due to their shank pinion design, ensuring exceptional economic performance and high energy efficiency, boasting efficiencies of up to 98% per stage. Available across a wide power range, these motors come in one, two, or three-stage configurations in both foot and flange-mounting versions with a solid shaft.
The versatile SIMOGEAR helical geared motors, among their various applications, excel notably in conveyor belts for transporting packaged goods and in vertical conveyor systems.

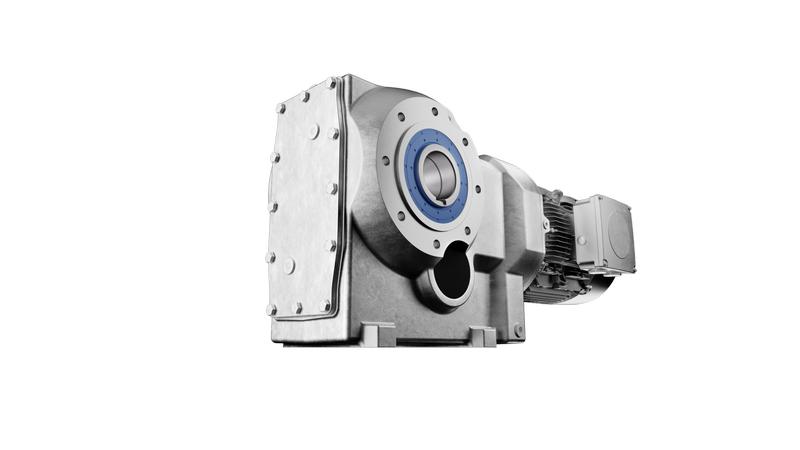

Simogear bevel geared motors, known for their ability to attain high gear ratios, boast remarkable energy efficiency with efficiencies reaching up to 98% per stage. These motors not only achieve high gear ratios but also possess a high power density, making them suitable for use in narrow spaces and limited spatial conditions.
Available in two and three-stage configurations, they come in foot or flange-mounting versions with solid or hollow shafts. The versatile SIMOGEAR bevel geared motors are extensively utilized in baggage and material handling conveyors, rope lifts within warehouse logistics, and carriage drives.
Parallel shaft geared motors, well-suited for narrow construction spaces, deliver exceptional energy efficiency with efficiencies reaching 98% per stage. The SIMOGEAR parallel shaft geared motors achieve high gear ratios owing to the plug-in pinion design and offer the flexibility of placing hollow shafts on both ends. Available in two or three-stage configurations, they can be mounted via foot or flange-mounting, housing flanges, or shaft mounting with torque arm support.
These motors come with options for solid shafts, hollow shafts, splined hollow shafts, or hollow shafts with shrink discs. Widely utilized in various applications, they are commonly found in agitator drives, carriage drives, shelf access equipment, and vertical conveyor systems.
Worm geared motors, prized for their quiet operation, present an economical solution, particularly for low power ranges. Their compact design enables use in narrow spaces while achieving high gear ratios. Available in one or two-stage configurations, they come in foot or flange-mounting versions.
The SIMOGEAR worm geared motors feature the SIMOLOC, a keyless tapered hollow shaft locking system, enhancing their efficiency. These motors are available with solid or hollow shafts and are commonly employed in applications such as small conveyor belts, conveyor systems, and rope lifts, owing to their design and functionality.
The helical worm geared motors, available in a 2-stage version with mounting options of solid and hollow shafts, prioritize energy efficiency. These motors are often preferred for drives requiring angular geared motors. Thanks to the worm gear stage, they enable the implementation of high gear ratios.
SIMOGEAR helical worm geared motors serve as a cost-effective solution for angular geared motors within the lower torque range. Their operation results in extremely low noise, making them suitable for various applications such as waste water systems and as drives in theaters.
In crafting the SIMOTICS S-1FG1 servo geared motors, significant attention was dedicated to seamless integration with the SINAMICS S120 drive systems. These motors, converters, and commissioning tools are meticulously coordinated and harmonized for optimal performance.
Commissioning becomes swift due to the electronic type plate and the DRIVE-CLiQ system interface connecting the motors. Furthermore, pre-assembled MOTION-CONNECT signal and power cables streamline and ensure a flawless connection between components.
