BONFIGLIOLI
logo_bonfiglioli

Bonfiglioli catalogues

Click here for immediate price quote or call us at +39 080.5367090

Name*

Company*

Country*

Phone

E-mail*

Your Message*

br_cat_raind_std_eng_r01_full




8


helIcal and bevel helIcal gearmotorS

A series

9

C series

10

S series

11

F series

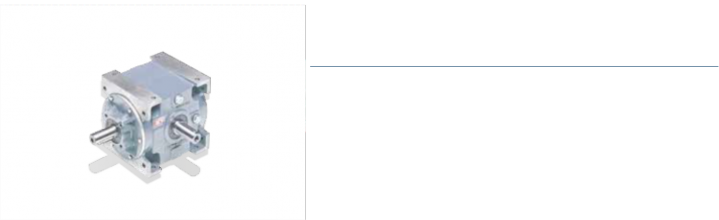

Worm gearmotorS

12

VF and W series

Planetary gear unItS

13

300 series

helIcal and bevel helIcal gearboxeS

14

HDP series

15

HDO series

16

TA series

bevel gearS

17

RAN series

InduStry-SPecIfIc SolutIonS

18

EP series

19

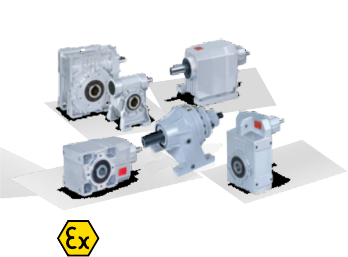

ATEX compliant gear units

20

3/H series

21

HDPE series

PrecISIon Planetary gearboxeS

22

LC series

23

LCK series

24

MP series

25

TR series

26

SL series

27

KR series

28

TQ series

29

TQK series

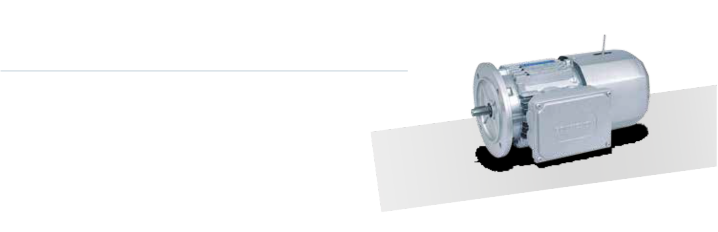

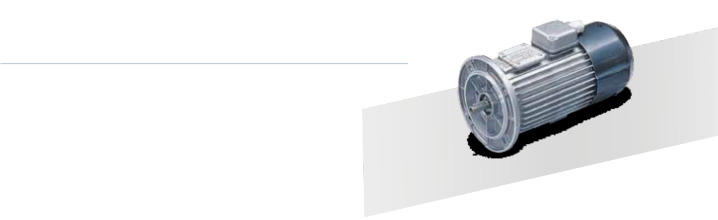

electrIc motorS

30

BN/M series

31

BE/ME series

32

BX/MX series

33

BS series

34

BC series

ServomotorS

35

BMD series

36

BTD series

37

BCR series

frequency Inverter

38

AGILE series

39

ACTIVE series

40

ACTIVE CUBE series

41

ACTIVE CUBE series - Size 8

42

VCB series

43

S2U series

human machIne InterfaceS

44

BMI series

45

our qualItIeS


46


WorldWIde netWork

Industrial market segment is covered through the following Product Lines:


Product offer

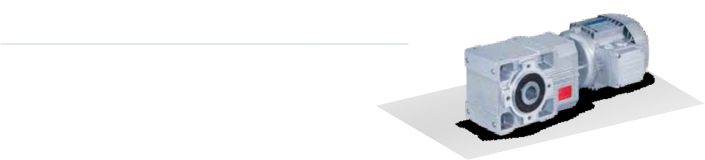

a series


Bonfiglioli Helical-bevel gearmotors


When efficiency and versatility meet each other.


The A series is the first product to prove equally good in regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.


Torque range

100 ... 14000 Nm


1

Mechanical rating (n = 1400 min-1)


Type Torque [Nm]

A 05

100

A 10

150

A 20

250

A 30

410

A 35

600

A 41

850

A 50

1500

A 55

2000

A 60

2800

A 70

5000

A 80

8000

A 90

14000

0.22 ... 150 kW


Gear ratios

5.4 ... 1715


Output

Foot and shaft mount - two bore options per size Keyless shrink disc fitting

Metric or Inch series solid output shaft

Taper bushings matching more shaft diameters Splined hollow shaft to DIN 5480


Input

IEC and NEMA motor adaptors Servomotor adapters

Metric or inch series solid input shaft


Main gear options

Backstop

Reinforced bearings for higher overhung load capacity Reducedbacklash

Taconite seals


Applicable AC motors

Integral motors and brake motors - M series / ME series

IEC-normalized motors and brake motors - BN series / BE series Single and dual speed motors


Main brake features

DC and AC supply

Faster brake engage/disengage through electronically Controlled AC/DC rectifier type SB, NBR, SBR (options)


Main motor options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder

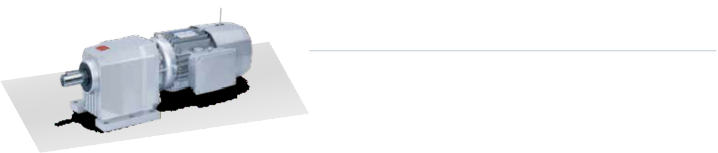

c series

In-line helical gearmotors


When Customers benefit from the know-how developed over the years.

Top torque density, product variety, extremely wide speed choice, great compactness and price effectiveness make the C series the unparalleled line of helical gearmotors and speed reducers.



Type Torque [Nm]


Torque range

45 ... 12000 Nm


1

Mechanical rating (n = 1400 min-1)

C 05

45

C 12

100

C 22

200

C 32

300

C 36

450

C 41

600

C 51

1000

C 61

1600

C 70

2300

C 80

4000

C 90

7200

C 100

12000

0.08 ... 213 kW


Gear ratios

2.6 ... 1481


Output

Foot and flange mount

Metric or inch series solid output shaft


Input

IEC and NEMA motor adaptors Servomotor adapters

Metric or inch series solid input shaft


Applicable AC motors

Integral motors and brake motors - M series / ME series

IEC-normalized motors and brake motors - BN series / BE series Single and dual speed motors


Main brake features

DC and AC supply

Faster brake engage/disengage through electronically Controlled AC/DC rectifier type SB, NBR, SBR (options)


Main motor options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder

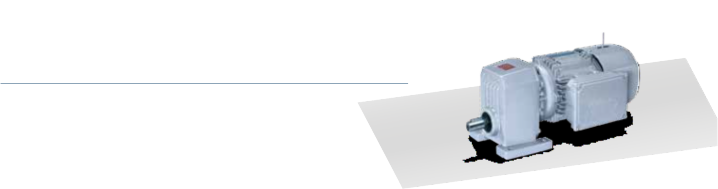

S series

Bonfiglioli Single reduction helical gearmotors


Simplicity above all.

Simple and yet powerful is the S series, developed for the pump industry as well as the fan and blower application.


Foot and flange mounted, with shaft dimensions to the UNEL - MEC standard.



Torque range

21 ... 200 Nm


1

Mechanical rating (n = 1400 min-1)


Type Torque [Nm]

S 10

21

S 20

37

S 30

70

S 40

125

S 50

200

0.12 ... 11.6 kW


Gear ratios

1.4 ... 13.1


Output

Foot and flange mount


Input

IEC-normalized motor adaptors Solid input shaft


Applicable AC motors

Integral motors and brake motors - M series / ME series

IEC-normalized motors and brake motors - BN series / BE series Single and dual speed motors


Main brake features

DC and AC supply

Faster brake engage/disengage through electronically Controlled AC/DC rectifier type SB, NBR, SBR (options)


Main motor options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder

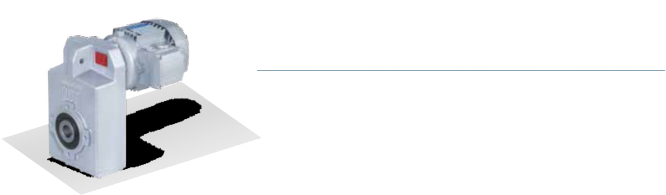

f series

Shaft mounted gearmotors





Type Torque [Nm]

Ruggedness and effectiveness to the state-of-the-art.

No better, easier and neater installation than with a shaft mounted unit of the F series. Lightweight and performing, an F unit is the dependable drive for all the material handling applications.



Torque range

140 ... 14000 Nm


1

Mechanical rating (n = 1400 min-1)

F 10

140

F 20

250

F 25

400

F 31

600

F 41

1100

F 51

1800

F 60

2900

F 70

5000

F 80

8000

F 90

14000

0.17 ... 125 kW


Gear ratios

6.4 ... 2099


Output

Keyed hollow shaft - two bore options per size Keyless shrink disc fitting

Plug-in solid output shaft as an option


Input

IEC and NEMA motor adaptors Servomotor adapters

Metric or inch series solid input shaft


Applicable AC motors

Integral motors and brake motors - M series / ME series

IEC-normalized motors and brake motors - BN series / BE series Single and dual speed motors


Main brake features

DC and AC supply

Faster brake engage/disengage through electronically Controlled AC/DC rectifier type SB, NBR, SBR (options)


Main motor options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder

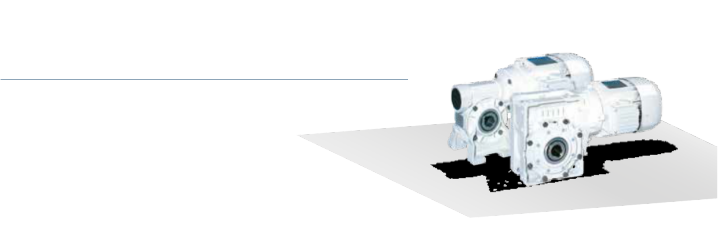

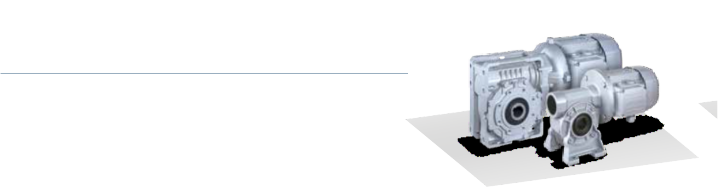

vf W series

Bonfiglioli Worm gearmotors


A smart design enhanced by latest materials technology and advanced manufacturing.

Wormgears of the VF and W series are milestones for the industry worldwide.

They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness.


Absolute flexibility is achieved by the wide choice of mounting options, shaft configurations and motor interfaces, all offered as standard. The helical-worm and the double-worm versions, with or without the torque limiter, also enhance a highly versatile drive system.


Torque range

13 ... 7100 Nm


Type Torque [Nm]


1

Mechanical rating (n = 1400 min-1)

0.04 ... 75 kW


Gear ratios

7 ... 10000


Output

Keyed hollow shaft

Plug-in solid output shaft Torque limiter as an option


Input

IEC-normalized motor adaptors Solid input shaft


Applicable AC motors

Integral motors and brake motors - M series / ME series

IEC-normalized motors and brake motors - BN series / BE series Single and dual speed motors


Main brake features

DC and AC supply

Faster brake engage/disengage through electronically Controlled AC/DC rectifier type SB, NBR, SBR (options)


Main motor options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder


VF 27

VF 30

VF 44

VF 49

W 63

W 75

W 86

W 110

VF 130

VF 150

VF 185

VF 210

VF 250

13

24

55

88

190

320

440

830

1500

2000


3600


5000

7100

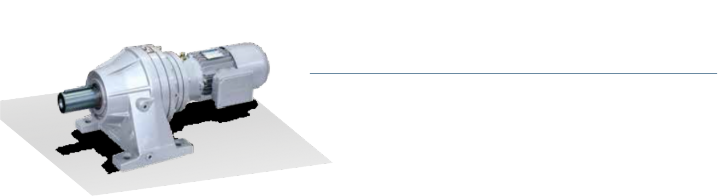

300 series

Planetary gearmotors


A powerful solution to heavy duty drive needs.

Compact, and yet extremely powerful, are the units of the 300 series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loadings and impacts are more the rule than the exception. The product configuration is highly versatile, due to the largely modular options of mounting, gear layout, output shafts and motor interfaces. All features are available for each of the 20 closely spaced frame sizes, spanning over the 1250 - 1286700 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.



Type Torque [Nm]


Torque range

1250 ... 1286000 Nm


1

Mechanical rating (n = 1500 min-1)

300

1250

301

2460

303

2970

304

3960

305

5800

306

10840

307

15680

309

23240

310

34120

311

48330

313

57970

314

84000

315

105000

316

138820

317

208110

318

280580

319

476410

321

655740

323

890310

325

1286000

up to 450 kW


Gear ratios

3.4 ... 5234


Gear unit versions

In line

Right angle (with Gleason bevel gear set)


Output

Foot and flange mounted

Output shaft: keyed solid, splined, splined hollow, hollow shaft with shrink disc


Input

IEC and NEMA motor adaptors

Solid input shaft with or without fan cooling - inch or metric dims.


Applicable AC motors

Integral motors and brake motors - M series / ME series

IEC-normalized motors and brake motors - BN series / BE series Single and dual speed motors


Main brake features

DC and AC supply

Faster brake reaction through electronically controlled rectifier


Main motor options

Thermistors and thermostat sensors Independent forced cooling

Line driver and push-pull incremental encoder

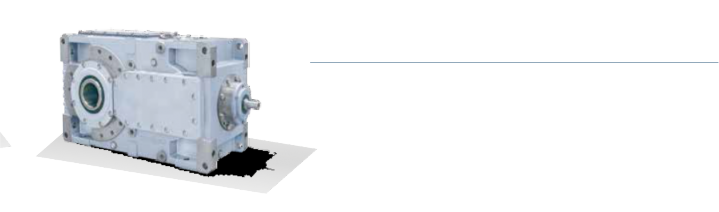

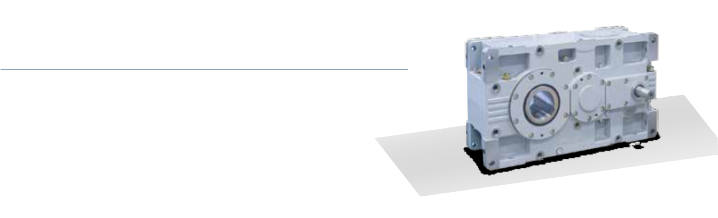

hdP series

Bonfiglioli Parallel shaft gear units


The new benchmark in the parallel shaft category.

High torque ratings, gear ratios in close progression, numerous mounting options, together with compact dimensions will facilitate the engineering of any application.


The housing, made from nodular cast iron ensures robustness even in the harshest environment. State of the art precision ground gears help to produce an extremely quiet and vibration-free product.


Torque range

5000 ... 210000 Nm


Gear ratios

7.1 ... 500


Mounting

Foot, flange, shaft mounting


Input

Solid shaft, motor adapter


Output

Solid (single and double extension), keyed hollow, shrink disc


Options

Fan cooling, cooling coil, heaters Independent cooling systems Backstop

Forced lubrication

Temperature and oil level sensors Drywell

Taconite seals


HDP 60

5190

HDP 70

7080

HDP 80

12600

HDP 90

17900

HDP 100

28200

HDP 110

31700

HDP 120

41000

HDP 125

49000

HDP 130

69500

HDP 140

87000

HDP 150

117000

HDP 160

147000

HDP 170

190000

HDP 180

210000

Type Torque [Nm]



hdo series

Bevel helical gear units


The heavy-duty product that matches performance and versatility with compactness.

The new bevel helical series from Bonfiglioli optimises superior performance with compact dimensions and flexibility. The many standard options that can be selected from the catalogue facilitate customization to meet specific application requirements.

The gear case is nodular cast iron to guarantee rigidity in all circumstances while the gears, using latest profile ground finishing techniques, ensure quiet and vibration-free operation even in the harshest conditions.



HDO 100

28200

HDO 110

31700

HDO 120

41000

HDO 125

49000

HDO 130

69500

HDO 140

87000

HDO 150

117000

HDO 160

147000

HDO 170

190000

HDO 180

210000

Type Torque [Nm]


Torque range

28200 ... 210000 Nm


Gear ratios

5.6 ... 400


Mounting

Foot, flange, shaft mounting


Input

Solid shaft, lantern housing c/w flexible coupling double input shaft (pony drive)


Output

Solid (single and double extension), keyed hollow, shrink disc


Options

Fan cooling, cooling coil, heaters Independent cooling systems Backstop

Forced lubrication

Temperature and oil level sensors Drywell

Taconite seals


ta series

Bonfiglioli Shaft mounted speed reducers




The sturdy and weather-resistant product for the material handling industry.

The TA series is long established, and well respected in industry, especially in quarry and mine applications where absolute reliability and low maintenance are key factors.

Also appreciated is the backstop option that prevents backdriving on inclined conveyors or elevators.


1

Torque range (n = 900 min-1)

150 ... 16000 Nm


1

Mechanical rating (n = 900 min-1)





Type Torque [Nm]

TA 30

150

TA 35

400

TA 40

900

TA 45

1350

TA 50

2100

TA 60

3500

TA 70

4900

TA 80

6600

TA 100

10500

TA 125

16000

1.1 ... 156 kW


Gear ratios

5.0 ... 31.5


Output

Keyed hollow shaft

Up to three bore options per frame size


Gearcase

Sturdy cast iron housing suitable for outdoor installation


Backstop

Available on all frame sizes - externally accessible



ran series

Bevel gears


The handy drive when it comes to angled transmissions.

The units of the RAN series are designed to fit the purposes of transmissions laid out in right angle setting. Easy to fit and largely maintenance-free, RAN units offer multiple shaft arrangements and a choice of several exact gear ratios, beside the 1:1, that come in handy when designing synchronized drive systems. Also available in the version for screw jack duty.



Type Torque [Nm]


Torque range

3 ... 3000 Nm


1

Mechanical rating (n = 1400 min-1)

RAN 1

1350

RAN 2

3000

RAN 2R

3000

0.15 ... 91 kW


Gear ratios

RAN 8

3

RAN 15

8

RAN 18

15

RAN 20

28

RAN 24

80

RAN 25

39

RAN 28

150

RAN 38

300

RAN 48

600

1.0 ... 7.4


Shaft arrangement

Single and double shaft projection


Input

Solid input shaft


RAN 1 / RAN 2 / RAN 2R


194000

Input

Solid - single and double projection Output shaft

Keyed hollow


Gear ratios

i = 3


Rated thrust capacity

RAN 1 50000 N

RAN 2 80000 N RAN 2R 150000 N


W vf_eP series

Bonfiglioli Gearmotors for hostile environments



When multi-purpose products become specific and meet industry requirements. Wormgears and motors are also available in the enhanced protection “EP” configuration, featuring food grade specifications and extra corrosion protection, ensuring risk free operation in hygienic environments, and facilitate effective sanitising. In addition to food processing applications, the EP configuration will also suit the requirements of the chemical and pharmaceutical industry, as well as marine on-board and quayside installations.



Applications

Food processing, chemical and pharmaceutical industry Marine on-board and quayside installations

Corrosive and/or highly hygienic environments


Availability on

Gears: VF 44, VF 49, W 63, W 75, W 86 Motors: BN 63 … BN 112 / M1SD … M3LC


Standard features

Stainless steel hollow shaft

Stainless steel mounting hardware and tag Oil seals loaded with stainless steel spring Sealed gearcase (unvented)

Unused tapped holes closed with button plugs Four draining holes on motor DE and NDE shield Motor protection IP 56


Options

Epoxy primer+epoxy top coating FDA approved Washdown duty oil seals

Food grade lubricant, class H1


Configurations

Foot, flange and shaft mount


Accessories

Plug-in solid output shaft from stainless steel Safety cover for the hollow output shaft Torque arm


VF_EP 27

13

VF_EP 30

24

VF_EP 44

55

VF_EP 49

88

W_EP 63

190

W_EP 75

320

W_EP 86

440

W_EP 110

830

VF_EP 130

1500

VF_EP 150

2000

VF_EP 185

3600

VF_EP 210

5000

VF_EP 250

7100

Type Torque [Nm]


atex series

Gearboxes for explosive environments


Ideal for potentially explosive conditions.

ATEX-compliant gear units in categories 2G and 2D are available, according to the classification set forth by the European Directive 94/9/CE, applying to areas with presence of potentially explosive atmosphere.



C 12

100

C 22

200

C 32

300

C 36

450

C 41

600

C 51

1000

C 61

1600

Type Torque [Nm]




Coaxials series C

Torque range: 100 ... 1600 Nm


Bevel helicals series A

Torque range: 150 ... 2800 Nm


Shaft mounts series F

Torque range: 140 ... 2900 Nm


Worm gears series VF and W

A 10

150

A 20

250

A 30

410

A 35

600

A 41

850

A 50

1500

A 55

2000

A 60

2800

Torque range: 24 ... 830 Nm


Planetaries series 300

Torque range: 1250 ... 1286000 Nm


F 10

140

F 20

250

F 25

400

F 31

600

F 41

1100

F 51

1800

F 60

2900


VF 30

24

VF 44

55

VF 49

88

W 63

190

W 75

320

W 86

440

W 110

830


300

1250

301

2460

303

2970

304

3960

305

5800

306

10840

307

15680

309

23240

310

34120

311

48330

313

57970

314

84000

315

105000

316

138820

317

208110

318

280580

319

476410

321

655740

323

890310

325

1286000


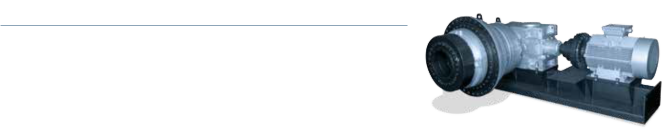

3/h series


Bonfiglioli Combined gearboxes


Performance and technology of the planetary gearboxes with the robustness and reliability of bevel helical gearboxes.


Bonfiglioli’s 3/H gearboxes combine the high technology, performance and efficiency of planetary gearboxes with the robustness, quality and reliability of bevel helical gearboxes. These planetary/bevel helical combination gear boxes deliver the high transmissible torque of Bonfiglioli planetary 300 Series along with the excellent power transmission characteristics of bevel helical HDO Series and are ideal for applications that demand high power density along with medium-low output speeds.


Torque range

98000 ... 1200000 Nm


Gear ratios

1:100 ... 1:1000


Rated power

up to 980 kW


Reference torque

up to 1200 kNm


Output versions

Solid cylindrical shaft Solid shaft with keyway

Solid shaft with supporting feet

Solid shaft with keyway and supporting feet Hollow shaft with shrink disc

Hhollow shaft with keyway


Input versions

Single sided cylindrical shaft

Flange with motor coupling bell and intermediary elastic joint between the cylindrical shafts of the motor and gearbox.


Mounting position Horizontal input shaft Vertical input shaft


Shaft arrangement

Depending on the needs of the application, 3/HDO combination gearboxes can be supplied with output shafts on the left or right side.


Options & Accessories

  • Auxiliary thermal devices

  • Forced lubrication

  • Backstop device


3/HDO 15

98000

3/HDO 16

130000

3/HDO 17

175000

3/HDO 18

260000

3/HDO 19

440000

3/HDO 21

615000

3/HDO 23

830000

3/HDO 25

1200000

Type Torque [Nm]





Type Torque [Nm]


hdPe series

Extruder gearbox




The new benchmark in the parallel shaft category.

The HDPE Extruder gearbox series is the configuration specifically developed for single- screw extruder drive generated from the renown heavy duty series HDP, with which it shares most of the component parts and gearing.

Mounted forward to the sturdy nodular cast iron case, and housed into a robust extruder support, HDPE units feature a heavy duty spherical roller thrust bearing of series 294…E, exclusively sourced from primary brands.


Torque range

4650 ... 75000 Nm


Gear Ratios

HDP 60

4650

HDP 70

6350

HDP 80

11500

HDP 90

16550

HDP 100

24000

HDP 110

28700

HDP 120

35300

HDP 130

59300

HDP 140

75000

N

7,1 i

125.0 with progression = 1,12


Mounting

Foot


Input

solid shaft, direct motor mounting, lantern housing with flexible coupling


Output shaft

Thrust bearing of various dimension and capacity and hollow shafts of various shapes and dimensions

Standard shaft is keyed hollow to UNI 6604

Mounting dimensions to customer specifications can be provided


Options

Cooling coil, autonomous cooling units, temperature and oil level sensors


lc series

Bonfiglioli Low backlash planetary gearboxes




LC planetary precision gearboxes represent a flexible solution, and economic alternative together with an optimal performance and reliability.


Improved performance as the key to downsizing.

Enhanced performance of our LC precision gearboxes (“P” option) may open up important downsizing options as an option in many applications where previously was impossible to ensure a higher transmissible output torque.

As an additional benefit downsizing lead to an improvement of energy efficiency by selecting a more compact gearbox with higher torque density and reducing significantly the accelerating mass.

Transmissible torque is now improved up to 40%!!!


Torque range

12 ... 450 Nm


Maximum acceleration torque

20 ... 700 Nm


Transmission ratios

3 ... 100


Output configuration

Flange mounting


Input configuration

Wide range of coupling configurations to suit most common servomotors


Maintenance

Lubricated for life


Product Line Up

High Torque Density Option “P” available to extend the product performance Optimal Acceleration and Nominal Torques

Optimal Radial and Axial Load Capacities Designed for Cyclic and Continuous Duty Optimal Torsional Stiffness

Geometrical Backlash less than 6 arcmin Universal design allow any Mounting Orientation





Type Rated torque [Nm]


LC 050

12

LC 070

25

LC 070P

30

LC 090

43

LC 090P

65

LC 120

110

LC 120P

155

LC 155

300

LC 155P

450


LC 050

20

LC 070

35

LC 070P

55

LC 090

80

LC 090P

120

LC 120

190

LC 120P

300

LC 155

450

LC 155P

700

Type Acceleration torque [Nm]


Backlash [arcmin] Standard lower than 12 arcmin Reduced lower than 16 arcmin




Type Rated torque [Nm]


LCK 050

12

LCK 070

25

LCK 070P

30

LCK 090

43

LCK 090P

65

LCK 120

110

LCK 120P

155

LCK 155

300

LCK 155P

450


LCK 050

20

LCK 070

35

LCK 070P

55

LCK 090

80

LCK 090P

120

LCK 120

190

LCK 120P

300

LCK 155

450

LCK 155P

700

Type Acceleration torque [Nm]


lck series

Bonfiglioli Low backlash right-angle gearboxes




LCK replicate in the right angle layout excellent features already typical of the inline products LC series. Right angle layout is the solution to space problems often posed by increasingly compact machines. This serie represent a flexible solution, and economic alternative together with an optimal performance and reliability.


Enhanced performance of our LCK precision gearboxes (“P” option) may open up important downsizing options as an option in many applications where previously was impossible to ensure a higher transmissible output torque.

As an additional benefit downsizing to an improvement of energy efficiency by selecting a more compact gearbox with higher torque density and reducing significantly the accelerating mass.

Transmissible torque is now improved up to 40%!!!


Torque range

10 ... 450 Nm


Maximum acceleration torque

20 ... 700 Nm


Transmission ratios

6 ... 100


Output configuration

Flange mounting


Input configuration

Wide range of coupling configurations to suit most common servomotors


Maintenance

Lubricated for life


Product Line Up

High Torque Density Option “P” available to extend the product performance Optimal Torque Density

Optimal Acceleration and Nominal Torques Optimal Radial and Axial Load Capacities Designed for Cyclic and Continuous Duty Optimal Torsional Stiffness

Geometrical Backlash less than 6 arcmin Universal design allow any Mounting Orientation


Backlash [arcmin]


Standard lower than 6 arcmin


mP series

Bonfiglioli Low backlash planetary gearboxes




MP planetary precision gearboxes are landmark for optimal performance, along with top reliability.

Available in different configuration (with input right angle; with output right angle; and hollow shaft, with solid input shaft), and servo-adapters to comply with most servomotors mechanical interface from the market.


Torque range

20 ... 1000 Nm


Maximum acceleration torque

30 ... 1200 Nm


Transmission ratios

3 ... 1000


Output configuration

Flange mounting


Input configuration

Wide range of coupling configurations to suit most common servomotors


Maintenance

Lubricated for life


Product Line Up

Higher Torque Density

Higher Acceleration and Nominal Torques Higher Radial and Axial Load Capacities Designed for Cyclic and Continuous Duty Higher Torsional Stiffness

Geometrical Backlash less than 10 arcmin

Highest flexibility (low / reduced backlash; standard / reinforced bearings; different constructive version) to match with your specific requirement.





Type Rated torque [Nm]


MP 053

20

MP 060

30

MP 080

70

MP 105

170

MP 130

450

MP 160

700

MP 190

1000


Type Acceleration torque [Nm]


MP 053

30

MP 060

45

MP 080

100

MP 105

250

MP 130

700

MP 160

950

MP 190

1200


Backlash [arcmin] Standard lower than 15 arcmin Reduced lower than 10 arcmin





Type Rated torque [Nm]


TR 053

20

TR 060

30

TR 080

70

TR 105

170

TR 130

450

TR 160

700

TR 190

1000


Type Acceleration torque [Nm]


TR 053

30

TR 060

45

TR 080

100

TR 105

250

TR 130

700

TR 160

950

TR 190

1200


Backlash [arcmin] Standard lower than 5 arcmin Reduced lower than 3 arcmin


tr series

Low backlash planetary gearboxes




TR planetary precision gearboxes are landmark for extremely reduced backlash, optimal performance, silent operation and facilitated motor assembly along with top reliability. Available in different configuration (with input right angle; with output right angle and hollow shaft; with solid input shaft), and servo-adapters to comply with most servomotors mechanical interface from the market.


Torque range

20 ... 1000 Nm


Maximum acceleration torque

30 ... 1200 Nm


Transmission ratios

3 ... 1000


Output configuration

Flange mounting


Input configuration

Wide range of coupling configurations to suit most common servomotors


Maintenance

Lubricated for life


Product Line Up

Higher Torque Density

Higher Acceleration and Nominal Torques Higher Radial and Axial Load Capacities Designed for Cyclic and Continuous Duty Higher Torsional Stiffness

Higher precision due to geometrical backlash less than 3 arcmin Quiet running

Highest flexibility (low / reduced backlash; standard / reinforced bearings; different constructive version) to match with your specific requirement.

Sl series

Low backlash planetary gearboxes

for pulley drives




SL planetary precision gearbox knows no rivals in compactness, efficiency and optimization for timing belt pulley drive systems.

This series is the ideal complement to conveyor belt servo-drives and all other applications needing to combine high precision with ultra-compact size.


Enhanced performance of our SL precision gearboxes (“P” option) may open up important downsizing options as an option in many applications where previously was impossible to ensure a higher transmissible output torque.

As an additional benefit downsizing lead to an improvement of energy efficiency by selecting a more compact gearbox with higher torque density and reducing significantly the accelerating mass.

Transmissible torque is now improved up to 40%!!!


Torque range

25 ... 155 Nm


Maximum acceleration torque

35 ... 300 Nm


Transmission ratios

3 ... 100


Output configuration

Flange mounting


Input configuration

Wide range of coupling configurations to suit most common servomotors


Maintenance

Lubricated for life


Product Line Up

High Torque Density Option “P” available to extend the product performance Higher Acceleration and Nominal Torques

Higher Radial and Axial Load Capacities Designed for Cyclic and Continuous Duty Higher Torsional Stiffness

Geometrical Backlash less than 6 arcmin Optionally available with a timing belt pulley. Quiet running

Universal design allow any mounting orientation





Type Rated torque [Nm]


SL 070

25

SL 070P

30

SL 090

43

SL 090P

65

SL 120

110

SL 120P

155


Type Acceleration torque [Nm]


SL 070

35

SL 070P

55

SL 090

80

SL 090P

120

SL 120

190

SL 120P

300


Backlash [arcmin]

Standard 12

Reduced 6





Type Rated torque [Nm]


KR 010

10

KR 020

24

KR 030

55

KR 040

120


Type Acceleration torque [Nm]


KR 010

14

KR 020

35

KR 030

75

KR 040

170


Backlash [arcmin]


Standard 8


kr series

Bonfiglioli Low backlash right-angle gearboxes




Flexible, efficient economical solution to applications calling for space saving right angle drives with minimal backlash.

Available in different configurations with numerous input and output configuration.


Torque range

3 ... 120 Nm


Maximum acceleration torque

14 ... 170 Nm


Transmission ratios

1, 2, 5


Output configuration

Hollow shaft with keyway

Solid shaft, single or double sided Hollow shaft with shrink disc Mounting flange


Input configuration

Wide range of coupling configurations to suit most common servomotors


Maintenance

Lubricated for life


Product Line Up

Best combination of Dynamics, Compactness and Precision Designed for Cyclic and Continuous Duty

Good Torsional Stiffness

Geometrical Backlash less than 8 arcmin


tq series

Bonfiglioli Low backlash planetary gearboxes




TQ features a higher positioning. Whether torque, robustness, or precision - this attractive product range scores in every category.


Torque range

30 ... 800 Nm


Maximum acceleration torque

45 ... 1200 Nm


Transmission ratios

3 ... 100


Output configuration

Square flange mounting


Input configuration

Wide range of coupling configurations to suit most common servomotors


Maintenance

Lubricated for life


Product Line Up

Outstanding Torque Density

Outstanding Acceleration and Nominal Torques Outstanding Radial and Axial Load Capacities Designed for Cyclic and Continuous Duty Markedly higher Torsional Stiffness

Extremely Geometrical Backlash less than 2 arcmin Quiet running

Universal design allow any mounting orientation





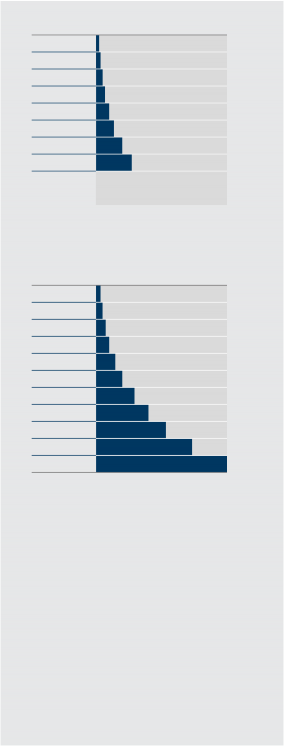

Type Rated torque [Nm]


TQ 060

30

TQ 070

70

TQ 090

200

TQ 130

400

TQ 160

800


Type Acceleration torque [Nm]


TQ 060

45

TQ 070

100

TQ 090

300

TQ 130

600

TQ 160

1200


Backlash [arcmin] Standard lower than 4 arcmin Reduced lower than 2 arcmin





Type Rated torque [Nm]


TQK 060

30

TQK 070

70

TQK 090

200

TQK 130

400

TQK 160

800


Type Acceleration torque [Nm]


TQK 060

45

TQK 070

100

TQK 090

300

TQK 130

600

TQK 160

1200


Backlash [arcmin] Standard lower than 5 arcmin Reduced lower than 4 arcmin


tqk series

Bonfiglioli Low backlash right-angle gearboxes




TQK angular gearbox features a higher positioning like TQ inline serie.

This exceptional gearbox is the solution to space problems often posed by increasingly compact machines.

Whether torque, robustness, or precision - this attractive product range scores in every category.


Torque range

30 ... 800 Nm


Maximum acceleration torque

45 ... 1200 Nm


Transmission ratios

3 ... 100


Output configuration

Square flange mounting


Input configuration

Wide range of coupling configurations to suit most common servomotors


Options

Smooth, keyless output shaft


Maintenance

Lubricated for life


Product Line Up

Outstanding Torque Density

Outstanding Acceleration and Nominal Torques Outstanding Radial and Axial Load Capacities Designed for Cyclic and Continuous Duty Markedly higher Torsional Stiffness

Extremely Geometrical Backlash less than 4 arcmin Quiet running

Universal design allow any mounting orientation



bn/m series

Bonfiglioli AC motors


A complete range of AC motors developed for gearmotor duty that will exceed expectations.


The IEC-normalized BN motors comply with all the applicable international standards, including the EMC and LV Directives. They are available in the 0.06 - 30 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single and multispeed versions available with generally, three brake options offered, one DC and two AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.


kW rating (4 pole)

0.06 ... 30 kW


Frame sizes

56A ... 200L


Pole numbers

2, 4, 6, 8, 2/4, 2/6, 2/8, 2/12, 4/6, 4/8


Mounting options

Foot IM B3

Flange IM B5 and IM B14


Operation

50 Hz and 60 Hz


Compliance

2006/95/EC (LVD) and 2004/108/EC (EMC)


Inverter duty

All frame sizes


Housing

Cast aluminium


Main brake features

DC and AC supply

Faster brake engage/disengage through electronically Controlled AC/DC rectifier type NB, SB, NBR, SBR (options)


Main options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder CSA and UL approved design


BN 56A

0.06

BN 56B

0.09

BN 63A

0.12

BN 63B

0.18

BN 63C

0.25

BN 71A

0.25

BN 71B

0.37

BN 71C

0.55

BN 80A

0.55

BN 80B

0.75

BN 80C

1.1

BN 90S

1.1

BN 90LA

1.5

BN 90LB

1.85

BN 100LA

2.2

BN 100LB

3

BN 112M

4

BN 132S

5.5

BN 132MA

7.5

BN 132MB

9.2

BN 160MR

11

BN 160M

15

BN 180M

18.5

BN 180L

22

BN 200L

30

Type kW rating


be/me series


IE2 AC motors





Class IE2 high efficiency AC motors.

The IEC-normalized BE motors comply with IEC 60034-30:2008 (efficiency classes) and all the applicable international standards, including the EMC and LV Directives.

They are available in the 0.75 - 22 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single version is available

with generally, two brake options offered, one DC and one AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.


IE2



BE 80B

0.75

BE 90S

1.1

BE 90LA

1.5

BE 100LA

2.2

BE 100LB

3

BE 112M

4

BE 132S

5.5

BE 132MA

7.5

BE 132MB

9.2

BE 160M

11

BE 160L

15

BE 180M

18.5

BE 180L

22

Type kW rating


kW rating (4 pole)

0.75 ... 22 kW


Frame sizes

80B ... 180L


Pole numbers

2, 4, 6


Mounting options

Foot IM B3

Flange IM B5 and IM B14


Operation

50 Hz and 60 Hz


Compliance

IEC 60034-30:2008 (IE), 640/2009/EC 2006/95/EC (LVD) and 2004/108/EC (EMC)


Inverter duty

All frame sizes


Housing

Cast aluminium


Main brake features

DC and AC supply

Faster brake engage/disengage through electronically Controlled AC/DC rectifier type NB, SB, NBR, SBR (options)


Main options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder CSA and UL approved design


bx/mx series


Bonfiglioli New IE3 Motors





The release of the new BX/MX motors is a further expression of our sensitiveness to the environment preservation.

The BX/MX motors fulfil the requirements of IE3 efficiency class, according to the international standard IEC 60034-30.

The “X” of the new BX/MX motors stands for “excellence” in efficiency, being IE3 the top efficiency rating currently formalized by global standards.



IE3


Power Range (4 pole)

5.5 ... 22 kW


Frame Sizes

132S ... 180L


Pole Numbers

4


Mounting Options

Foot IM B3

Flange IM B5 and IM B14


Operation

50 Hz


Compliance

IEC 60034-30:2008 (IE),

2006/95/EC (LVD) and 2004/108/EC (EMC)


Inverter Duty

All frame sizes


Housing

Cast aluminium


Main Options

Thermistors and thermostat sensors Separate supply forced ventilation

Line driver and push-pull incremental encoder CSA and UL approved design


BX 132S

5.5

BX 132MA

7.5

BX 160MA

9.2

BX 160MB

11

BX 160L

15

BX 180M

18.5

BX 180L

22

Type kW rating

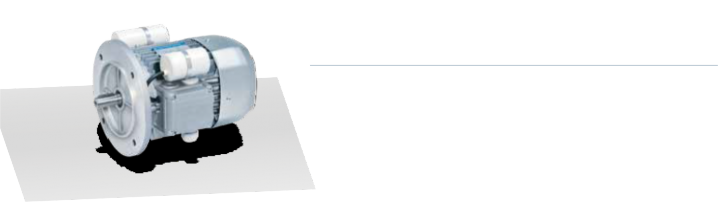

bS series

Single-phase induction motors


A range of motors dedicated to domestic and light workshop duty.

Single-phase motors of the BS series are manufactured to the applicable IEC standards and are of the enclosed type, externally ventilated and with run capacitor permanently connected.

Motors are available in the B5 and B14 flange mountings, in the 4-pole execution.

For applications requiring high starting torque the version with both the run and starting capacitor can be specified.



BS 56A

0.06

BS 56B

0.09

BS 63A

0.12

BS 63B

0.18

BS 71A

0.25

BS 71B

0.37

BS 80A

0.55

BS 80B

0.75

BS 90S

1.1

BS 90L

1.5

Type kW rating


kW ratings

0.06 … 1.5 kW


Frame sizes

56A to 90L


Poles

4


Mounting

Flange mounting IM B5 and IM B14


Frequency

50 and 60 Hz


European norms

2006/95/EC (LVD) and 2004/108/EC (EMC)


Housing

Cast Aluminium


Main options

Starting and run capacitors Bimetal thermal protector Balanced winding



bc series

Bonfiglioli DC motors


A comprehensive range of permanent magnet DC motors.

The BC series of motors are the simple, proven and economical solution to the requirements of DC drives. The materials and the design concepts exploited allow the use of BC motors under the severest duty and with 4-quadrants thyristor converters.


Motors can be operated in the –20 to +40 °C ambient temperature range and are IP54 protected and class F insulated.


Torque range

0.3 ... 4.5 Nm


Speed

1500, 2000, 3000 min-1


Supply

12, 24, 36, 48,65, 110, 180, Vdc


Configurations

IM B5 and IM B14 Flange Mount


Ventilation

BC110 ... BC140 non-ventilated BC220 ... BC310 TEFC


BC 110

0.3

BC 120

0.8

BC 140

1.4

BC 220

0.9

BC 240

1.2

BC 270

2.2

BC 310

4.5

Type Torque [Nm]






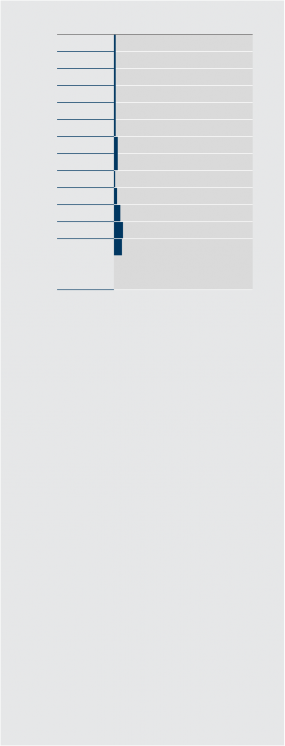

BMD 65 0.85

0.85

BMD 65 1.7

1.7

BMD 65 2.2

2.2

BMD 82 3.2

3.2

BMD 82 4.4

4.4

BMD 102 7.2

7.2

BMD 102 9.6

9.6

BMD 118 10.2

10.2

BMD 118 14

14

BMD 145 16.8

16.8

BMD 145 22

22

BMD 170 34

34

BMD 170 45

45

BMD 160 L

125

Type Torque [Nm]


bmd series

Permanent Magnet AC servomotors




Bonfiglioli Permanent Magnet AC Synchronous motors series.

They are manufactured using the “salient pole” technology. The dimensions of the motor are drastically reduced, with considerable advantages in terms of torque density, overall dimensions and dynamic performance.

Thanks to the high quality and performance of the Neodymium iron boron rare-earth magnets maximize performance in terms of very high accelerations and withstand high overloads without risk of demagnetization of the magnets.


Stall torque

0.85 … 125 Nm


Rated speed

1600; 3000; 4500; 5500; 6000 min-1


Power supply

230, 400 Vac


Conformity

2006/95/EC (LVD) and 2004/108/EC (EMC)


Electromagnetical Holding Brake (Optional)

24 Vdc


Inertia

High acceleration capacity due to lower motor moment of inertia


Additional flywheel (optional)

Excellent behavior with superior load inertia due to the high intrinsec moment of inertia


Feedback

  1. poles resolver with excitation frequency 8 KHz or 10 KHz

    Absolute encoder EnDAT 2.1 (single turn / multiturn) encoder with sincos track Absolute encoder Hiperface (single turn / multiturn) encoder with sincos track Sensorless (no feed-back)


    Degree of protection

    IP65 IP67


    Temperature sensor

    PTC KTY


    Certification

    CE, UL


    btd series

    Bonfiglioli Compact AC brushless servomotors




    A range of compact servomotors.

    BTD Series servomotors are designed to provide effective solutions for applications demanding high efficiency, compact motors.

    The extremely small size of these motors, achieved by the use of advanced materials and design technology, ensures exceptional dynamics and low temperature operation. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMC requirements, and a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connections under a huge variety of operating conditions.


    Stall torque

    0.26 … 27 Nm


    Rated speed

    3000, 4500 min-1


    Power supply

    230, 400 Vac


    Inertia

    High acceleration capacity due to lower motor moment of inertia


    Conformity

    2006/95/EC (LVD) and 2004/108/EC (EMC)


    Electromagnetical Holding Brake (Optional)

    24 Vdc


    Feedback

    2-poles resolver with excitation frequency 5 KHz or 10 KHz

    Absolute encoder EnDAT 2.1 (single turn / multiturn) encoder with sincos track Absolute encoder Hiperface (single turn / multiturn) encoder with sincos track


    Temperature sensor

    PTC


    Certification

    CE, UL




    BTD2 0026

    0.26

    BTD2 0053

    0.53

    BTD2 0074

    0.74

    BTD2 0095

    0.95

    BTD3 0095

    0.95

    BTD3 0190

    1.9

    BTD3 0325

    3.25

    BTD3 0420

    4.2

    BTD4 0410

    4.1

    BTD4 0630

    6.3

    BTD4 0860

    8.6

    BTD5 1160

    11.6

    BTD5 1490

    14.9

    BTD5 1870

    18.7

    BTD5 2730

    27.3

    Type Torque [Nm]




    Type Torque [Nm]


    bcr series

    AC brushless servomotors




    A range of high performance servomotors.

    BCR Series servomotors are designed to satisfy the needs of continuous and transient high torque applications. Thanks to a wide torque range and above average instantaneous overload ratings, BCR servomotors are robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee a secure electrical connection under a huge variety of operating conditions.


    Stall torque

    0.2 … 115 Nm

    (High instantaneous overload)

    BCR2 0020

    BCR2 0040

    BCR2 0060

    BCR2 0080

    BCR3 0065

    BCR3 0130

    BCR3 0250

    BCR3 0300

    BCR4 0100

    BCR4 0260

    BCR4 0530

    BCR4 0750

    BCR5 0660

    0.2

    0.4

    0.6

    0.8

    0.65

    1.3

    2.5

    3

    1

    2.6

    5.3

    7.5

    6.6


    Rated speed

    2000, 3000, 4500 rpm


    Power supply

    230, 400 Vac


    Inertia

    High acceleration capacity due to lower motor moment of inertia


    Conformity

    2006/95/EC (LVD) and 2004/108/EC (EMC)


    Electromagnetical Holding Brake (Optional)

    Optional 24 Vdc


    BCR5 1050

    10.5

    Feedback

    2-poles resolver with excitation frequency 5 KHz or 10 KHz

    BCR5 1350

    BCR5 1700

    13.5

    17

    Absolute encoder EnDAT 2.1 (single turn / multiturn) encoder with sincos track Absolute encoder Hiperface (single turn / multiturn) encoder with sincos track

    BCR5 2200

    22

    BCR6 1350

    13.5

    Temperature sensor

    PTC

    BCR6 1900

    19

    BCR6 2200

    22

    Certification

    BCR6 2900

    29

    CE, UL

    BCR7 2700

    27

    BCR7 3200

    32

    BCR7 4000

    40

    BCR8 0400

    40

    BCR8 0680

    68

    BCR8 0930

    93

    BCR8 1150

    115


    agile series

    Bonfiglioli Inverter




    Innovative, eco-friendly, user-friendly.

    Agile series provide in a sensorless vector inverter innovations able to boost plant efficiency through open loop vector control of brushless motors and MMC memory cards. Agile inverters are easy to install, program and quick to start-up without the needs of specialized resources.


    Power range (AGL402)

    0.25 ... 11 kW / three-phase 320-530V / 50-60 Hz (± 10%)





    Type Power kW

    Power range (AGL202)

    0.12 ... 3 kW / single phase 200-240V / 50-60 Hz (± 10%)

    0.25 ... 7.5 kW / three-phase 200-240V / 50-60 Hz (± 10%)


    Motor compatibility Two types of motor: Asynchronous AC motors

    Permanent magnet synchronous (brushless) motors


    Type of control

    Selectable control function:

    V/f control for asynchronous motors

    Sensor-less vector control for asynchronous motors Sensor-less vector control for brushless motors

    Degree of protection

    IP20 (EN 60529)


    Main hardware features

    Power supply from common DC bus


    AGL402-18

    4.0

    AGL402-19

    5.5

    AGL402-21

    7.5

    AGL402-22

    9.2

    AGL402-23

    11

    AGL402-02 AGL402-03 AGL402-05 AGL402-07 AGL402-09 AGL402-11 AGL402-13 AGL402-15

    0.25

    0.37

    0.55

    0.75

    1.1

    1.5

    2.2

    3.0

    Integrated braking module

    Short circuit / ground fault protection


    Type Power kW (3ph)

    Integrated Safe Torque Off safety system Plug-in and programmable control terminals 6 digital inputs, 2 multifunctional A/D inputs 1 multifunctional I/O, 1 digital output

    1 multifunctional A/D/pulse output, 1 relay output (alarm) available power outputs: +24 V DC, +10 V DC

    optional separate 24 V DC electronic power supply standard serial interfaces: RS232, RS485, Systembus Integrated Modbus

    Optional expansion modules

    Resource Pack memory card


    Optional communication modules

    PROFIBUS-DPV1, CANopen, RS232, RS485, DeviceNet, EtherCAT®, PROFINET, VABus/

    TCP*, Modbus TCP*, EtherNet I/P

    AGL202-02 AGL202-03 AGL202-05 AGL202-07 AGL202-09 AGL202-11 AGL202-13 AGL202-15 AGL202-18 AGL202-19 AGL202-21

    0.25

    0.37

    0.55

    0.75

    1.1

    1.5

    2.2

    3.0


    4.0


    5.5

    7.5


    PC software

    VPlus suite


    Main software features

    Permanent motor tuning

    Selective Multi-Motor Control (SMMC) Energy saving function

    Ready to use application masks Integrated maintenance wizard Alarm history

    Motor and inverter state memory Autodiagnostics

    Integrated PLC function with graphic development environment Integrated oscilloscope function

    Customisable units of measurement


    (*) Optional 2 ports.

    AGL202-02

    0.12

    AGL202-03

    0.18

    AGL202-05

    0.25

    AGL202-07

    0.37

    AGL202-09

    0.55

    AGL202-11

    0.75

    AGL202-13

    1.1

    AGL202-15

    1.5

    AGL202-18

    2.2

    AGL202-19

    3

    AGL202-21

    3

    Type Power kW (1ph)





    ACT401-05

    0.55

    ACT401-07

    0.75

    ACT401-09

    1.1

    ACT401-11

    1.5

    ACT401-12

    1.85

    ACT401-13

    2.2

    ACT401-15

    3.0

    ACT401-18

    4.0

    ACT401-19

    5.5

    ACT401-21

    7.5

    ACT401-22

    9.2

    Type Power kW


    active series

    Bonfiglioli Solution Drive




    Versatility, rating, performances.

    A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.


    Power range (ACT401)

    0.55 ... 132 kW / three-phase 360-480V / 50-60 Hz (± 10%)


    Power range (ACT201)

    0.55 ... 9.2 kW / single or three-phase 200-240V / 50-60 Hz (± 10%)


    Type of control

    Selectable Vector control function:

    sensor-less control, sensor-less field oriented control, field oriented control with encoder


    Overload capacity

    150% for 60s / 200% for 1s


    Switching frequency

    2, 4, 8, 12, 16 kHz


    Enclosure

    IP20 (EN 60529)


    ACT401-23

    11

    ACT401-25

    15

    ACT401-27

    18.5

    ACT401-29

    22

    ACT401-31

    30

    ACT401-33

    37

    ACT401-35

    45

    ACT401-37

    55

    ACT401-39

    65

    ACT401-43

    75

    ACT401-45

    90

    ACT401-47

    110

    ACT401-49

    132

    EMC filter

    Integrated up to 9.2 kW (EN 61800-3)


    Main standard hardware features

    Integrated dynamic braking module, DC link connection, Standard encoder interface, Motor temperature monitoring, Plug-in power terminals (up to 3kW), Plug-in and programmable control terminals, 6 digital input, 1 multifunction input, 1 digital output, 1 multifunction Output, 1 relay output (changeover contact)


    Optional expansion modules

    Expansion of analog, digital inputs and outputs, additional encoder or resolver input, repetition frequency output, System bus


    Optional communication modules

    RS232, RS485, PROFIBUS-DP, CANopen


    Optional keypad

    ACT201-05

    0.55

    ACT201-07

    0.75

    ACT201-09

    1.1

    ACT201-11

    1.5

    ACT201-13

    2.2

    ACT201-15

    3.0

    ACT201-18

    4.0

    ACT201-19

    5.5

    ACT201-21

    7.5

    ACT201-22

    9.2

    Removable keypad KP500 with copy function, Cabinet mounting kit and handheld for keypad


    Optional PC software

    VPlus for Windows operating system with set-up, terminal monitor, actual value window, scope function and teleservice


    Main software features

    Programmable reference value channel, Programmable start and stop characteristics, Motor potentiometer, Programmable S curve, 4 data sets, Auto start-up and commissioning, Auto reset after failure, Auto start after power failure, PI controller, Programmable logic and timer functions, Volume flow control, Bump-less torque / speed changeover, Master / Slave function with electronic gear, Enhanced positioning function, Mechanical brake control free of friction, Index and stability control, Intelligent current limits, Power failure regulation, Comprehensive monitoring and protection capabilities, High speed control, Function for lift, crane and winch applications, 3 different brake Management Functions.


    active cube series

    Bonfiglioli Solution & Servo Drive




    Versatility, promptness, accuracy.

    A full series of solution & servo drives, compact and flexible, dedicated both to high demanding industrial automation systems and to speed and positioning control architectures, all matched with Bonfiglioli servomotors.


    Power range (ACU401)

    0.25 ... 132 kW / three-phase 360 ... 480V / 50-60 Hz (± 10%)


    Power range (ACU201)

    0.25 ... 9.2 kW / single or three-phase 200 ... 240V / 50-60 Hz (± 10%)


    Type of control

    Selectable Vector control function: sensor-less control, sensor-less field oriented control, field oriented control with speed sensor, field oriented control of synchronous servomotors with speed/position sensor

    Overload capacity

    200% for 1min (size 01 and 03) / 150% for 1min (other ratings), Shorter overload: 200% for 1sec all ratings

    Switching frequency

    2, 4, 8, 12, 16 kHz


    Enclosure

    IP20 (EN 60529)


    EMC filter

    Integrated up to 9.2 kW (EN 61800-3)


    Main standard hardware features SIL2

    Integrated safe torque off function, External 24Vdc supply for control board and electronics, Integrated dynamic braking module, DC link connection, Standard encoders interface, Resolver module for feedback acquisition from Bonfiglioli servomotors, Motor temperature monitoring, Plug-in power terminals (up to 3kW), Plug-in and programmable control terminals 6 digital input, 1 multifunction input, 1 digital output, 1 multifunction, Output, 1 relay output (changeover contact)

    Optional expansion modules

    Expansion of analog, digital inputs and outputs, additional encoder or resolver input and SinCos, Hiperface or EnDat 2.1 Encoder, repetition frequency output, System bus

    Optional communication modules

    PROFIBUS-DPV1, CANopen, RS232, RS485, DeviceNet, EtherCAT®, PROFINET, VABus/TCP*,

    Modbus TCP*, EtherNet I/P


    Optional keypad

    Removable keypad KP500 with copy function, Cabinet mounting kit and handheld for keypad


    ACU201-01

    0.25

    ACU201-03

    0.37

    ACU201-05

    0.55

    ACU201-07

    0.75

    ACU201-09

    1.1

    ACU201-11

    1.5

    ACU201-13

    2.2

    ACU201-15

    3.0

    ACU201-18

    4.0

    ACU201-19

    5.5

    ACU201-21

    7.5

    ACU201-22

    9.2

    PC software VPlus

    Vplus software provides a common programming and monitoring platform for all Bonfiglioli inverter drives. Easy programming interface with real time oscilloscope. A simple and guided procedure for set up with Bonfiglioli Motors. Logic functions programming. Teleservice.

    Main software features

    32 Programmable Motion blocks, 36 Homing functions according to CANopen DSP4.02, Unit converter, Jog function, Absolute and relative positioning modes, Touch probe, Teach- In functions, Rotary table control, Programmable reference value channel, Programmable start and stop characteristics, Motor potentiometer, Programmable S curve, 4 data sets, Auto start-up and commissioning, Auto reset after failure, Auto start after power failure, PI controller, Programmable logic and timer functions, Bump less torque / speed changeover, Master / Slave function with electronic gear, Index and stability control, Intelligent current limits, Power failure regulation, Comprehensive monitoring and protection capabilities, High speed control, Function for lift, crane and winch applications, 3 different brake Management

    Functions. Advanced application functions: advanced brake release control, spindle control up to 1000Hz, traverse function for winders, Volume flow control, load evaluation.


    (*) Optional 2 ports.





    ACU401-01

    0.25

    ACU401-03

    0.37

    ACU401-05

    0.55

    ACU401-07

    0.75

    ACU401-09

    1.1

    ACU401-11

    1.5

    ACU401-12

    1.85

    ACU401-13

    2.2

    ACU401-15

    3.0

    ACU401-18

    4.0

    ACU401-19

    5.5

    ACU401-21

    7.5

    ACU401-22

    9.2

    ACU401-23

    11

    ACU401-25

    15

    ACU401-27

    18.5

    ACU401-29

    22

    ACU401-31

    30

    ACU401-33

    37

    ACU401-35

    45

    ACU401-37

    55

    ACU401-39

    65

    ACU401-43

    75

    ACU401-45

    90

    ACU401-47

    110

    ACU401-49

    132

    Type Power kW




    Type Power kW


    ACU401-51

    160

    ACU401-53

    200

    ACU401-55

    250

    ACU401-57

    315

    ACU401-59

    355

    ACU401-61

    400


    Rated voltage: 400V


    Type Power kW


    ACU601-51

    160

    ACU601-53

    200

    ACU601-55

    250

    ACU601-57

    315

    ACU601-59

    355

    ACU601-61

    400


    Rated voltage: 690V


    active cube series - Size 8

    Bonfiglioli Solution & Servo Drive




    Energy efficient, versatile and compact.

    A full series of solution & servo drives, compact and flexible, dedicated both to high demanding industrial automation systems and to motion control architectures, prepared to operate energy efficient synchronous and asynchronous motors with and without speed sensor.


    Power range (ACU401)

    160 ... 400 kW / three-phase 380 V (-15%) ... 480 V (+10%) / 50 - 60 Hz (± 10%)


    Power range (ACU601)

    160 ... 400 kW / three-phase 500 ... 690 V (±10%) / 50 - 60 Hz (± 10%)


    Type of control

    Selectable Vector control function: sensor-less control, sensor-less field oriented control, field oriented control with speed sensor, field oriented control of synchronous servomotors with speed/position sensor

    Overload capacity

    150% for 1min

    Shorter overload: 180% for 1sec all ratings


    Switching frequency

    2, 4, 8 kHz


    Enclosure

    IP20 (EN 60529)


    EMC filter

    External filter


    Main standard hardware features SIL2

    Integrated safe torque off function, External 24Vdc supply for control board and electronics, Integrated dynamic braking module, DC link connection, Standard encoders interface, Resolver module for feedback acquisition from Bonfiglioli servomotors, Motor temperature monitoring, Plug-in power terminals (up to 3kW), Plug-in and programmable control terminals 6 digital input, 1 multifunction input, 1 digital output, 1 multifunction, Output, 1 relay output (changeover contact), 1 additional relais for external precharge, possibility for a 3-level-concept, possibility for a 12-pulse-rectifire-concept

    Optional expansion modules

    Expansion of analog, digital inputs and outputs, additional encoder or resolver input and sincos encoder, repetition frequency output, System bus

    Optional communication modules

    Profibus-DP, CANopen, RS232, RS485, DeviceNet, EtherCAT®, ProfiNet, Ethernet VA BUS TCP


    Optional keypad

    Removable keypad KP500 with copy function, Cabinet mounting kit and handheld for keypad


    PC software VPlus

    Vplus software provides a common programming and monitoring platform for all Bonfiglioli inverter drives. Easy programming interface with real time oscilloscope. A simple and guided procedure for set up with Bonfiglioli Motors. Logic functions programming. Teleservice.

    Main software features

    32 Programmable Motion blocks, 36 Homing functions according to CANopen DSP4.02, Unit converter, Jog function, Absolute and relative positioning modes, Touch probe, Teach-In functions, Rotary table control, Programmable reference value channel, Programmable start and stop characteristics, Motor potentiometer, Programmable S curve, 4 data sets, Auto start- up and commissioning, Auto reset after failure, Auto start after power failure, PI controller, Programmable logic and timer functions, Bump less torque / speed changeover, Master / Slave function with electronic gear, Index and stability control, Intelligent current limits, Power failure regulation, Comprehensive monitoring and protection capabilities, High speed control, Function for lift, crane and winch applications, 3 different brake Management Functions. Advanced application functions: advanced brake release control, spindle control up to 500Hz, traverse function for winders, Volume flow control, load evaluation.


    vcb series

    Bonfiglioli Inverter




    Convenient in operation and flexible in application.

    Reliable, highly compact and a robust choice for any application, this inverter with high- level functions soundly meets the requirements of a constantly evolving market.


    Power range (VCB400)

    132 ... 800 kW / three-phase 320-506V / 45-66 Hz


    Type of control

    Selectable Vector control function:

    Sensor-less control, sensor-less field oriented control, Field oriented control with encoder


    Overload capacity

    120% / 150% for 60s


    Switching frequency

    1. kHz up to 4 kHz


      Enclosure

      IP20 up to 355 kW (EN 60529) / IP54 on demand


      Main standard hardware features

      Three-phase 230 V and three-phase 500 V on demand

      DC link connection, Plug-in and programmable control terminals 8 digital input, 3 analog input

    2. digital output, 1 analog output

    1 Relay output (changeover contact)


    Optional expansion modules

    Motor temperature monitoring, expansion of analog, digital inputs and outputs, additional encoder or resolver input, repetition frequency output, Safety relay in combination with expansion module


    Optional communication modules

    RS232, RS485, PROFIBUS-DP, CANopen, LON


    Optional keypad

    Removable keypad KP100


    Optional PC software

    VPlus for Windows operating system with set-up, terminal monitor, actual value window, scope function and teleservice


    Main software features

    Programmable reference value channel, Programmable start and stop characteristics, Motor potentiometer, Programmable S curve, 4 data sets, Auto start-up and commissioning, Auto start after power failure, PI controller, Volume flow control, Bump- less torque / speed changeover, Master / Slave function with electronic gear, Dynamic braking and motor chopper, Mechanical brake control free of friction, Intelligent current limits, Power failure regulation, Index and stability control, Comprehensive monitoring and protection capabilities, Function for lift, crane and winch applications





    VCB400-250

    132

    VCB400-300

    160

    VCB400-370

    200

    VCB400-460

    250

    VCB400-570

    315

    VCB400-610

    355

    Type Power kW





    S2U230S-02

    0.20

    S2U230S-03

    0.40

    S2U230S-07

    0.75

    S2U230S-11

    1.5

    S2U230S-13

    2.2

    Type Power kW


    S2u series

    Bonfiglioli Variable Frequency Drive




    The Ideal drive for your lean application projects.

    Intuitive and simple, but powerful and effective.

    S2U is the Bonfiglioli Vectron compact Inverter for efficient speed and torque control of electric motors, up to 2.2kW.

    The simple installation and use, together with connectivity and outstanding range of functions, make it the the perfect drive for the control of those applications where productivity and short time to market are critical.


    Power range

    0.20 ... 2.2 kW / single-phase 200-240V / 50-60 Hz (+10, -15%)


    Type of control

    V/F control with automatic torque compensation function


    Overload capacity

    150% for 60s


    Switching frequency

    1-16 kHz


    Enclosure

    IP20


    EMC filter

    Integrated Class C2 filter


    Main standard hardware features

    5 models In 2 frame sizes

    2 Analog Input (0-10V and 0-20 or 4-20mA) 5 Digital Input (programmable multifunction)

    1 Analog Output (programmable multifunction). 1 Relay output (programmable multifunction).

    1. RJ45 terminal for communication with PC.


      Keypad

      Built-in standard keypad with potentiometer


      Main functions

      100% configuration compatibility with Bonfiglioli Synthesis series Selectable auto re-start after power loss

    2. acc/dec times - 4 S curves available Overload detection

    PID control Torque boost Stall prevention

    Motor temperature protection Heat sink overheat protection Selectable stop method

    JOG frequency Alarm history

    Short power loss override Output Short-Circuit protection DC injection braking.

    Auto sequencer. 8 preset speeds and 8 preset times. Momentary power loss start

    Auot restart after fault. 10 attempts. Direct start on Power up

    Parameter access lock



    bmI series

    Bonfiglioli Human Machine Interfaces




    Human Machine Interface solution suitable for any environment.

    The new Bonfiglioli Human Machine Interface series offers high performance and quality at affordable price. In combination with PLC functionality integrated in Inverters of Agile and Active Cube Series Bonfiglioli offers a high performance and cost effective solution for many applications which can be controlled directly by drives functionality without need of PLC.



    Key Features

    • 3 Display sizes – 3.5”, 7” and 10”

    • Robust ABS plastic chassis

    • True Flat front panel in IP65

    • High resolution 480 x 272 up to 1024 x 600 Pixels

    • 65.536 Colours

    • Ethernet communication port as standard

    • Optional Field bus communications for IT series


      Applications

    • Textile

    • Cranes

    • Wood

    • Material Handling

    • Packaging

    • Paper

    • Plastic

    • Energy

Ask for a free quotation – We are at your disposal

Call us at +39 080.5367090 or send an email to info@tecnicaindustriale.com

Request for quotation
Tecnica Industriale Srl
Tecnica Industriale has been carrying on successfully its trade activity for over 50 years and today it represents a landmark for the europe.
Thanks to its research activity and selection of reliable and qualified producers is the perfect partner in service of industry.
Read more
Latest News
  • Switchboards for industrial automation
    9 December 2016
  • Chiorino X-WELD – Unique innovative thermoweldable multilayer covering
    4 October 2016
  • New Brevini E series planetary gear units
    30 September 2016
  • New website responsive
    19 September 2016
Newsletter sign up
You've already signed up, Thanks!
Check your inbox / spam folder now to confirm your subscription.

Company Info
  • Headquarter
    S.P. 231 Km 1,110 - 70026
    Modugno (Ba) - Italy
  • Telephone / Fax
    +39 0805367090 / +39 0805367091
  • E-mail
    info@tecnicaindustriale.com

Find us on:

FacebookTwitterGoogle+YouTubeFlickr
© 2016 - Tecnica Industriale Srl - P.Iva 00324840727 - all rights reserved - created by www.omnilink.it
  • Sitemap
    • Brands sitemap
    • Categories sitemap
    • Applications sitemap
    • Worldwide sitemap
    • Industrial Supplies
      • Catalogues
        • Abb medium voltage ac drives
        • Arpex all steel coupling
        • Asepco valves
        • Brevini catalogues
        • Brevini gearboxes
        • Catalogues chiorino
        • Catalogues comintec
        • Catalogues gearboxes
        • Catalogues italvibras
        • Catalogues rexnord marbett
        • Catalogues rosta
        • Siemens catalogues
      • Gearboxes
        • Bevel gear pairs
        • Bevel helical gearboxes
        • Bevel helical gearboxes bh series
        • Bevel helical gearboxes ot series
        • Bevel helical speed reducer
        • Bipex claw coupling
        • Rotary valves
        • Bredel apex hose pumps
        • Brevini planetary gearboxes
      • Motors
        • ac dc servo motors
        • Automatic tighteners
        • Baldor ac controls
        • Basic performance converter sinamics v
        • Bearings for screw drives
        • Cemp flameproof motors
        • Dodge bearings
      • Rexnord Marbett
        • Rexnord FlatTop chains
        • Rexnord Marbett roller guides
        • Rexnord Marbett components for beverage
        • Rexnord Marbett power transmission
      • Sew Eurodrive
      • Chiaravalli
        • Chiaravalli belts
        • Chiaravalli bevel gear pairs
        • Chiaravalli couplings
        • Chiaravalli electric motors
        • Chiaravalli gearboxes
        • Catalogues chiaravalli
        • Chiaravalli ball bearings
      • Applications
        • Sew eurodrive gearboxes
        • Nord electric motors
        • Motovario gear reducers
        • Helical gearboxes
        • Gearmotors and frequency inverters
        • Dodge gear reducers
Sitemap
