Innomotics converters with SINAMICS medium voltage drives provide a blend of flexibility and high performance. Engineered for motor voltages ranging from 1.4 to 13.8 kV and power ratings spanning 150 kW to 85 MW, these drives ensure top-tier reliability, extended service life, and exceptional quality. For guidance in selecting the ideal drive for your needs, do not hesitate to contact us.

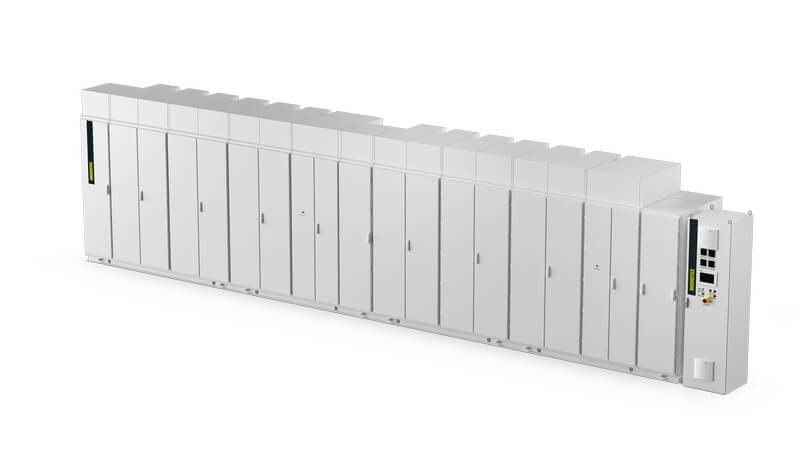

Multi-cell voltage source inverter featuring M2C technology (M2C VSI)
Power range
Air cooling: 4 – 35 MVA
Water cooling: 4 – 47.6 MVA
Input section: 2Q (DFE)
Output voltage
4.16 – 13.8 kV (air cooling)
4.16 – 11 kV (water cooling)

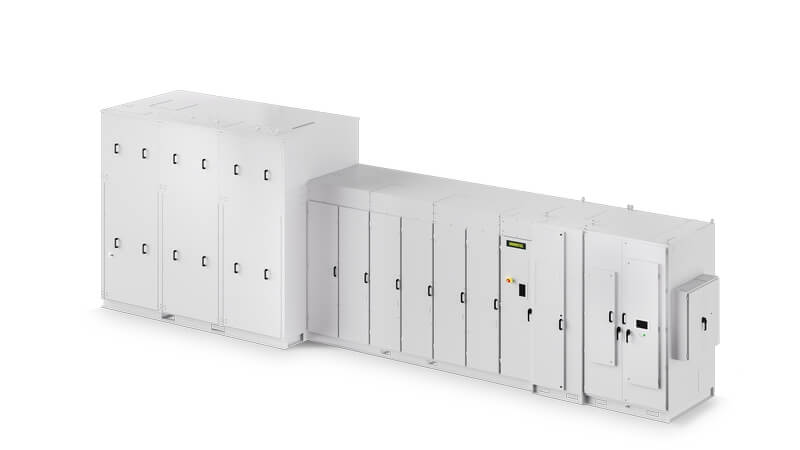

Multi-cell voltage source inverter featuring SINAMICS PERFECT HARMONY technology (PH VSI)
Power range
Air cooling: up – 10 MVA
Water cooling: up – 24.4 MVA
Input section
Air cooling: 2Q (DFE)
Water cooling: 2Q (DFE) and w / partial recharge
Output voltage
Air cooling: 2.3 – 11 kV
Water cooling: 4.0 – 11 kV
Multi-cell voltage source inverter with active front end (AFE) featuring M2C technology
Power range: 4 – 32 MVA
Input section: 2Q (DFE) or 4Q (AFE)
Output voltage: 3.3 – 11 kV
Voltage source inverter with 3-level NPC and Diode Front End (DFE-VSI)
Power range
Air cooling: 1 – 10.1 MVA
Water cooling: 2 – 24 MVA
Input section: 2Q (DFE)
Output voltage: 2.3 – 4.16 kV
Voltage source inverter with 3-level NPC and Active Front End (AFE-VSI)
Power range
Air cooling: 3.4 – 5.8 MVA
Water cooling: 4.6 – 31.5 MVA
Input section: 4Q (AFE)
Output voltage: 3.3 kV, 4.16 (IGBT only)
Multi Motor Operation
Current Source inverter with load-commutated inverter technology (LCI)
Power range
Air cooling: 1.4 – 30 MVA
Water cooling: 6 – 85 MVA (higher on request)
Input section: 4Q
Output voltage: 1.4 – 10.3 kV
Cycloconverter (CC)
Power range
Air cooling: 2.9 – 18.8 MVA
Water cooling: 12 – 40 MVA
Input section: 4Q
Output voltage: 1.5 – 4 kV
