MOVITRAC LTE-B basic inverters
MOVITRAC LTE-B in IP66
Line connection / power range kW
– 115 V / 1-phase: 0.37 – 1.1
– 230 V / 1-phase: 0.37 – 4.0
– 230 V / 3-phase: 1.5 – 4.0
– 400 V / 3-phase: 0.75 – 11.0
Ú More information on MOVITRAC LTE-B in IP20: Page 206

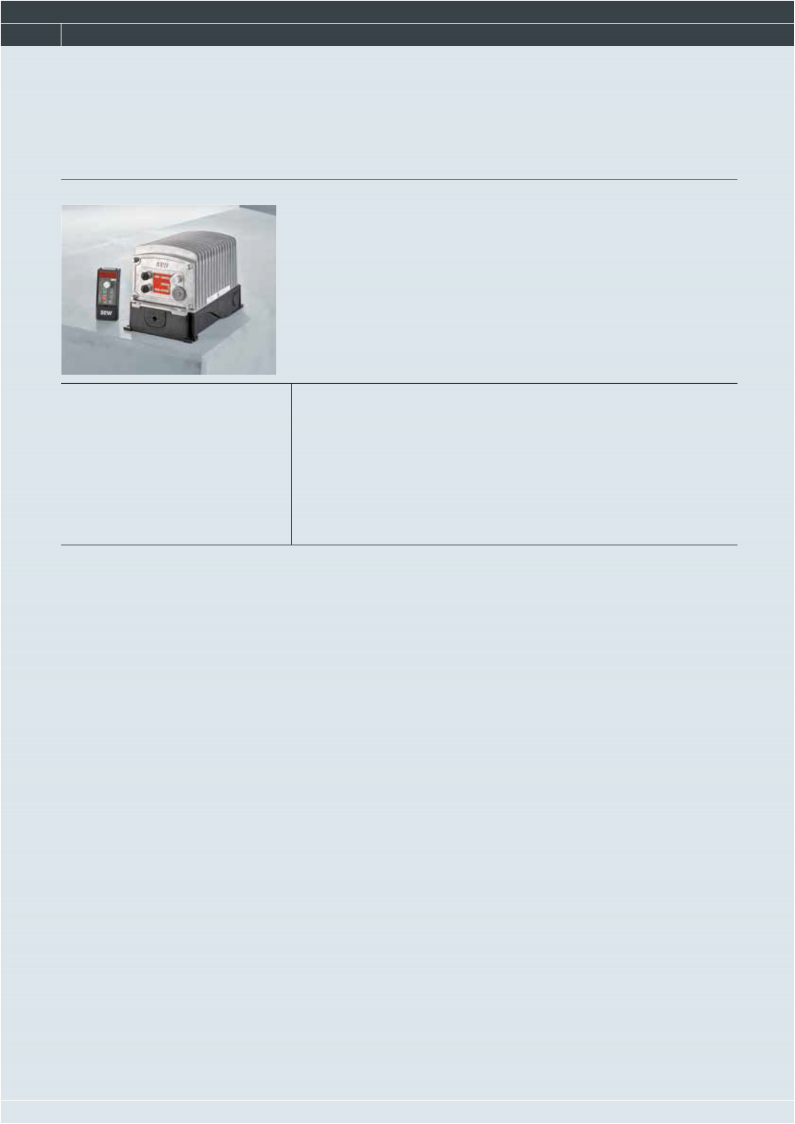

MOVITRAC LTP-B standard inverters
MOVITRAC LTP-B in IP55
Line connection / power range kW | – 230 V / 1-phase: 0.75 – 2.2 – 230 V / 3-phase: 0.75 – 75 – 400 V / 3-phase: 0.75 – 160 – 575 V / 3-phase: 0.75 – 110 |
Features | – Flexible, simple and safe – Standard design in degree of protection IP55 (size 4 to 7) / NEMA 12k housing for wall mounting – Optionally also available in degree of protection IP20/NEMA for control cabinet installation – Control of synchronous and asynchronous motors without encoder (V/f, VFC, VFC torque) |
Configuration | – NEW: OLED full text display – Keypad for easy startup – Overload capacity up to 175% – Integrated EMC filter for AC 230 V and AC 400 V design – Analog and digital interfaces, PID controller – NEW: KTY, motor protection function Pt1000 – Fieldbus connection directly via CANopen/SBus or via gateway / PLC / option card – Safe Torque Off (STO) according to EN ISO 13849-1 PL d – Approved in accordance with UL508, C22.2 no. 14 |
MOVITRAC LTP-B standard inverters
Options
LT BG OLED A | Remote OLED full text keypad in IP54 |
LT BG-C | Remote keypad in IP54 |
LT BP-C | Bluetooth parameter module (parameterization, data backup) |
USB11A | Interface adapter for connection to a PC via USB interface |
LT OP.. | Cable sets for direct interface connection |
DFx.. /UOH.. | Gateways for connecting fieldbuses in the control cabinet |
LT FP / LT FD / LT FB / LT FE | Option cards for direct connection of single inverters to fieldbuses |
LT OB EN.. | Option cards for connection of HTL and TTL encoders |
LT OB 3ROUT A | Relay option card |
LT OB IO A | Additional I/O option card |
BW.. | Braking resistors |
ND LT.. | Line chokes |
NF LT.. | Line filters |
HD LT.. | Output chokes |
LT SB 23 A | Shield terminal for IP20 / NEMA-1 housing |
06
6.3 Decentralized installation: Motor starters

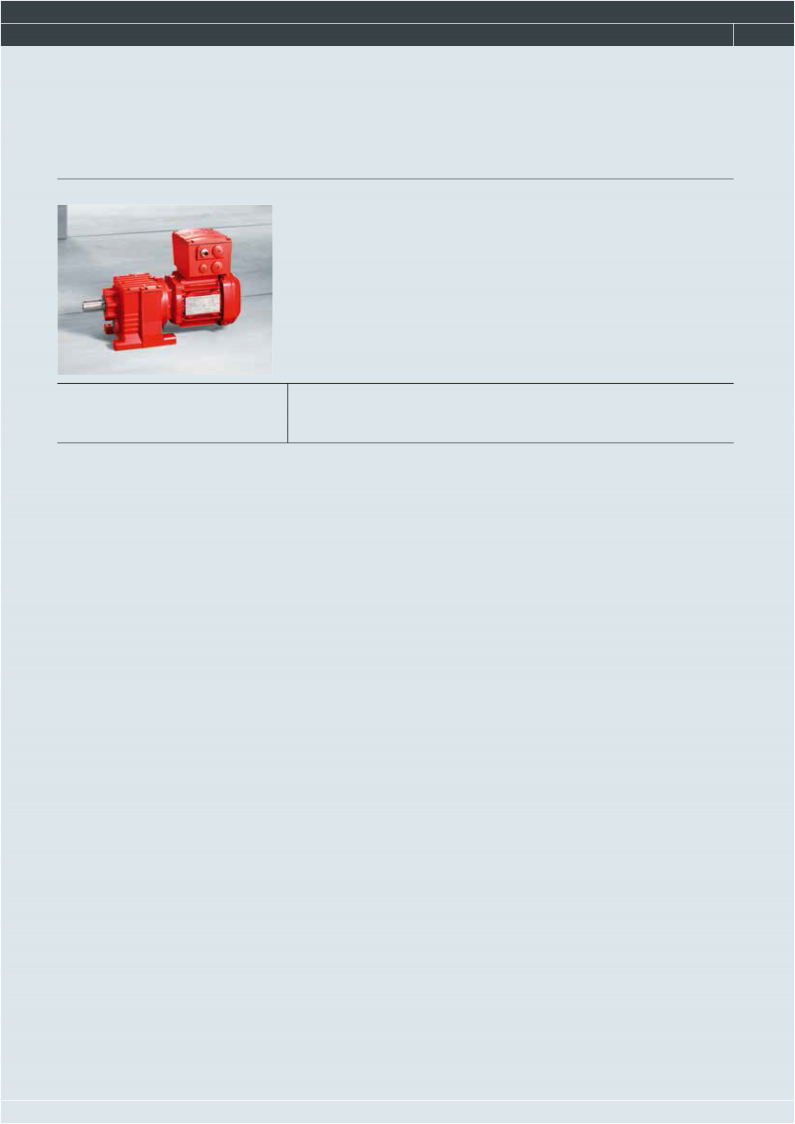

NEW: Basic motor starter MOVIFIT compact
Features Minimum effort – maximum benefit
– Integrated FieldPower contact block* for energy distribution with modern and reliable connector technology
– Simple connection and wiring technology
– Systematic integration of energy distribution components in the housing of the drive unit
– Consistent use of standard plug connectors for control and motor connection
– Extremely short assembly and installation times
– In connection with AS-Interface, two sensors can, in addition to the drive function, be connected to the unit for direct communication with the system controller (everything included)
Technical data
Function | Reversing | Duo | Reversing | Duo |
Control | AS-Interface | Binary control signals | ||
Max. motor power kW | 2.2 and 4 | 2× 2.2 | 2.2 and 4 | 2× 2.2 |
Connection voltage VAC | AC 3× 380 -10% – 480 + 10% | |||
Line frequency Hz | 50 / 60 | |||
Line connection | FieldPower contact block* | |||
Line protection | External | |||
Ambient temperature | -20 °C to +40 °C | |||
Degree of protection | IP55 | |||
Service interface | For connecting the keypad or the interface for MOVITOOLS MotionStudio | |||
Controller connection | M12 plug connector 1× male / 2x female | M12 plug connector 2× male / 1x female | ||
Inputs and outputs | 2 digital inputs for connecting external sensors | – 3 control inputs – 1 digital output – DC 24 V output | ||
Brake control | – Supply via motor connection – Brake voltage = line voltage – BG rectifier in motor terminal box | |||
Option | Built-in main switch: Simply switch off the inverter individually during maintenance work | |||
Dimensions L×W×H in mm | 255 × 150 × 159 | |||
* Copyright Weidmüller Interface GmbH & Co.
