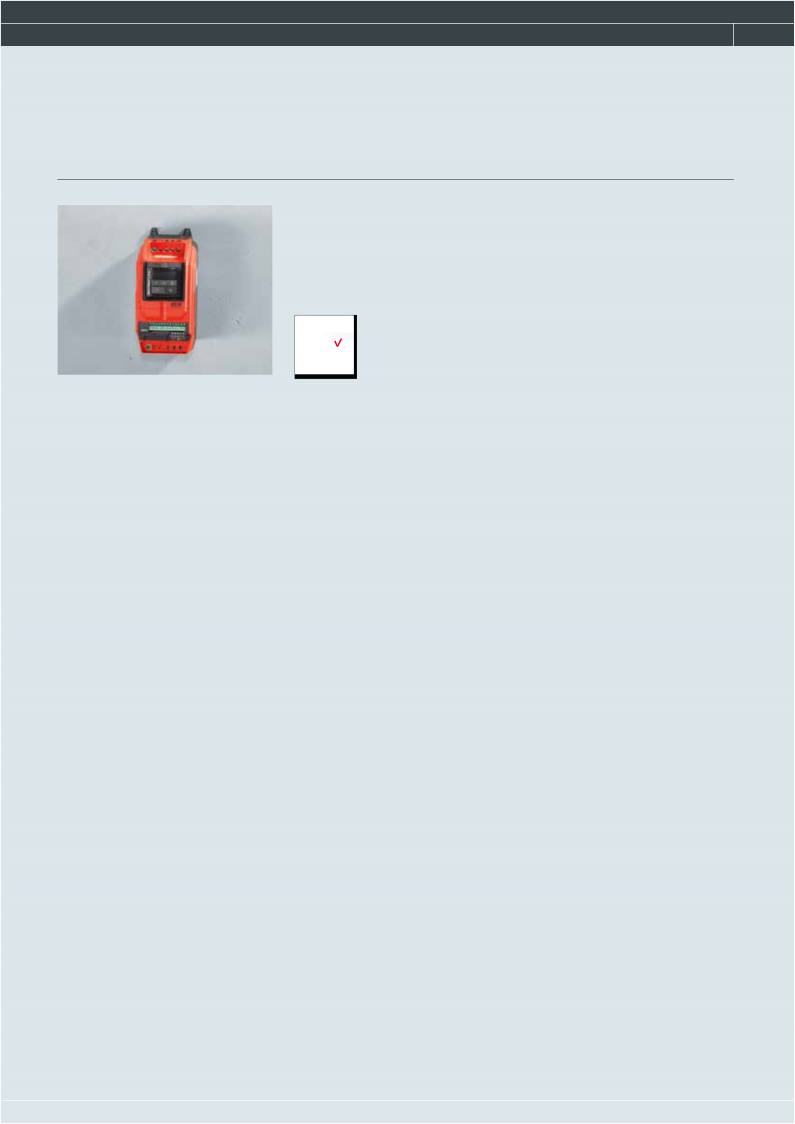

Features

– Standard design for installation in the control cabinet in degree of protection IP20/NEMA 1

– Optionally available in degree of protection IP66 / NEMA 4x field housing for wall mounting

Line connection

Power range in kW

115 V / 1-phase

0.37 – 1.1

230 V / 1-phase

0.37 – 4.0

230 V / 3-phase

1.5 – 4.0

400 V / 3-phase

0.75 – 11.0

Features

– Integrated keypad

– Integrated PI controller

– Integrated emergency mode/fire mode

– Integrated SEW-EURODRIVE system bus, CANopen and Modbus RTU

– Preconfigured for corresponding DR.. motor

– Energy-saving function

– Extra quiet pulsed voltage supply up to 16 kHz

– V/f and LVFC motor control (Light Vector Flux Control)

– Operation of synchronous motors with LSPM technology (Line Start Permanent Magnet Motor)

– Approved in accordance with UL508

DFx..

Gateways for many standard fieldbus systems

LT BP-B

Parameter module for data transmission to/from PC and saving/loading data

LT BG-C

Additional keypad for remote operation

LT NF..

Additional line filter facilitates EMC-compliant installation

LT ND..

Additional line chokes to increase the overvoltage protection

LT HD..

Additional output choke to suppress interference emission and for very long motor cables

Features

Flexible, simple and safe:

– Standard design in degree of protection IP55/NEMA 12k housing for wall mounting

– Optionally also available in degree of protection IP20/NEMA for control cabinet installation

– Control of synchronous and asynchronous motors without encoder (V/f, VFC, VFC torque)

Line connection

Power range in kW

230 V / 1-phase

0.75 – 2.2

230 V / 3-phase

0.75 – 5.5

400 V / 3-phase

0.75 – 11.0

575 V / 3-phase

0.75 – 15.0

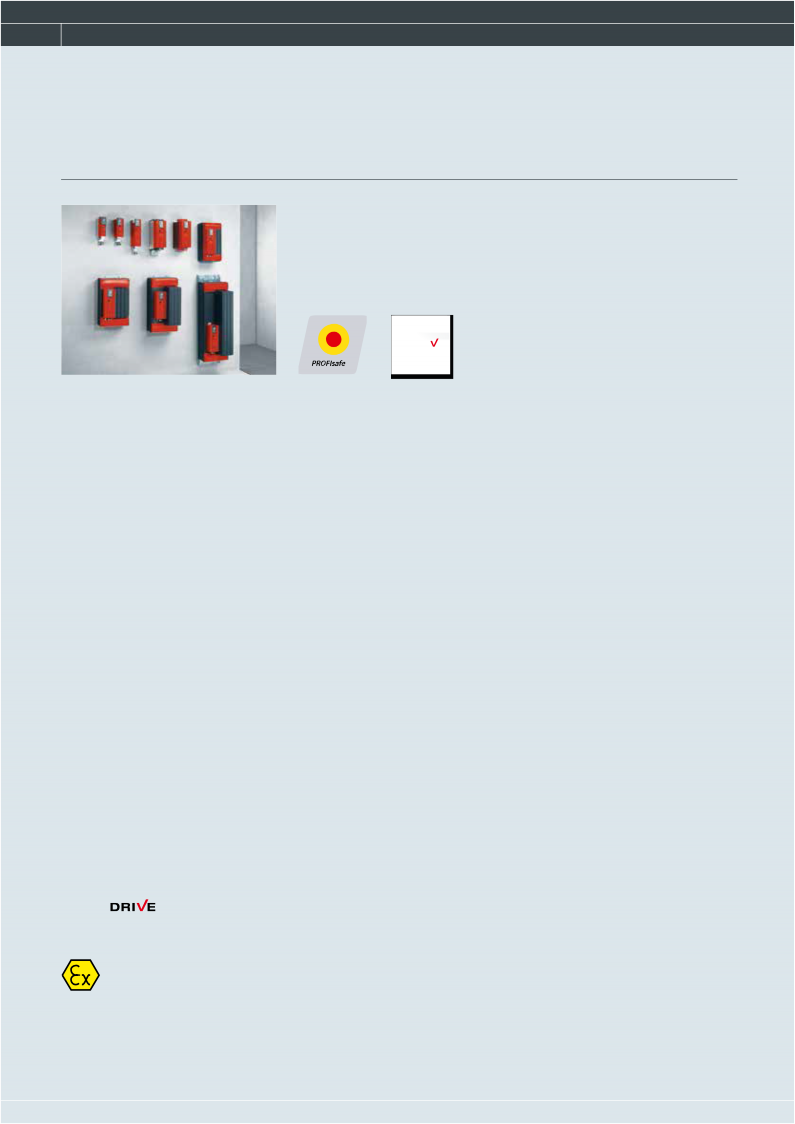

Features

– Compact frequency inverter for space-saving installation for applications in the power range from 0.25 to 75 kW

– Its straightforward operation saves time during startup

– Versatile unit concept

– Wide range of communication and expansion options

Line connection

Power range in kW

230 V / 1-phase

0.25 – 2.2

230 V / 3-phase

0.25 – 30

400 / 500 V / 3-phase

0.25 – 75

Standard design

Equipped with integrated IPOS positioning and sequence control1) as standard. The standard basic equipment of the unit can be expanded by various options.

Technology version

with application modules

In addition to having the characteristics of the standard design, the units in the technology version provide access to application modules, meaning control programs to realize technical drive tasks: Simple positioning

Advantages of the application modules:

– High functionality and user-friendly user interface

– Only the parameters needed for the application must be entered

– Guided parameterization instead of complicated programming

– All motion functions are controlled directly in MOVITRAC B

Energy efficiency

There are various options for improving the energy balance when using MOVITRAC B:

– Process adaptation

– Energy saving function

– DC link coupling as of size 2

– Regenerative power supply, size 2 and up

(5.5 kW, MOVIDRIVE MDR regenerative power supply module)

safety

Functional safety

Standard design: Safe Torque Off (STO) and Safe Stop (SS1)2) up to PL d according to EN ISO 13849-1 for 3 x AC 230 V / 400 V units of 0.55 up to 75 kW (optionally 230 V up to 2.2 kW and 400 V up to 4 kW)

For information on operating explosion-proof motors with frequency inverters or drive inverters, refer to page 141.
