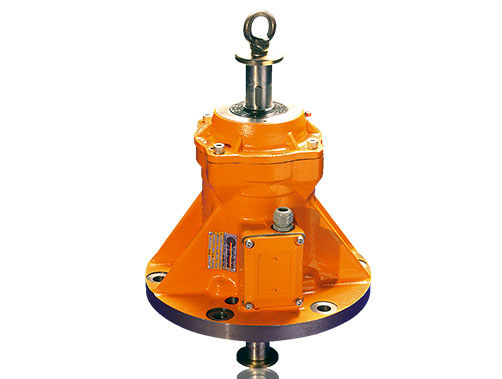

Italvibras MVB electric vibrators are made up of vertical vibrators with lateral flange and shaft projecting on both sides. These vibrators are typically used in circular screens and medium-size and large sieves, and can be supplied in 4 different versions, depending on type of eccentric weights supplied to be assembled by the user. Size 50 is only available in B, C and D versions. The size 50 complies with the most recent IEC and EN international standards for use in atmospheres with potentially explosive powders. In particular, the size 50 series can be used in areas 21 and 22.

Power supply
Three-phase voltage from 220V to 690V, 50Hz or 60Hz. Suitable for use with a PWM frequency drive from 20Hz to the base frequency with constant torque load profile.

Polarity
4 poles.
