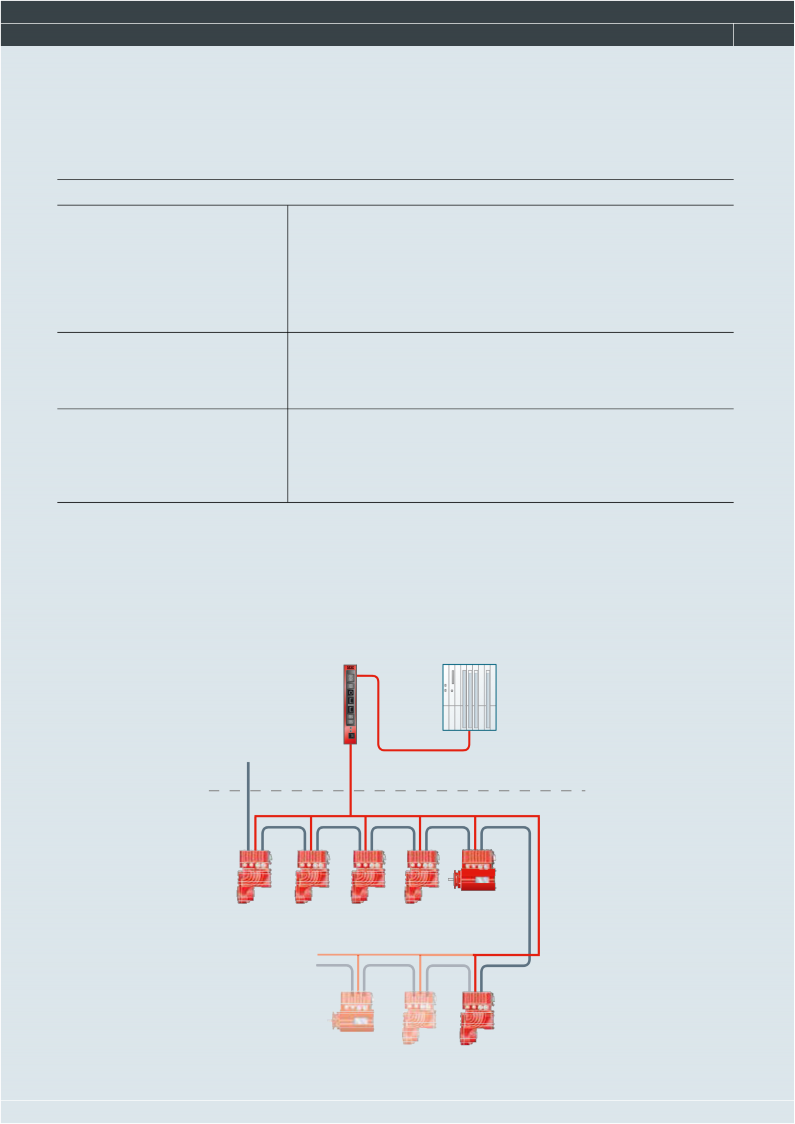

Installation topology with SNI controller

Single Line Network Installation

Features – SNI uses the cabling infrastructure of the energy supply as the basis for the transmission of communication signals

– Easy installation as only supply cables need to be connected

– Drive networks can be implemented with up to 100 m extensions and 10 slaves

– Routing of bus cables or 24 V supply to drives not necessary

– No risk of hidden faults in the bus wiring

– Reduced startup time

– Shorter project runtimes/reduction of project costs

Possible applications – Installation topology for easy installation of MOVIGEAR / DRC.. drive systems for conveyor systems that require variable speeds or local positioning

– SNI components in combination with MOVIGEAR actuators and DRC.. in SNI design as extensi- on to process more distributed sensors without additional infrastructure

Application examples – Belt conveyors

– Pallet conveyors

– Roller and wheel conveyors

– Screw conveyors

– Container and packaging unit transports

– Chain and drag-chain conveyors

NEW: SNI components – CSW maintenance switch

- Possibility to disconnect single SNI actuators individually

- Communication to all other actuators is maintained

– SNI I/O system CIO:

- Networking of process-relevant, not directly assigned sensors via the SNI infrastructure

- Intelligent preprocessing of sensors and integration into the CCU structure

[1]

[2]

24 V

PLC

[1] Back-up fuse/ line protection

[2] Line filter

[3] Communication

[4] 24 V

[5] Grid

Control cabinet level

Field level

MOVIFIT FDC

MOVIFIT FDC

[3]

[4]

[5]

CSW..

MOVIGEAR SNI-B

DI00 DI01 DI02 DI03

DI04 DI05 DI06 DI07

MOVIGEAR SNI-B

CSW..

NET RUN STATE

CIO 41-xx A-503-00

DIO08 DIO09 DIO10 DIO11

DIO12 DIO13 DIO14 DIO15

SNI I/O system

MOVIGEAR SNI-B

CSW..

DRC.. SNI

DRC.. SNI

SNI SNI
