Fieldbus interfaces, field distributors and cable systems
RUN
BUS-F
DI0 DI2 DI4 DO0
DI5

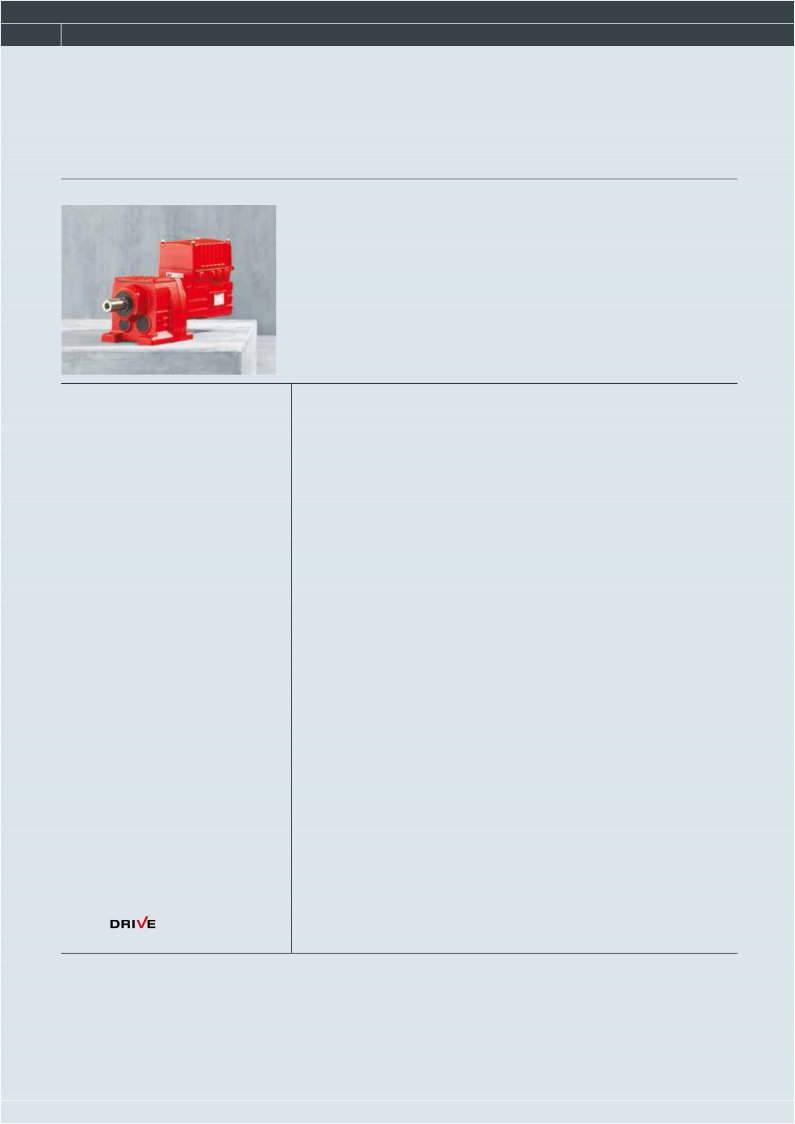

MF.. and MQ.. fieldbus interfaces
MFE52A Ethernet
SYS-F
link/act1
link/act2
MFE52 fieldbus interface for PROFINET IO
Features – Connection of MOVIMOT and MOVI-SWITCH drives to the standardized fieldbus systems PROFIBUS, INTERBUS, DeviceNet™, AS-Interface, PROFINET IO, SBusPLUS/EtherCAT and NEW EtherNet/IP™
– Fieldbus interfaces are based on a module terminal box with connecting terminals and a pluggable fieldbus module; these fieldbus interfaces can be mounted directly on the drive, in the field, or in the field distributor
– The adjustable-speed MOVIMOT drive is connected to the bus using terminals; additional sensors, actuators or MOVI-SWITCH gearmotors without control can be connected to the bus using terminals or M12 plugs depending on the design
– Easy fault diagnostics via bus in the event of a malfunction by means of diagnostic interfaces and LED signals
– Reading sensor signals
– Controlling actuators via digital input and output terminals
– Degree of protection IP65
– Option package: Degree of protection IP66, stainless steel cable glands, pressure compensation fitting, M12 metal plug for fieldbus modules with M12 plug connectors
In addition, optionally integrated controller with the following functions:
– Programmable via IPOSplus
– Simple positioning with EI76 incremental encoder
– Integrated I/O preprocessing and timing elements
– Protocol modification
Options for fieldbus interfaces MF.. / MQ..
– The MFG11A keypad is plugged on any MFZ.. connection module instead of a fieldbus interface for manually controlling a MOVIMOT drive
– DBG60B keypad for manually controlling MOVIMOT drives; additionally, the process data words can be displayed in monitor mode; direct connection to the diagnostic interface of MOVIMOT or the MF../MQ.. fieldbus interface
Hybrid cables – Cables that combine energy transfer, control voltage, and communication in one cable sheath (SEW-EURODRIVE in-house development) ensure optimum EMC shielding and impedances
– The hybrid cable for connecting MOVIMOT to field distributors combines the communication interface and supply and control voltage connections in one cable and is supplied as a pre- fabricated cable with plug connector
– MOVIMOT drives with connected hybrid cable can be connected to the field distributor in a matter of seconds and are ready for operation
– Simple handling in case of service: The connector can be disconnected without any danger, the drive can be replaced and the new drive re-connected quickly
– Ideal for all systems with high demands on availability
MFE52A Ethernet
RUN
BUS-F
SYS-F
link/act1
link/act2
DI0 DI2 DI4 DO0
DI5

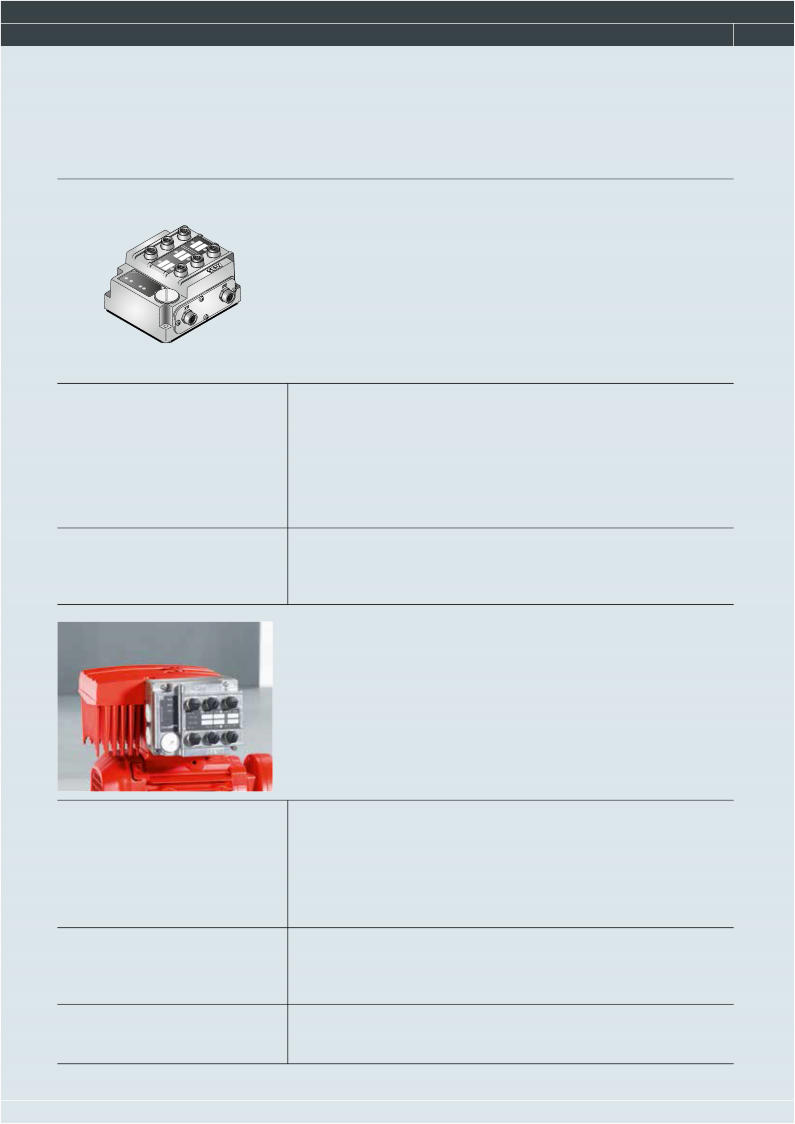

MFE62A EtherNet/IPTM fieldbus interface
Features − Connection of MOVIMOT drives to an Ethernet/IP™ fieldbus system
− Compatible with all existing SEW-EURODRIVE field distributors 05
− Reading-in of sensor signals via M12 plug connectors
− Control of actuators via M12 plug connectors
− Configurable I/Os (4I/2O or 6I/0O)
− Ideal for retrofitting DeviceNet™ systems
− Supports the DLR redundancy protocol
− Degree of protection IP65
Seamless networking − MFE62A allows for easy and economical connectivity between decentralized drives and EtherNet/IPTM masters
− Flexibly adjustable process data configuration
MFE72A SBusPLUS/EtherCAT fieldbus interface
Features – Connection of MOVIMOT drives to an SBusPLUS/EtherCAT fieldbus system
– Compatible with all existing SEW-EURODRIVE field distributors
– Reading-in of sensor signals via M12 plug connectors
– Control of actuators via M12 plug connectors
– IO update cycle ≥ 1 ms
– Selectable number of process data (4PD/10PD)
– Degree of protection IP65
Seamless networking – The MFE72A fieldbus interface enables simple and efficient communication between decentralized drives and SBusPLUS/EtherCAT masters
– Added value due to flexible additional functions such as encoder evaluation and counting input for fast pulse trains
Integrated additional functions – Integrated encoder evaluation for master-based simple positioning
– Compatible with built-in encoder EI7C from SEW-EURODRIVE
– Counting input for fast pulse trains, e.g. for product identification using a light barrier
192
Decentralized drives / mechatronics
