Advantage

The available built-in encoders for the DR.. motors series that can be installed on the B-side between endshield and fan wheel are unique. With this solution the user does not have to provide for additional space as it is the case with add-on speed sensors*.

MOVITRAC standard inverter in combination with the “simple positioning” application module can replace applications that, up to now, have been realized with creep/rapid speed switch-over with initiator evaluation.

Built-in encoders

EI7C, EI76, EI72, EI71

Signal type

HTL (push-pull)

Supply voltage

DC 9 – 30 V

Periods per revolution

A, B

EI7C: 24

EI76: 6

EI72: 2

EI71: 1

Motor sizes of the DR.. series

– DRE../DRS../DRP..: 71 – 132

– DRN..: 80 – 132S

– DRU..: 71 – 100

Connection

– Terminal strip in the terminal box

– 8-pin M12 plug connector

– 4-pin M12 plug connector

safety

Functional safety

FS safety-rated built-in encoder up to PL d according to EN ISO 13849-1: EI7C FS..

*Add-on speed sensor

Types:

– ES7S, EG7S, EH7S, EV7S: with Sin/Cos interface

– ES7R, EG7R, EH7R: with TTL (RS-422) interface

– AS7W, AG7Y: RS-485 interface (multi-turn)

– AS7Y, AG7Y, AH7Y: SSI interface (multi-turn)

– ES7A, EG7A: Mounting adapter for speed sensor from the SEW-EURODRIVE portfolio

– XV.A: Mounting adapter for non-SEW speed sensors

– XV..: Mounted third-party speed sensors

safety

Functional safety

FS safety-rated encoders up to PL d according to EN ISO 13849-1 Types:

– ES7S, EG7S: with Sin/Cos interface

– AS7W, AG7Y: RS-485 interface (multi-turn)

– AS7Y, AG7Y, AH7Y: SSI interface (multi-turn)

Features

To protect motors and gear units that are subject to severe environmental influences,

SEW-EURODRIVE offers possibilities to increase the resistance of highly stressed surfaces.

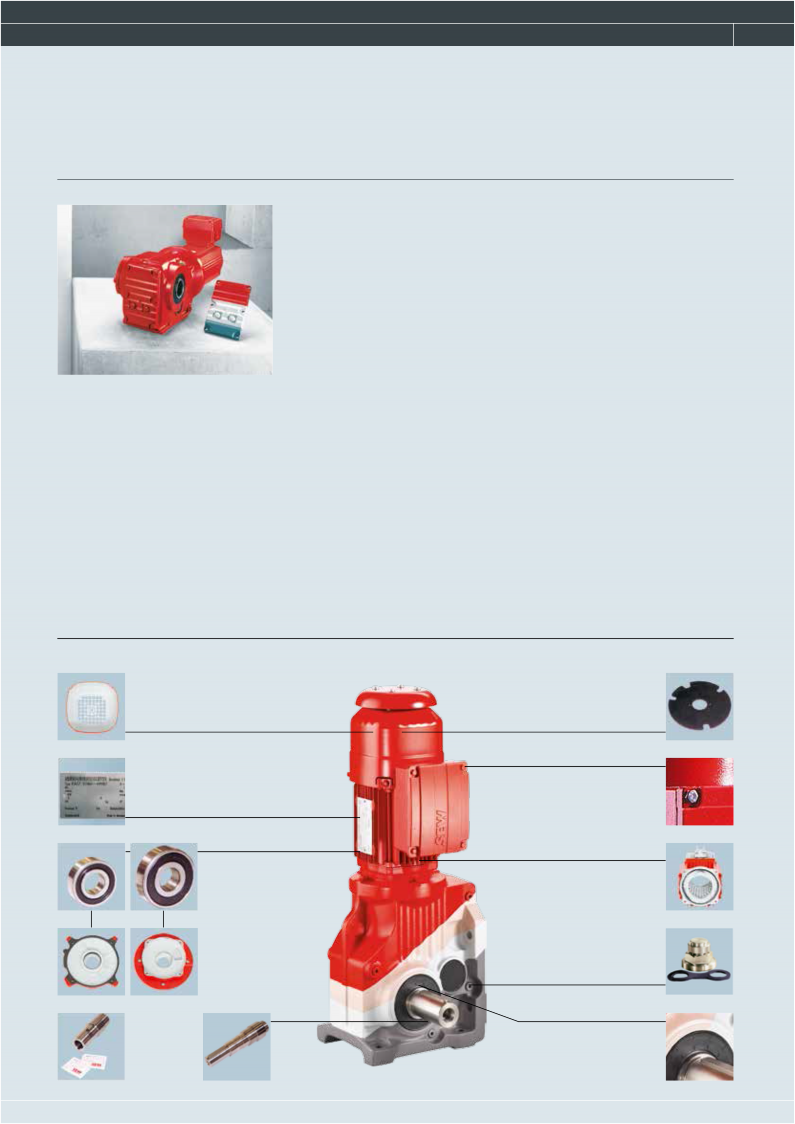

KS corrosion protection

Measures to increase the resistance to corrosion:

– All retaining screws that are loosened during inspection or maintenance work are made of stainless steel

– Nameplates are made of stainless steel and various motor parts are coated with a finishing varnish

– The flange contact surfaces and shaft ends are treated with a temporary rust preventive

– In addition, clamping straps are used for brakemotors

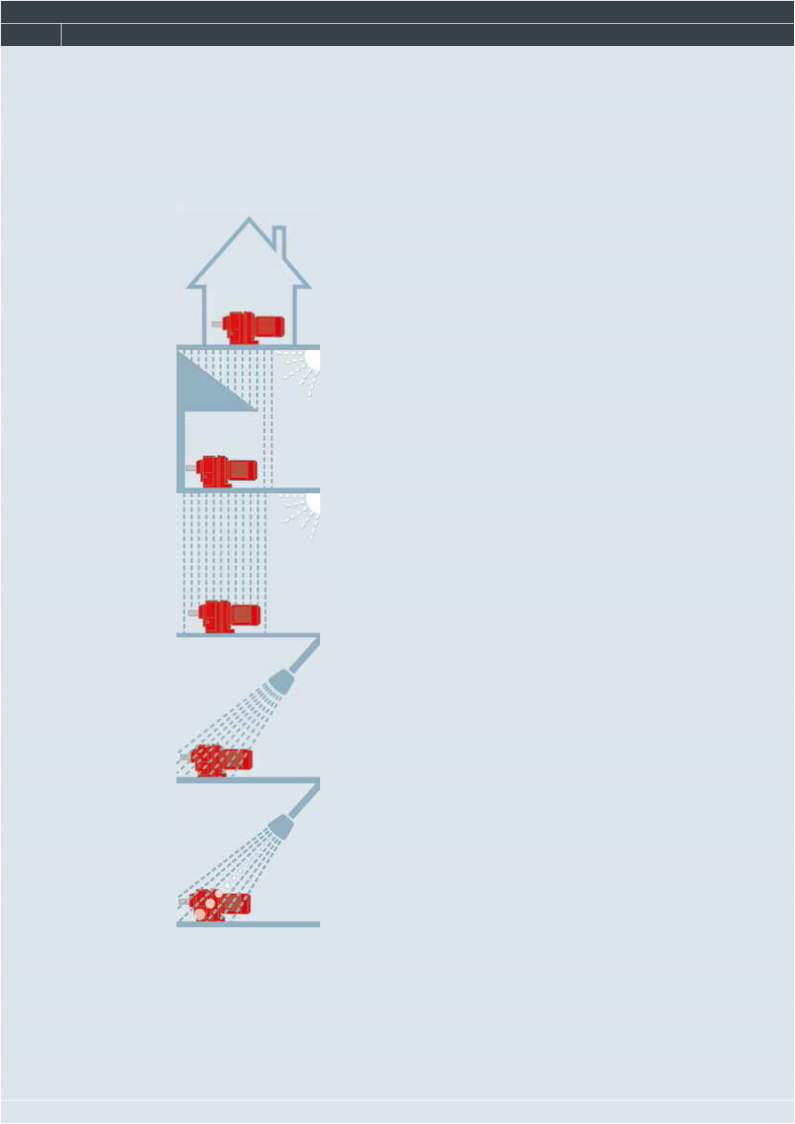

OS surface protection

In addition to the standard surface protection, motors and gear units are optionally available with surface protection OS1, OS2, OS3 or OS4. This makes the gearmotors well equipped for operation under various ambient conditions.
