Cables and connection options
CMP.. servomotor cable connections
Motor type | Power connector | Cable routing | Drive electronics |
CMP40 – 63 | Motor: SM1 | Fixed installation or cable carrier installation | MOVIDRIVE application inverter MOVIAXIS multi-axis servo inverter |
Brakemotor: SB1 | |||
CMP71 – 100 | Motor: SM1, SMB | Fixed installation or cable carrier installation | MOVIDRIVE application inverter MOVIAXIS multi-axis servo inverter |
Brakemotor: SB1, SBB | |||
CMP112 | Motor: SM1, SMB, SMC | Fixed installation or cable carrier installation | MOVIDRIVE application inverter MOVIAXIS multi-axis servo inverter |
Brakemotor: SB1, SBB, SBC |
Motor type | Encoder connector | Cable routing | Drive electronics |
CMP40 – 112 | RH1M resolver | Fixed installation or cable carrier installation | MOVIDRIVE application inverter MOVIAXIS multi-axis servo inverter |
CMP40 – 63 | HIPERFACE AK0H, EK0H, AK1H, EK1H | Fixed installation or cable carrier installation | MOVIDRIVE application inverter MOVIAXIS multi-axis servo inverter |
CMP71 – 112 | HIPERFACE AK0H, EK1H, AK1H | Fixed installation or cable carrier installation | MOVIDRIVE application inverter MOVIAXIS multi-axis servo inverter |
DR.. series AC motor cable connections: Direct connection
Motor type | Encoder type | Encoder connection | Inverter connection |
DR71 – DR132 | EI7C, EI76, EI72, EI71 | Conductor end sleeves | Conductor end sleeves MOVIDRIVE B application inverter |
M12 plug connector | |||
ES7S, ES7R, AS7W, AS7Y | Conductor end sleeves | D-sub plug connectors MOVIDRIVE application inverter | |
Connection cover | |||
DR160 – DR225 | EG7S, EG7R, AG7W, AG7Y | Conductor end sleeves | |
Connection cover | |||
DR315 | EH7S | M23 plug connectors | |
AH7Y | Conductor end sleeves |
03
DR.. series AC motor cable connections: Connection via intermediate sockets
Motor type | Encoder type | Encoder connection | Adapter plug |
DR71 – DR132 | ES7S, ES7R, AS7W | Conductor end sleeves | M23 plug connector (female connector) |
Connection cover | |||
DR160 – DR225 | EG7S, EG7R, AG7W | Conductor end sleeves | |
Connection cover |
Intermediate socket
M23 plug connector (male connector) | Extension | M23 plug connector (female connector) |
Intermediate socket | Inverter connection | |
M23 plug connector (male connector) | Extension | D-sub plug connectors MOVIDRIVE application inverter |
3.3 Linear motion

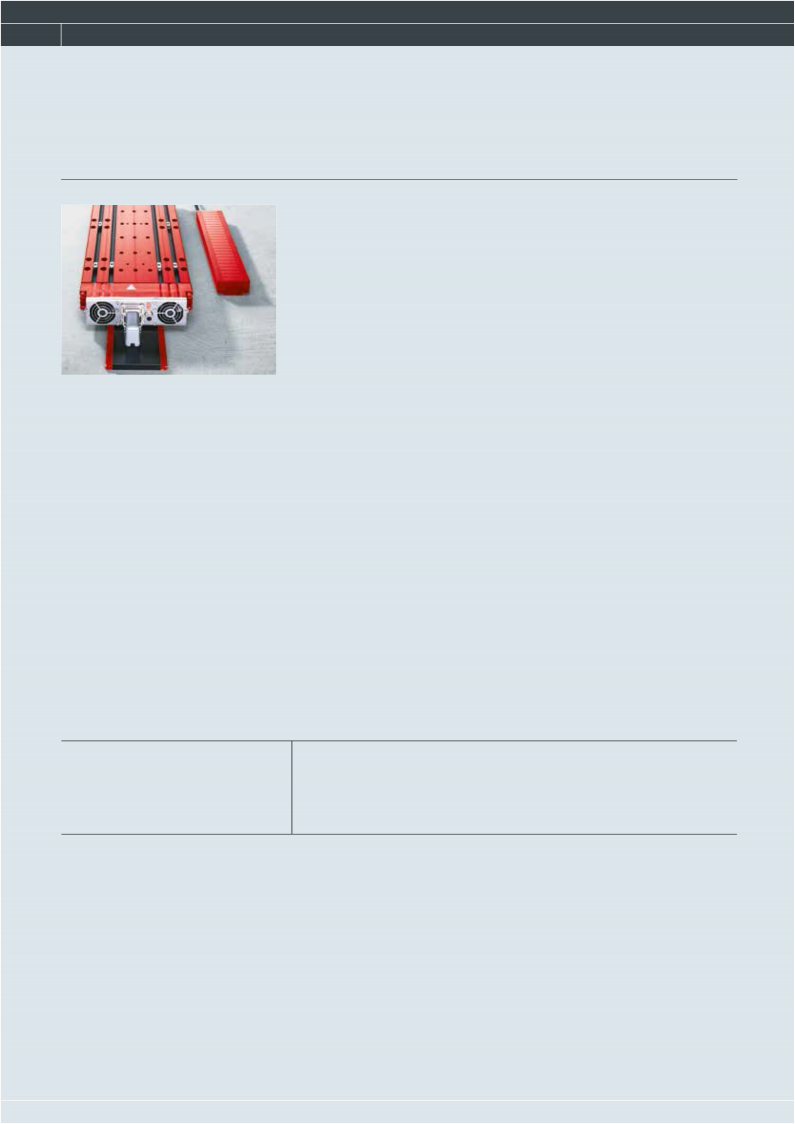

Synchronous linear servomotors
SL2 series
Features | – Suitable application areas: highly dynamic, flexible processing machines; material handling; pick and place applications – No mechanical transmission elements and wear parts are required as linear motion and force are generated directly – Optimized force-density ratio due to modern winding technology and laminated iron core – Almost maintenance-free – High control quality, dynamics and precision – Available in three designs (SL2 basic, SL2 advanced system, SL2 power system) – Secondaries are available in various lengths and can easily be lined up | |
Product versions | Rated power range N | Rated speed classes m/s |
SL2 Basic | 125 – 6 000 | 1 / 3 / 6 |
SL2 Advance System | 280 – 3 600 | |
SL2 Power System | 400 – 5 500 | |
Options for linear servomotors
SL2 Advance System and SL2 Power System
– The cables of the motor end have matching plug connectors
– EMC-compliant connector housing design
– Plug connectors seal the plug on the cable end with a lamellar seal and ensure strain relief in accordance with EN 61884
– Various accessories for inverter-specific prefabrication
