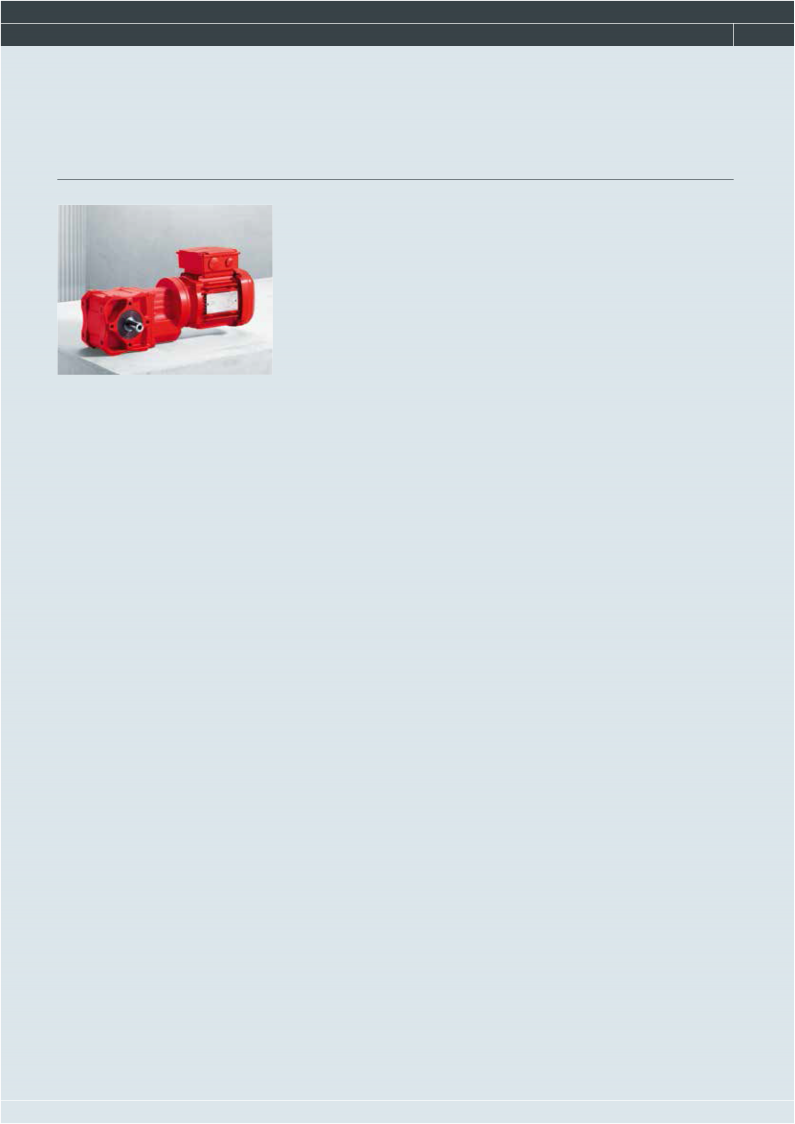

Features

– Can be used in all industries and applications, e.g. in lifts or conveyor applications

– Low loss, two-stage design (helical/hypoid gearing)

– Gearing with infinite fatigue strength, which means the drive is almost wear-free

– Can be combined with all motors from SEW-EURODRIVE

– Energy efficiency:

- Gearing efficiency of more than 90% i low energy consumption

- Gear unit efficiency allows for smaller motors i compact design

- Motor energy efficiency class from IE1 to IE4 can be realized

– Wide range of designs ensures an optimum connection to the customer machine even in critical mounting situations

Size K..19

Size K..29

Size K..39

Size K..49

Max. output torque

Nm

80

130

300

500

Solid shaft

mm

20

25

30

35

Hollow shaft with key KA..

mm

20

25/30

(30 according to

DIN 6885-3)

30/35

35/40

Flange diameter K.F..

mm

120 / 160

160 / 200

160

200

Gear unit ratio

i

4.50 – 58.68

3.19 – 71.93

2.8 – 58

3.5 –75

Motor power range

(mounting via AM motor adapter)

kW

0.12 – 1.1

0.12 – 2.2

0.12 – 4.0

0.12 – 7.5

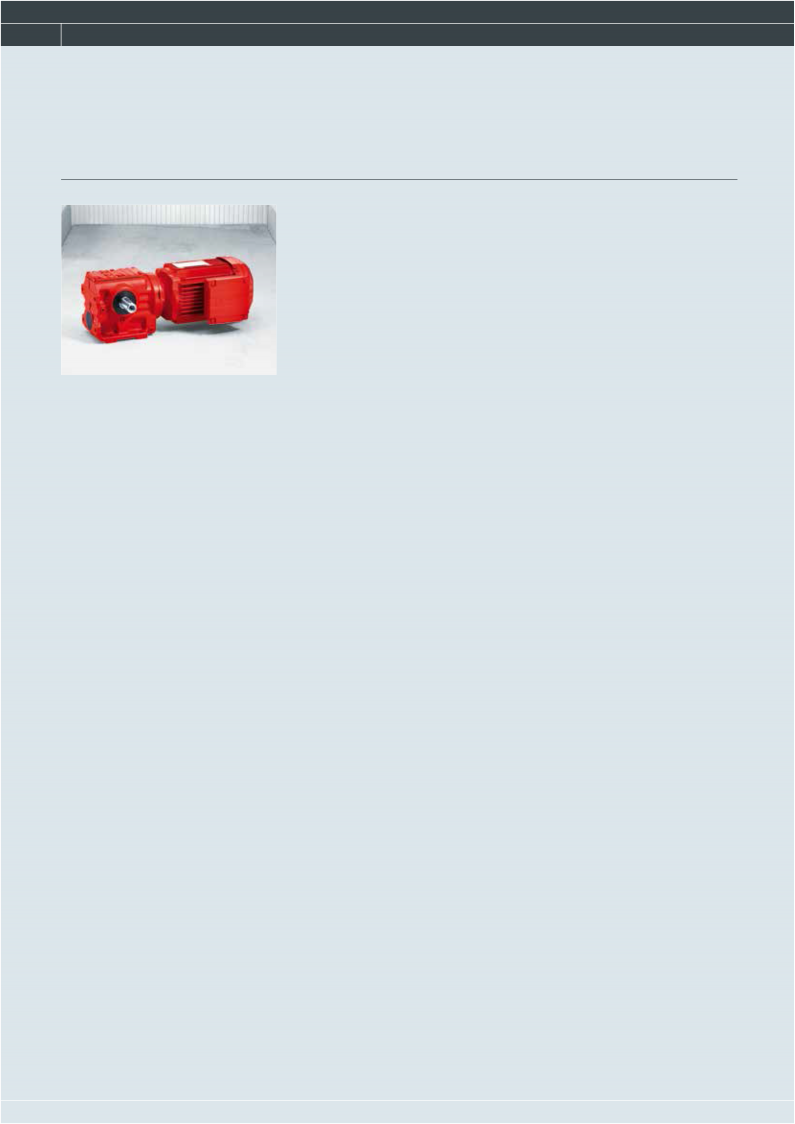

Features

– Significantly more efficient than plain worm gear units due to helical-worm combinations

– Very low-noise operation

– Possible variants:

- Foot- or flange-mounted design

- B5 or B14 flange

- Solid or hollow shaft

- Hollow shaft with keyed connection, shrink disk, splining or TorqLOC

Gear unit ratio

i

3.97 – 288.00

Gear unit ratio – compound gear units

i

110 – 33 818

Max. output torque

Nm

92 – 4 000

Motor power range

(mounting via AM motor adapter)

kW

0.12 – 30

Features

– Robust right-angle gear units with SPIROPLAN gearing, wear-free and lightweight

– Material combination of steel on steel gearing

– Particular tooth meshing ratio

– Lightweight aluminum housing

– Can be used in any mounting position as the oil fill is independent of the mounting position; no need to change the oil fill quantity

– Possible variants:

- Foot or flange-mounted design

- B5 or B14 flange

- Solid or hollow shaft

Gear unit ratio

i

3.20 – 75.00

Max. output torque

Nm

25 – 180

Motor power range

(mounting via AM motor adapter)

kW

0.12 – 3.0

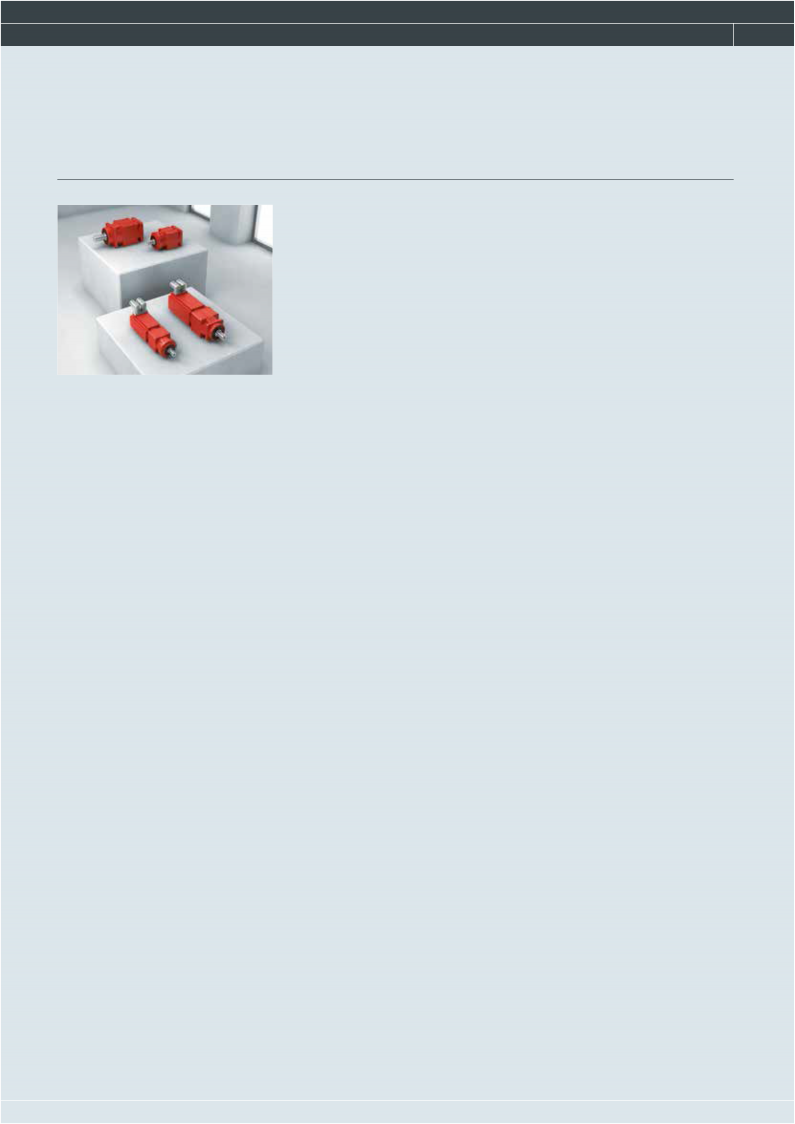

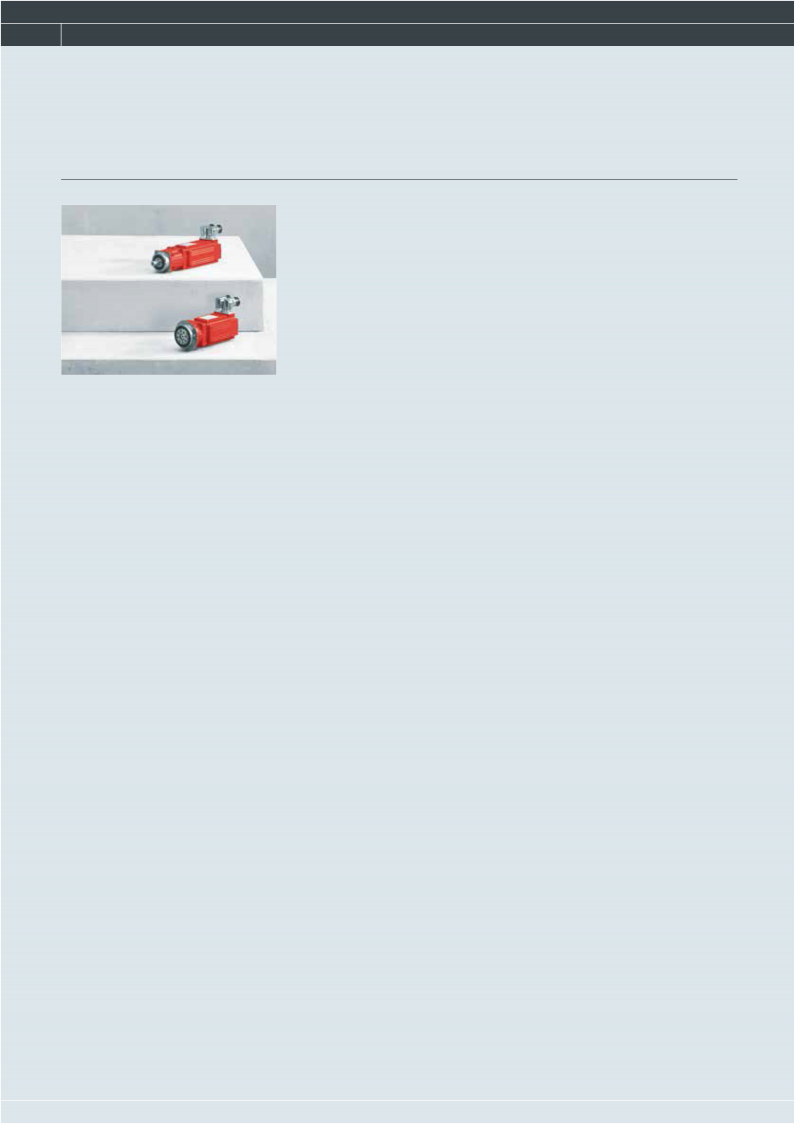

Features

– Low backlash planetary servo gear units

– Designed for nominal torques from 25 Nm to 3 000 Nm

– Available in three output variants:

- PSF = B5 output flange, smooth solid shaft (without key)

- PSKF = B5 output flange, solid shaft with key

- PSBF = B5 output, flange block shaft according to EN ISO 9409

– Life-long lubrication

– High permitted overhung loads

Type

Size

single-stage/ two-stage

Torque class Nm

Overhung load range

N

Gear unit ratios

i

Rotational clearance ‘ (single-stage/two-stage)

Standard

Optional

Reduced (../R)

Minimized (../M)

PS(K)F

121 / 122

25

1 900 – 2 000

single-stage1) 32), 4, 5, 7, 10

two-stage1)

16, 20, 25, 28,

35, 40, 49, 70,

100

8' / 10'

4' / 6'

2' / 3'

221 / 222

55

1 720 – 2 680

6' / 8'

3' / 4'

1' / 2'

321 / 322

110

4 380 – 5 480

521 / 522

300

6 150 – 9 610

621 / 622

600

13 400 – 14 200

4' / 6'

2' / 3'

1' / 1'

721 / 722

1 000

25 700 – 35 900

821 / 822

1 750

51 400 – 62 800

921 / 922

3 000

55 000 – 83 300

PSBF

221 / 222

55

1 530 – 5 000

single-stage 5, 7, 10

two-stage

153), 20, 25, 35,

49, 70, 100

6' / 8'

3' / 4'

1' / 2'

321 / 322

110

8 580 – 25 000

521 / 522

300

13 900 – 40 000

621 / 622

600

20 800 – 60 000

4' / 6'

2' / 3'

1' / 1'

721 / 722

1 000

37 900 – 120 000

821 / 822

1 750

66 100 – 180 000
