Modular CMSM.. electric cylinders

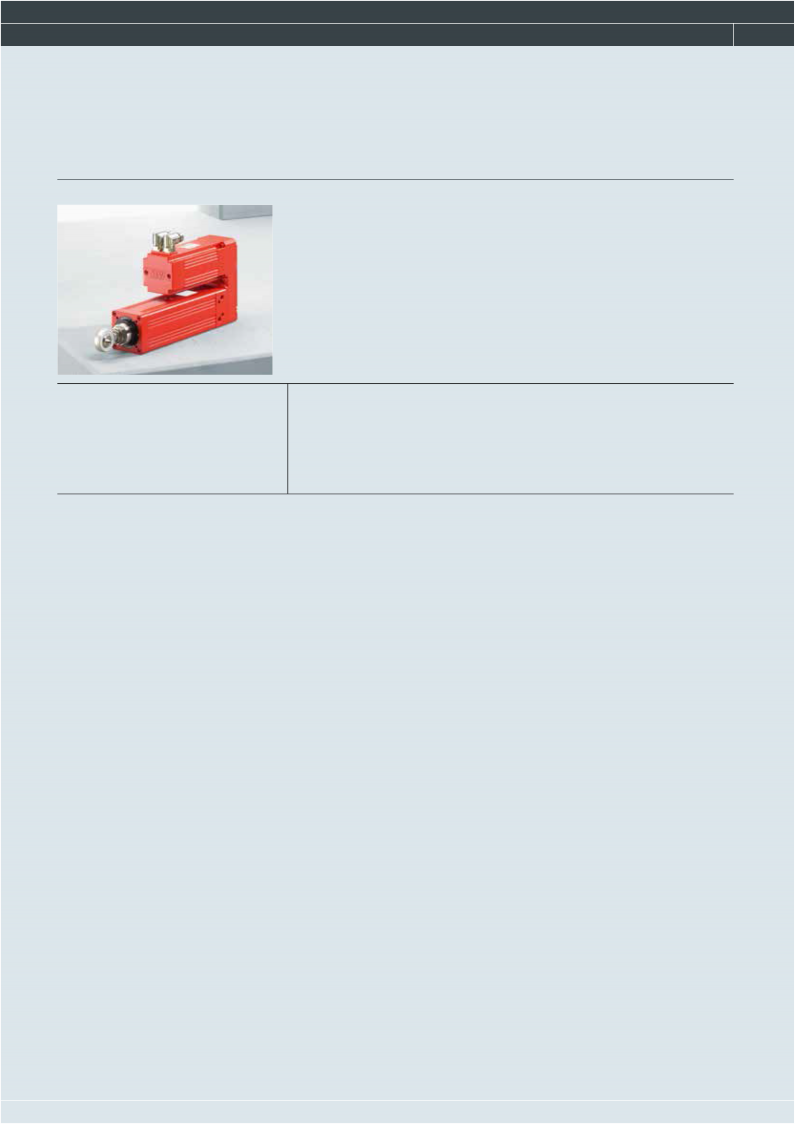

CMSMB50 – 71 series / ACH or ACA (axially serial)
Features – Separately available modular unit (linear gear unit) with the proven oil bath lubrication of the CMSB.. standard electric cylinder series
– Can be combined with the standard servomotors from SEW-EURODRIVE (CMP50/63/71) using ACH/ACA adapters
Technical data
Type | NEW: CMSMB50 / ACH or ACA | CMSMB63 / ACH or ACA | CMSMB71 / ACH or ACA |
Max. permitted input torque Nm | 7 | 11.1 | 25 |
Max. permitted input speed min-1 | 4 500 | 4 500 | 4 500 |
Peak feed force N | 8 000 | 10 000 | 24 000 |
Stroke lengths mm | 70 / 100 / 150 / 200 / 300 / 400 / 600 | 60 / 100 / 160 / 180 / 200 / 400 / 600 | 100 / 160 / 200 / 400 / 600 / 800 / 1 000 / 1 200 |
Screw type | KGT 1) 20x5 | KGT 1) 25x6 | KGT 1) 32x6 |
1) Ball screw

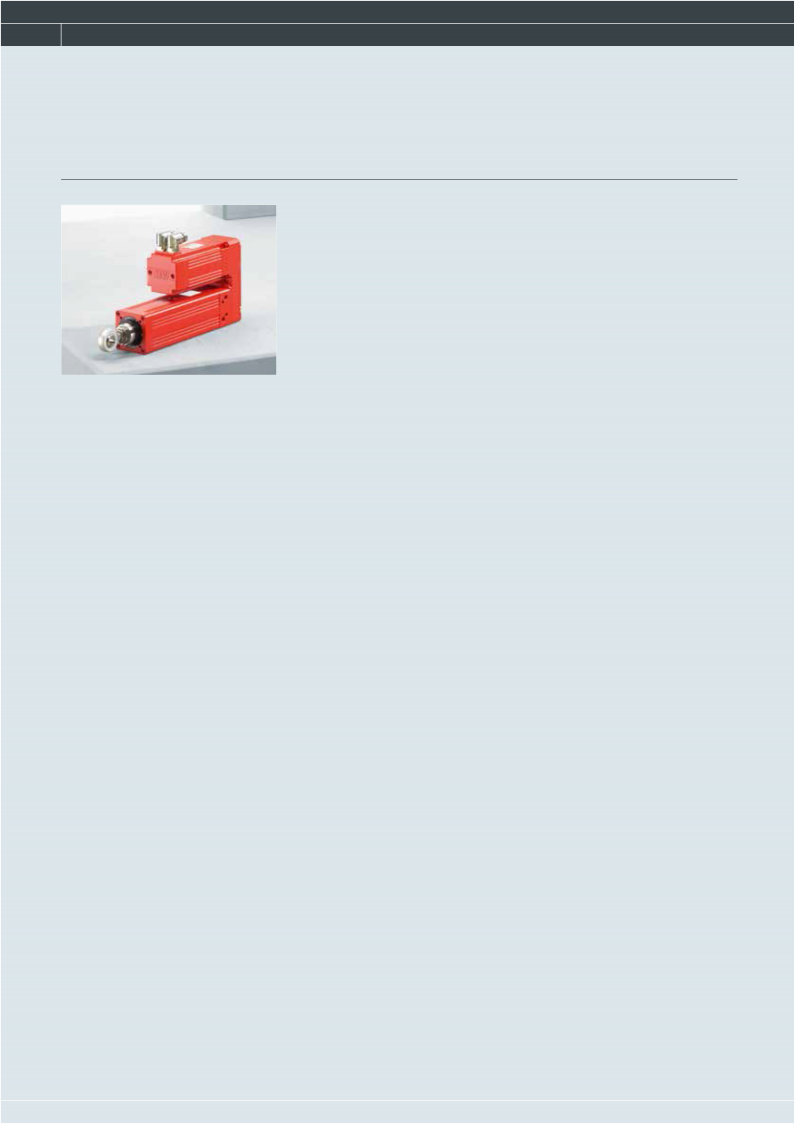

CMSMB50 – 71 series / AP (axially parallel)
Features – Compact design
– Patented maintenance-free oil bath lubrication (lifetime lubrication)
– Very high thermal power density
– Very low-noise operation
– Optional water cooling
– Use of CMP50/63/71 standard servomotors
Electrical data
Type | NEW: CMSMB50/AP and | ||
CMP50S | CMP50M | CMP50L | |
Max. torque Nm | 5.2 | 7.6 1) | 7.6 1) |
Standstill torque Nm | 1.2 | 2.3 | 2.6 |
07
Mechanical data
Rated speed nN | 3 000 min-1 4 500 min-1 6 000 min-1 | |||
Screw type | KGT 2) 20x5 | |||
Max. continuous feed force N | 1 100 | 2 100 | 2 700 | |
Peak feed force N | 5 300 | 8 000 | 8 000 | |
Stroke lengths mm | 70 / 100 / 150 / 200 / 300 / 400 / 600 | |||
Max. speed mm/s | 375 | 375 | 375 | |
1) Max. permitted torque
2) Ball screw
