Gearmotor with motor starter
MOVI-SWITCH
Features | – Switching and protection function integrated in the motor terminal box – Compact and robust gearmotor – No further cabling required – No additional control cabinet space is needed – Available in all AC motor and brakemotor combinations of the DR.. series with the matching gear units | ||
Number of poles | Power range kW | ||
MSW-1E | MSW-1EM | MSW-2S | |
4 | 0.37 – 3.0 | 0.09 – 0.25 | 0.37 – 3.0 |
2 | 0.37 – 3.0 | 0.12 – 0.37 | 0.37 – 3.0 |
6 | 0.25 – 1.5 | – | 0.25 – 1.5 |
Switching function | On/off, one direction of rotation | On/off, two directions of rotation | |
Switching element | Contactless star bridge switch | Switching element with contact | |
Direction of rotation | CW or CCW, depending on the phase sequence | CW and CCW, regardless of the phase sequence | |
Control | – Binary control signals RUN/OK – Connection using 1x M12 plug connector | – Binary control signals CW / CCW / OK – Connection using 2x M12 plug connectors – Alternatively with integrated AS-Interface | |
– | Alternatively with integrated AS-Interface | ||
Brake management | With brake rectifier as standard BGW | With brake rectifier as standard BG | – Integrated brake control – Optional external control with BGM brake rectifier |
Protection function | Thermal motor protection with integrated evaluation | – Thermal motor protection with integrated evaluation – Supply system monitoring (power failure and phase failure) | |
Degree of protection | IP54, optionally IP55, IP65 or IP66 | ||
Ambient temperature | –25 °C to + 40 °C (to + 60 °C) | ||
Ú Accessories and options:
Field distributor and fieldbus interfaces: page 190

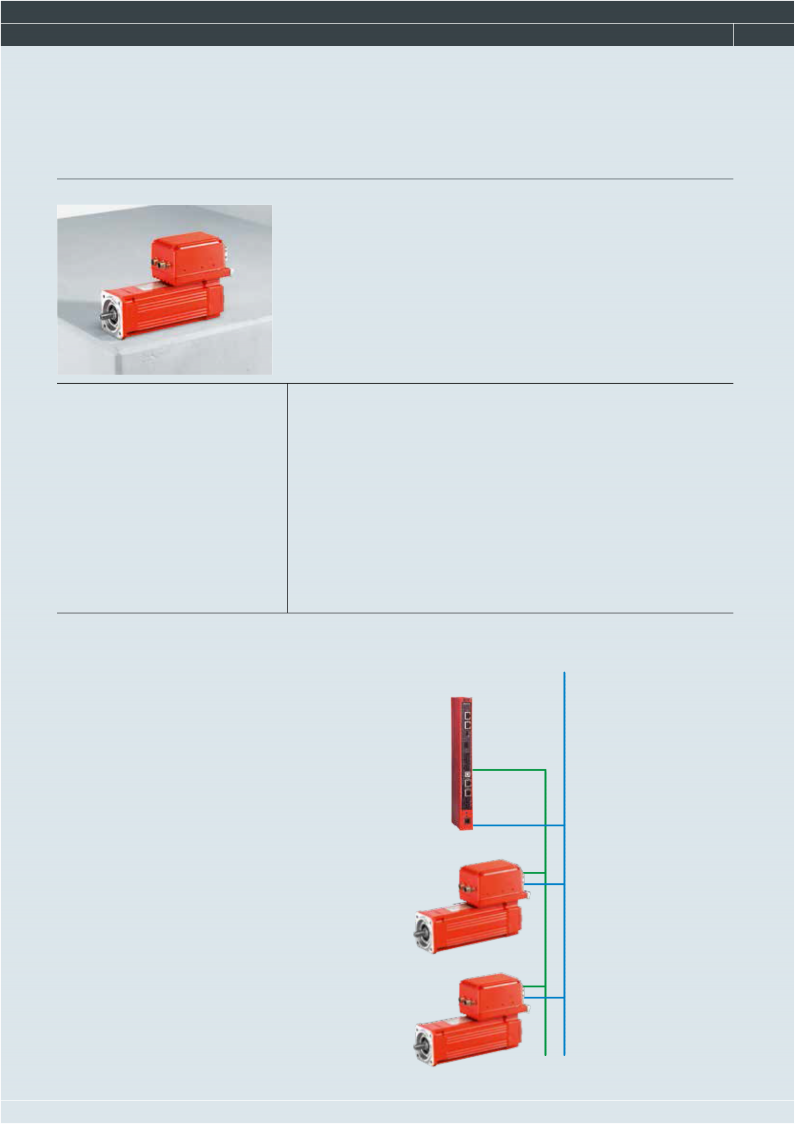

5.4 Decentralized extra-low voltage servo drive
CMP.. ELVCD
Features – Compact decentralized installation
– High continuous and peak power 05
– Robust design with convection cooling
– Easy installing with DC 48 V extra-low voltage
– All connections pluggable
– High degree of protection IP65
– UL-approved1)
– Integrated braking resistor
– Optional encoder systems and brake
– Flexible gear unit combination
– Integrated engineering with the integration of the MOVI-PLC controller
– Coordinated multi-axis movements can be realized with our MOVI-PLC motion and logic controller
1) In preparation
Installation topology with the CMP.. ELVCD decentralized extra-low voltage drive
Supply system /
fieldbus 24 V / 48 V
SBus controller MOVI-PLC
– CMP.. ELVCD is supplied with DC 24 V (control) and DC 48 V (power supply).
– The drive is controlled via SBus with a controller from SEW-EURODRIVE, which functions as central head station.
– The controller is responsible for the coordination and the higher-level motion control for all connected drives.
– Depending on the power demands and the synchronicity of the drives, several drives can be connected and supplied via one phase winding.
– The used controllers offer conventional interfaces for higher-level automation levels. The automation system can also be operated independently as a module.
CMP.. ELVCD
CMP.. ELVCD
SBus
06 INVERTER TECHNOLOGY
6.1 Control cabinet installation MOVITRAC LTE-B basic inverters | 206 | 6.3 Decentralized installation: Motor starters NEW: Basic motor starters MOVIFIT compact | 232 |
MOVITRAC LTP-B standard inverters | 207 | MOVI-SWITCH motor starter | 233 |
MOVITRAC B standard inverters | 208 | MOVIFIT SC motor starter | 234 |
MOVIDRIVE B application inverters | 211 | ||
MOVIAXIS multi-axis servo inverters | 214 | 6.4 Decentralized installation: Inverters | |
MOVIDRIVE MDR regenerative power supply units | 218 | NEW: Basic inverters MOVIFIT compact | 236 |
effiDRIVE: Energy efficiency in the control cabinet | MOVIMOT standard inverters | 237 | |
and in servo applications | 224 | MOVIFIT MC distributors for MOVIMOT | 238 |
MOVIFIT FC inverters | 240 | ||
6.2 Wall mounting MOVI4R-U basic inverters | 228 | MOVIPRO standard and application inverters MOVIAXIS MMD60B decentralized | 242 |
MOVITRAC LTE-B basic inverters in IP66 | 230 | servo inverters | 243 |
MOVITRAC LTP-B standard inverters in IP55 | 230 | ||
6.5 Accessories and options Software | |||
MOVITOOLS engineering software | 244 | ||
MOVIVISION plant software | 245 |
