NEW: Central installation topology with control cabinet inverter
Features | – MGF..-DSM gearmotor unit as alternative for centralized control cabinet installations – The frequency inverter installed in the control cabinet is connected to the MGF..-DSM drive unit – In combination with MOVITRAC LTP-B control cabinet inverters easy startup with only two parameters – Parameterizable fixed speeds and ramps – With application controller CCU identical interfaces/functions for speed control to those for decentralized solutions |
Possible applications | – Flexibility when planning new systems, particularly for exchange and retrofit projects – As drive for applications with high breakaway and starting torques – Conveyor systems with variable speeds – As drive for applications that require soft and/or defined startup behavior |
Application examples | – Transport of bottles, packaging units and containers – Belt conveyors – Screw conveyors |
201

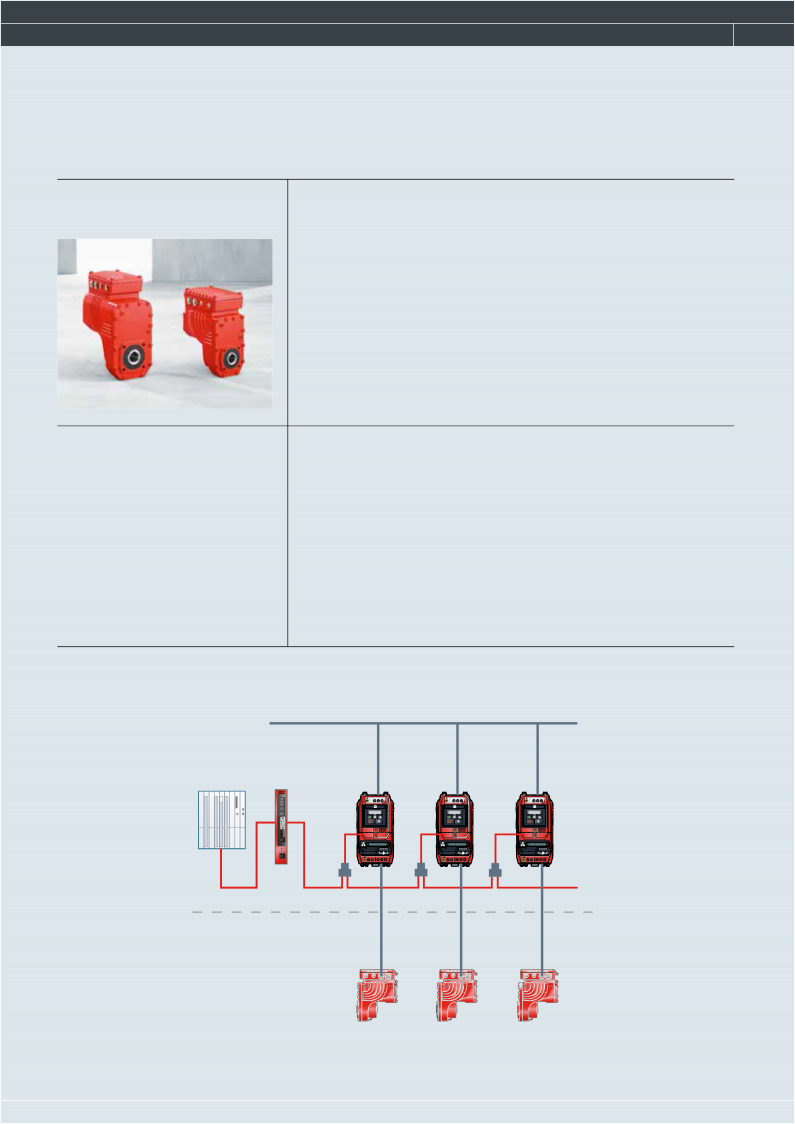

MGF..-DSM performance classes and designs
MFG..-DSM is available in two sizes, three performance classes and two mechanical variants:
MGF..-DSM performance classes
– MGF.2-DSM (torque class: 200 Nm, up to 0.8 kW)
– MGF.4-DSM (torque class: 400 Nm, up to 2.1 kW)
– MGF.4-DSM/XT (torque class: 400 Nm with extended continuous torque, up to 3 kW)
MGF..-DSM design types
– MGF..-DSM with hollow shaft with key
– MGF..-DSM with TorqLOC hollow shaft mounting system
Universal design /MU thanks to internal pressure compensation
– Pressure compensation of the gear unit /PG
– Pressure compensation fitting of the electronics /PE 05
Design for special ambient conditions – Meets all of the requirements for use in hygienic areas
– HP200 coating with optimal anti-adhering properties
- ECOLAB-tested chemical and mechanical resistance
- FDA approval
- Minimal cleaning effort
– Degree of protection IP66
– Perfectly suited for nearly all applications in clean room environments as it complies with
all requirements of clean room drives up to air cleanliness class 2 according to ISO 14644-1 (confirmed by Fraunhofer Institute)
– Pressure compensation fitting
– Stainless steel fitting
– Internal pressure compensation
Supply system
PLC
SBus controller (MOVI-PLC / CCU) /
Gateway
MOVITRAC LTP-B
MOVITRAC LTP-B
MOVITRAC LTP-B
MOVITRAC LTP-B
L1/L L2/N L3
MOVITRAC LTP-B
L1/L L2/N L3
MOVITRAC LTP-B
L1/L L2/N L3
X30
2 0
2 1
2 2
2 3
2 4
2 5
2 6
1 2 3 4 5 6 7 8 9 10 111213
14 15 16 17 18
1 2 3 4 5 6 7 8 9 10 111213
14 15 16 17 18
1 2 3 4 5 6 7 8 9 10 111213
14 15 16 17 18
+ BR U V W
+ BR U V W
+ BR U V W
Control cabinet level Field level
SBus SBus SBus
Drive unit
MGF..-DSM
Drive unit
MGF..-DSM
Drive unit
MGF..-DSM
