Part.
S0242
Chain - guide profile
42,1
45
3 43
Part./Art. Réf. S0263
2,5
18 4 18
Colour
metres
Code
Green
80 63671
3
40 - Standard packaging : coil.
It differentiates because the gap between chain edges and the side rib of Part. S0242 is smaller.
50 88 50
82,5 5,5
Part./Art. Réf. S0261
42,1
22,5
4
43
Part./Art.
Réf. S0242
Part. S0824
Chain - guide profile
Length
Chain width 82,5 mm ( K 325 ) / Pitch 85 mm
7
3
Colour
Green
metres
3
Code
631663
50 85 50
82,5 2,5
Part./Art.
2,2
Best choice Standard
37,1
41,5
2,2
6 631653
- Standard packaging : bars of 3 and 6 metres.
- Packaging : 96 metres.
42,1
43,5
Part./Art. Réf. S0824
Réf. S0261
On request : minimum quantity may apply. Consult our Customer Service for availability.
Item code for order = Part. + Code
10
• Material
Plastic profile in Polyethylene UHMWPE with molecular density 5.600.000. Metal Profile material austenitic stainless steel or zinc plated steel.
• Linear expansion
coefficient
4 x 10 -5
Calculation of thermal expansion
Chain-guide profile
5,1
H
25,4
S
A
S
mm
1,5
2
H A
mm mm
17 16
17,5 17
Part. S0768
see page 38.
+ 6 Thickness
S
Metal profile
Length
Weight
• Operating temperature
In air (- 40 a + 80 C).
P 0
+ 1
0
mm material metres Code kg/m
In hot water (+ 70 C).
Austenitic
3 609083
• Positioning. See page 39.
1,5
stainless steel 6 609093 0,63
H
Zinc plated steel 3 609103
• Head Joint
Austenitic
3 609113
Head joint shall be made with a 45
cut to avoid steps and guarantee
2
stainless steel
6 609123
0,74 TM ®
chain smooth mouvement. With temperature encrease it is necessary to leave a gap wide enough to allow for thermal elongation of plastic parts.
• Deflection of Part. S0223 - S0310 - S0356
- Material : plastic profile in Polyethylene UHMWPE with molecular density 5.600.000 with Microban® antibacterial protection.
- Colour : white.
- Min. curvature radius : 160 mm.
- Linear expansion coefficient : 4 x 10 -5.
- Packaging : 24 metres.
Gap
antibacterial protection
Deflection (mm)
10
S= 1,5
500 5
S= 2
3
8,6
1
25,4
mm mm mm
100
200
300
400 500
S
H
2 21 17
Load P (Newton)
• Table Top® chain series 812 - 815 - 820 - 831 - 881TAB - 8811TAB - 879TAB - 880TAB
Chain width 82,5 mm (K 325) / Pitch 88 mm
Thickness S
mm
A
Metal profile material
Length metres
Code
Weight kg/m
50 88 50
Austenitic
3 609033
82,5 5,5
Part./Art.
Réf. S0261
1,5
stainless steel 6 609043 0,72
Part./Art.
Zinc plated steel 3 609053
42,1
Réf. S0243
2 Austenitic
3 609063
®
TM
0,82
Part./Art.
45
Part./Art. Réf. S0216
43
Part./Art. Réf. S0310
Part./Art.
*= Fixing clamp can be used only with chains 812-
stainless steel 6 609073
- Material : plastic profile in Polyethylene UHMWPE with molecular density 5.600.000 with Microban® antibacterial protection.
- Colour : white.
- Min. curvature radius : 160 mm.
antibacterial protection
Réf. S0215*
Réf. S0310
815-820-831
- Linear expansion coefficient : 4 x 10 -5.
- Packaging : 24 metres.
Chain width 82,5 mm (K 325) / Pitch 85 mm
50 85 50
82,5 2,5
42,1
Part./Art. Réf. S0261
Part./Art.
Réf. S0243
45 Part./Art.
Réf. S0356*
*= Can be used only with chains 812-
815-820-831
Chain width 82,5 mm (K 325) / Pitch 83,5 mm 50 83,5 50
82,5 1
42,1
Part./Art. Réf. S0261
Part./Art.
Réf. S0243
Best choice
Standard
On request : minimum quantity may applay. Consult our Customer Service for availability.
44 Part./Art.
Réf. S0356*
*= Can be used only for chains 812-815-820-831
Item code for order = Part. + Code
11
Part. S0356
Chain-guide profile
40
• MatTop® modular chain
Parallel wear strip.
Recommended with medium-light loads.
8
7,5
Part./Art.
Part./Art.
17
2
21
Réf. S0765-S0356 Réf. S0244
Length
With
Code
Without
Weight
Part./Art.
Colour
metres
Microban® Microban®
kg/m
Réf. S0215
Part./Art.
TM ®
White 3
6
605173
652002
61605
61615
0,89
Réf. S0262
antibacterial protection
- Material : metal profile austenitic stainless steel.
- Packaging : 24 metres.
CHEVRON pattern. Recommended with high loads (accumulation tables)
Chain wear is evenly distributed throughout the width.
Part. S0310
Chain-guide profile
43
2,5
20 3 20
8
2
9
17
500
Colour
White
Length metres
3
6
Code
65612
69412
21
Weight kg/m
0,95
- Material : metal profile austenitic stainless steel.
- Packaging : 24 metres.
Part. S0765
Chain-guide profile
57,15
S
mm
1,5
2
H A
mm mm
20,5 16
21 17
8
S
H
10
A
Thickness S
mm
Metal profile material
Length metres
Code
Weight kg/m
Austenitic
3 608943
TM ®
1,5
stainless steel 6 608953 0,95
antibacterial protection
Zinc plated steel 3
608963
2 Austenitic
3 608973 1,06
Best choice
Standard
On request : minimum quantity may apply. Consult our Customer Service for availability.
Item code for order = Part. + Code
stainless steel 6 608983
- Material : plastic profile in Polyethylene UHMWPE with molecular density 5.600.000 with Microban® antibacterial protection.
- Colour : white.
- Min. curvature radius : 200 mm.
- Linear expansion coefficient : 4 x 10 -5.
- Packaging : 24 metres.
12
• Material
Plastic profile in Polyethylene UHMWPE with molecular density 5.600.000. Metal Profile material austenitic stainless steel or zinc plated steel.
• Linear expansion
coefficient
4 x 10 -5
Calculation of thermal expansion see page 38.
• Operating temperature + 6
Chain-guide profile
31,8
9,7
6,4 25,4
S
H
A
S
mm
1,5
2
H A
mm mm
20,5 16
21 17
Part. S0766
In air (- 40 a + 80 C). In hot water (+ 70 C).
• Positioning. See page 39.
P 0
Thickness
+ 1
0
S
H
mm
Metal profile material
Length metres
Code
Weight kg/m
• Head Joint
1,5
Austenitic
3 608993 0,82
Head joint shall be made with a 45
stainless steel 6
609003
cut to avoid steps and guarantee
2 Austenitic
3 609013
TM ®
0,93
chain smooth mouvement.
With temperature encrease it is necessary to leave a gap wide enough to allow for thermal elongation of plastic parts.
• MatTop® modular chain
Parallel wear strip.
Recommended with medium-light loads.
Gap
stainless steel 6 609023
- Material : plastic profile in Polyethylene UHMWPE with molecular density 5.600.000 with Microban® antibacterial protection.
- Colour : white.
- Linear expansion coefficient : 4 x 10 -5.
- Packaging : 24 metres.
Chain-guide profile
antibacterial protection
Part. S0764
Part./Art. Réf. S0215
Part./Art.
Réf. S0356
Part./Art.
Réf. S0244
Part./Art. Réf. S0262
Thickness
30,2
S
A
Metal
S
15,2
mm
H
1,5
2
H A
mm mm
25,7 16
26,2 17
S profile
Length
Weight
CHEVRON pattern.
mm material metres Code kg/m
Recommended with high loads
1,5
Austenitic
3 608903 0,93
(accumulation tables)
Chain wear is evenly distributed
stainless steel 6 608913
throughout the width.
2 Austenitic 3
stainless steel 6
608923
608933
1,03
TM ®
500
- Material : plastic profile in Polyethylene UHMWPE
with molecular density 5.600.000 with Microban® antibacterial protection.
- Colour : white.
- Linear expansion coefficient : 4 x 10 -5.
- Packaging : 24 metres.
antibacterial protection
• MatTop® modular chain
Parallel wear strip.
Recommended with medium-light loads.
Part./Art. Réf. S0766
Part./Art. Réf. S0765
500
CHEVRON pattern. Recommended with high loads (accumulation tables) Chain wear is evenly distributed throughout the width.
Best choice
Standard
On request : minimum quantity may applay. Consult our Customer Service for availability.
Item code for order = Part. + Code
13
Part. S0634
Chain - guide profile
15,9
Code
• MatTop®
modular chains
5,2
11,1 8,7
19,8
Colour
White
Length metres
6
With
Microban®
648132
Without
Microban®
650962
Parallel wear strips. Reccomended with mediumlight loads.
9,8
- Applicable to 4 mm thick sheet metal.
- Standard packaging : bars of 6 metres.
- Packaging : 96 metres.
2,6 4
Part./Art.
Réf. S0634
Part./Art.
Réf. S0261
TM ®
antibacterial protection
Part. S0814
Chain - guide profile
• MatTop® modular chains
Parallel wear strips. Reccomended with mediumlight loads.
12,7
9,4 3,3
12,7
Colour
White
Code
629163
Part./Art. Réf. S0814
Part./Art. Réf. S0814
7,5
Best choice Standard
2,5
- Applicable to 3 and 4 mm thick sheet metal.
- Standard packaging : coil.
- Packaging : 30 metres.
3 - 4
On request : minimum quantity may apply. Consult our Customer Service for availability.
Item code for order = Part. + Code
14

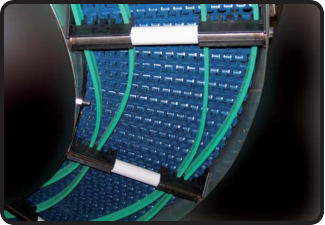

Solutions for Chain Return
• Also return rollers can improve line productivity
- If you can see concave wear on the top of the chains you need to change these chains
as products are falling down
- The reason is return rollers are not turning freely or wear shoes are
wearing the top of the chain in the return section of conveyors

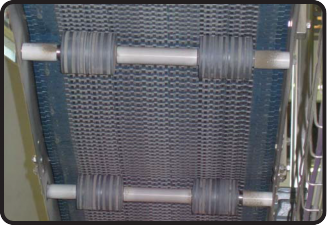

• The Super Premium Rubber Coated Roller
- No more problems as rubber is keeping the roller in rotation
- The best roller in the market thanks to the bi-material overmolding technology,
rollers is “coated” and no discontinuous interfaces exist
- Completely Cleanable / Closed Structure
- Noise Reduction ( -5db )
- Discontinuous surface ( rubber coated ) prevent dry lubricant to be
removed from the chain
- Microban® Antibacterial Protection
• UNL™ low noise plastic material
- best price / performance ratio
- -5dB noise with stainless steel chains
• Results : Higher Productivity for the End User
- Longer Chain Wear Life, premium rollers are always rotating and
there is not relative sliding between the chain and the roller
- Better product stability, less fallen bottles
Industry applications
For the most demanding bottling and container applications, there is no substitute for the performance and productivity of Rexnord TableTop and MatTop Chains. Since 1938, with the ground-breaking 815 TableTop stainless steel straight-running chain, Rexnord has pioneered innovation in beverage and food conveying that has inspired loyalty and driven specification for Rexnord conveyor chains from customers around the globe.
Line efficiency
Smooth container flow at high speeds is essential to increase line efficiency and preventing product damage. Especially when moving from multiple to single lanes or the reverse, the gentle slide of bottles across ultra-flat, highly polished stainless steel Rexnord chain can contribute significantly to the quality and efficiency of your beverage production line.
Applications in beverage
Rexnord products cover a wide variety of applications like: general conveying of glass bottles one-way and return, PET bottles and other plastic containers, jars, cans 2- and 3-piece, crates, plastic containers, boxes, shrink-wrapped packages.
Product Portfolio
Rexnord offers a comprehensive of conveyor products which include
Metal TableTop chain
Plastic TableTop chain including LBP and Supergrip
Plastic MatTop chain in standard, small pitch and heavy duty alternatives.
Magnetflex Corner tracks as well as alternatives like Tab and Bevel curves
Machined and moulded sprockets
High performance polymer materials & economic alternatives for less demanding applications
Pack and case conveying that offers flexibility of line configurations and total system cost efficiencies can significantly improve productivity at the dry end of filling lines. At the same time, brand extensions, innovative packaging, and light weight packaging materials are driving more demanding performance in pack and case handling. Cases and packs must be protected from damage even as they move rapidly out of case packers and shrink wrap machines and into, around, and out of curves.
That’s why Rexnord’s case and package handling conveying chains come in our modular small pitch, lightduty 15mm 1500 Series to medium duty 25.4mm pitch 1000 Series to the heavy-duty 1 in pitch 1005 Series in both versions for general conveying and in Super Grip / RubberTop™ versions for metering, incline, decline and braking applications. Furthermore the programm includes a comprehensive portfolio of Sideflexing MatTop chains like the versatile 1200-series MatTop. For accumulating conveyor the LBP (Low Backline Pressure) chains offers a solution to a large variety of applications.
With the Rexnord original Heavy Duty TableTop chains for packaging conveying, no other company provides the breadth of conveying solutions for your case and package handling requirements.
Rexnord products are known for their reliable performance in though conditions and challenging applications due to their robustness in design and drive technology. In container making therefore Rexnord products are often the preferred choice for applications like vacuum elevators, high speed (magnetic) conveyors, UV applications, high temperature applications and inspection conveyors.
Rexnord Material innovation
On top Rexnord offers the most comprehensive material portfolio in the market to meet an extensive variety of application requirements. Several applications in glassworks and container making lines combine an abrasive environment with the need for smooth container handling. Often these applications can not be easily lubricated to neutralize the effect of the hard abrasive particles in the environment. Therefore specialized materials can be part of a custom made solution. This is why, besides several proven specialized high performance materials like WX, HP and PS, Rexnords material portfolio is now completed with DKA aramid reinforced material.
Processing and packaging food faster with a lower life-cycle cost, less downtime, and reduced product waste requires people, technology, and processes working together to make plant efficiency and productivity the number one goal.
Conveying technology in this respect is a vital part in every food processing plant. As conveying chain and components come into direct contact with food during processing, they strongly contribute to plant process hygiene. Easy-to-clean conveying chain, based on sound hygienic design, contributes to better food safety while at the same time reducing costs through more effective cleaning. Further the reliability and robustness of the chain strongly contribute to the up time of the processing line.
Rexnord food conveying chain technology and food-safe material innovations offer high productivity solutions for food applications throughout each food manufacturing plant. That is why Rexnord’s 510, 1010, 1200 and 2010 Series MatTop® Chain, with their foodgrade design and easy-to-clean features, can be an important part of a robust and effective food safety program in every food processing plant.
Rexnord’s automotive solutions build on more than 100 years of conveying technology experience across multiple industries. From the mechanical press to the final inspection conveyors, Rexnord has developed low maintenance modular chain solutions for your applications. By assessing your individual needs and objectives, Rexnord’s skilled engineers will help you obtain the lowest Total Cost of Ownership (TCO), resulting in significant cost savings by improving operational safety, efficiency and productivity.
Rexnord 6990 Series Hybrid MatTop Chain
The 6990 Series Hybrid MatTop Chain (patent pending) is designed for automotive conveyors with high loads or frequent load variations (people movers). The steel structure in the chain creates stiffness and strength enabling the chain to be used in conveyors with lengths over 328-feet (100m) (moving people, vehicles or a combination of the two).
Rexnord 3120 Series MatTop Chain
The 3120 Series MatTop Chain is primarily used for industrial type applications: car washes, skid handling, people movers, pallet handling, and automotive parts handling. The sturdy design is molded in high-strength acetal material and utilizes Rexnord’s Twistlock pin retention system.
Rexnord 3180 Series MatTop Chain
Rexnord recognizes the importance of opportunities to easily and economically convert from existing technology in skid applications and has developed the 3180 Series MatTop Chain. These chains are suitable for 3.2 inch (81mm) skid conveyors, allowing the skids to be aligned mechanically before transferring to the next conveyor.
Successful processing in tunnel pasteurizers, warmers and coolers requires highly reliable, controlled conveying through the tunnel pasteurizer, and smooth container transfers at the infeed and outfeed. To have the highest conveying chain reliability, to eliminate product waste from tipped or broken containers, and to achieve durable conveying performance, Rexnord’s 2000-series USP MatTop chain and the Rexnord’s 9200 series Fortrex Stainless Steel MatTop Chain are specifically designed for superior performance in the demanding environment of pasteurizers, warmers and coolers.
DTS-C Dynamic In- and Outfeed Transfer
DTS-C patented by Rexnord combines special transfer combs and in/outfeed chains to the main Rexnord Pasteurizer belt for full self clearing transfers. This eliminates the dead plate area and ensures a continuous product flow eliminating back line pressure and potential product damage.
USP Ultra Stabilized Polypropylene Material
USP material is a unique formulation of stabilizers and anti-oxidants which protects the chain’s polypropylene material from degradation due to heat and/or chemicals. The USP material increases the reliability throughout the chain life cycle and helps to avoid the risk of unscheduled downtime.
PosiTrack centre guides
Patented integrated center guiding lugs ensure optimum chain tracking and keeps the chain sides from touching the tunnel structure, and eliminates the need to lock sprockets on the shaft.
