Sprockets tooth width B1 18 mm Sprockets tooth width b1 17,7 mm Sprockets tooth width B2 53,5 mm Sprockets tooth width B3 89,2 mm
CHAIN
Pitch 31,75 mm B1 b1 b1
Inner width 19,05 mm B2 B3
Roller Ø 19,05 mm A A A

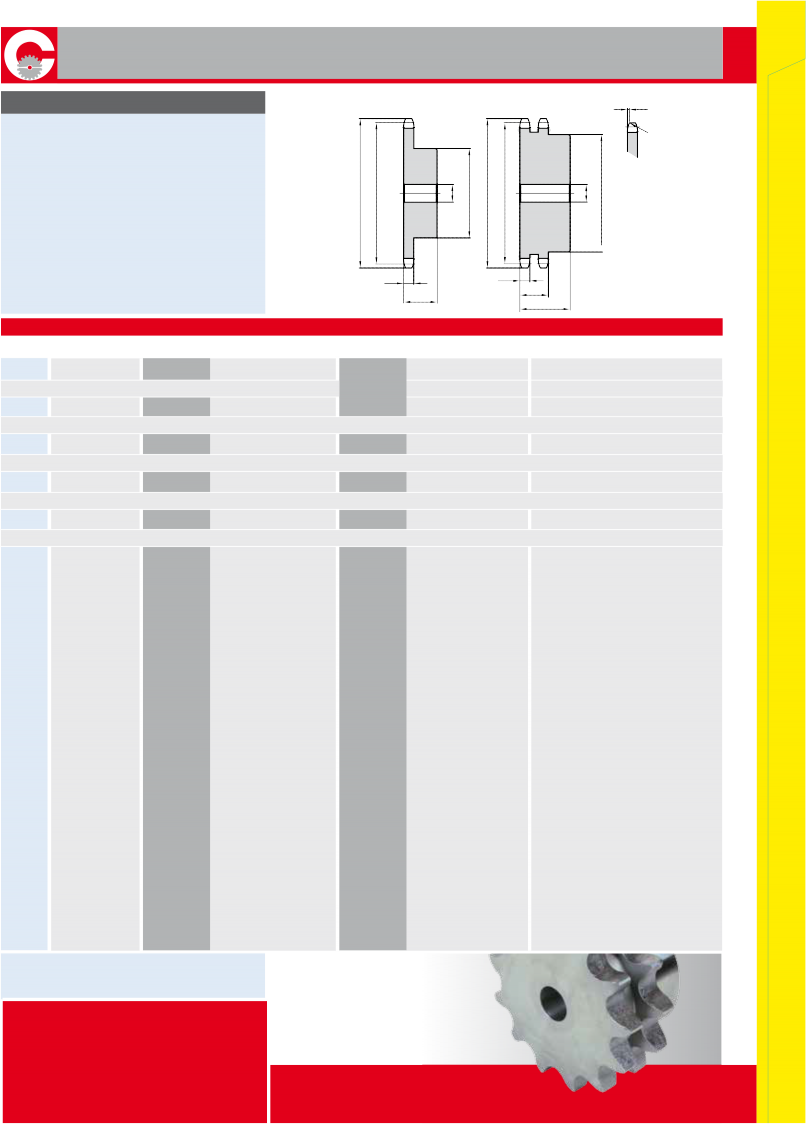

CHAIN SPROCKETS ASA 100 pitch 1” 1/4
MATERIAL C 45 UNI 7845
Z | de | dp | PART NUMBER | dm | D1 | A | kg. | PART NUMBER | dm | D1 | A | kg. | PART NUMBER | dm | D1 A | kg. |
8 | 98,10 | 82,96 | 11110008 | 53 | 20 | 40 | 0,85 | |||||||||
9 | 108,00 | 92,84 | 11110009 | 63 | 20 | 40 | 1,18 | |||||||||
10 | 117,90 | 102,74 | 11110010 | 70 | 20 | 40 | 1,57 | |||||||||
11 | 127,80 | 112,68 | 11110011 | 77 | 20 | 45 | 2,04 | 11210011 | 80 | 25 | 80 | 3,72 | ||||
12 | 137,80 | 122,68 | 11110012 | 88 | 20 | 45 | 2,58 | 11210012 | 90 | 20 | 80 | 4,66 | ||||
13 | 147,80 | 132,65 | 11110013 | 98 | 20 | 45 | 3,15 | 11210013 | 100 | 20 | 80 | 5,70 | ||||
14 | 157,80 | 142,68 | 11110014 | 108 | 20 | 45 | 3,78 | 11210014 | 110 | 20 | 80 | 6,84 | 11310014 | 110 | 30 115 | 9,71 |
15 | 167,90 | 152,72 | 11110015 | 118 | 20 | 45 | 4,47 | 11210015 | 120 | 20 | 80 | 8,08 | ||||
16 | 177,90 | 162,75 | 11110016 | 120 | 25 | 50 | 5,25 | 11210016 | 120 | 25 | 80 | 8,90 | ||||
17 | 187,90 | 172,78 | 11110017 | 120 | 25 | 50 | 5,61 | 11210017 | 120 | 25 | 80 | 9,92 | 11310017 | 420 | 30 115 | 14,60 |
18 | 198,00 | 182,85 | 11110018 | 120 | 25 | 50 | 5,99 |
| ||||||||
19 | 208,10 | 192,91 | 11110019 | 120 | 25 | 50 | 6,40 | |||||||||
20 | 218,10 | 202,95 | 11110020 | 120 | 25 | 50 | 6,82 | |||||||||
21 | 228,20 | 213,04 | 11110021 | 140 | 25 | 55 | 8,79 | |||||||||
22 | 238,30 | 223,11 | 11110022 | 140 | 25 | 55 | 9,27 | |||||||||
23 | 248,30 | 233,17 | 11110023 | 140 | 25 | 55 | 9,77 | |||||||||
24 | 258,40 | 243,23 | 11110024 | 140 | 25 | 55 | 10,30 | |||||||||
25 | 268,50 | 253,33 | 11110025 | 140 | 25 | 55 | 10,85 | |||||||||
SIMPLES DOUBLE TRIPLE
CAD drawings available on our site
Quantity, availability and prices on B2B Chiaravalli
CHAIN SPROCKETS ASA 120 27 1
pitch 1” 1/2 x 1”
CHAIN SPROCKETS
Tooth radius r3 40,5 mm
Radius width C 4,8 mm
