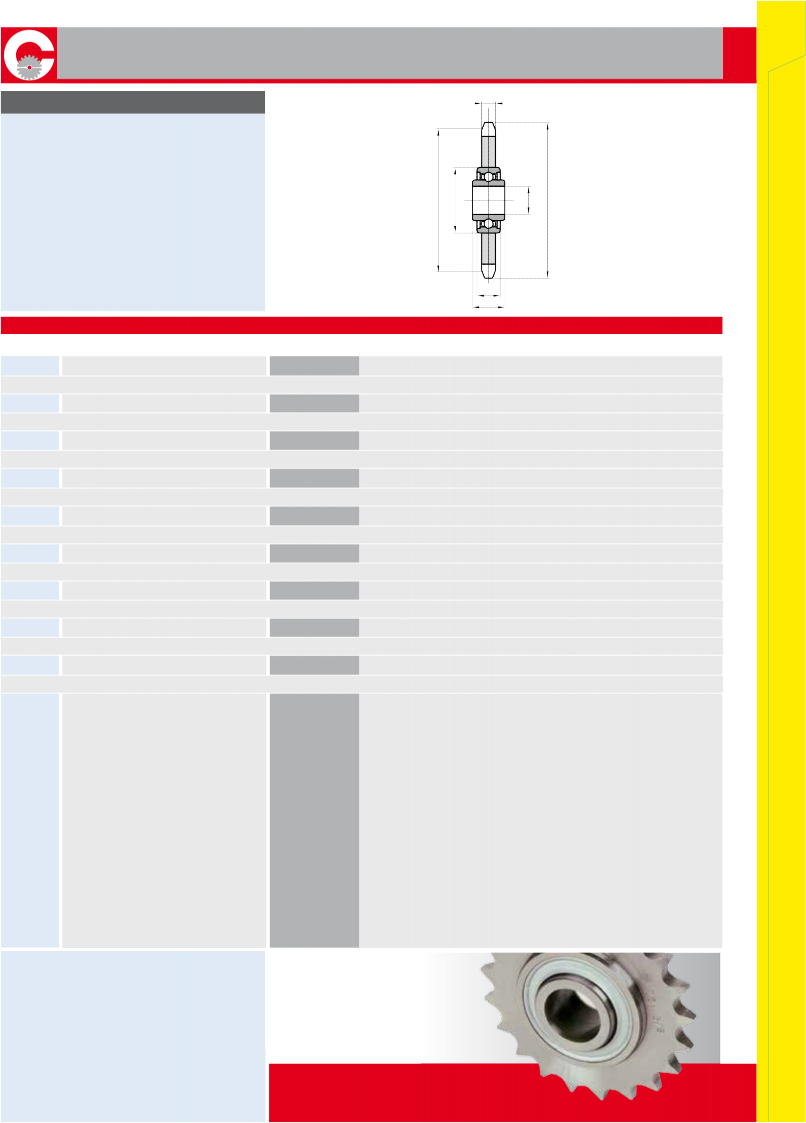

WITH BEARING A
INA KRR-AH02-C5
Our chain tensioning sprockets are supplied complete with bearing, ready for assembly in special tension or transmission points.
dp
F
D1
de
The accurate machining and stable assembly on a dual protective shield ball bearing ensure greater resistance to loads and wear. The central elongated ring of the bearing facilitates assembly on special machines of every type.
B H
Z PITCH de dp PART NUMBER A D1 F B H kg.
23 8 x 3 62,15 58,75 30008123 2,8 16
21 3/8” x 7/32” 68,00 63,90 30009121 5,3 16
18 1/2” x 1/8” 78,90 73,14 30010118 3,0 16
18 1/2” x 3/16” 78,90 73,13 30011118 4,5 16
16 1/2” x 5/16” 69,50 65,10 30012116 7,2 16
18 1/2” x 5/16” 77,80 73,14 30012118 7,2 16
14 5/8” x 3/8” 78,00 71,34 30015114 9,1 16
15 5/8” x 3/8” 83,00 76,36 30015115 9,1 16
17 5/8” x 3/8” 93,00 86,39 30015117 9,1 16
13 3/4” x 7/16” 87,50 79,59 30019113 11,1 16
15 3/4” x 7/16” 99,80 91,63 30019115 11,1 16
12 1” x 17.02 109,00 98,14 30025112 16,2 20
13 1”1/4 x 3/4” 147,80 132,65 30031113 18,5 25
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0,26
+0,13
+0
+0,1
+0
+0,1
40 12 18,3 0,13
40 12 18,3 0,15
40 12 18,3 0,18
40 12 18,3 0,20
40 12 18,3 0,17
40 12 18,3 0,22
40 12 18,3 0,23
40 12 18,3 0,27
40 12 18,3 0,36
40 12 18,3 0,34
40 12 18,3 0,47
47 14 17,7 0,72
52 15 21,0 1,64
