CHIARAVALLI
< Previous Chiaravalli transmission components | Products index | Next Chiaravalli transmission components >

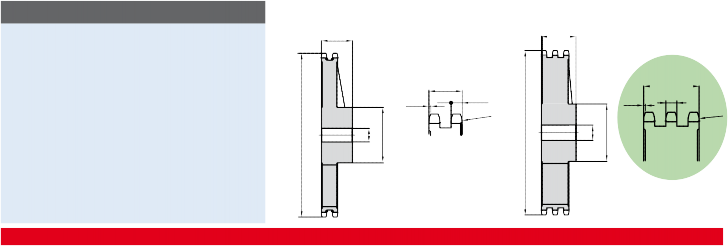

for roller chains in compliance with DIN 8187 ISO/R 606
A
B1
B1
Sprockets tooth width b1 (D-T) 10,8 mm
3
Sprockets tooth width B2
r
de
dm
de
D1
Dm
(D) 30,3 mm C C
3
r
Sprockets tooth width B3 (T) 49,8 mm
CHAIN
Pitch 19,05 mm
Inner width 11,68 mm
Roller Ø 12,07 mm
THICKNESS OF
A PLATE WHEEL
SIMPLES DOUBLE TRIPLE
Z de dp PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg.
38 | 239 | 230,69 | 12119038 | 100 | 24 | 56 | 4,75 | 12219038 | 110 | 24 | 63 | 7,50 | 12319038 | 140 | 31 | 70 | 10,00 |
45 | 282,5 | 273,1 | 12119045 | 100 | 24 | 56 | 5,90 | 12219045 | 110 | 24 | 63 | 8,30 | 12319045 | 140 | 31 | 70 | 13,30 |
57 | 354 | 345,81 | 12119057 | 100 | 30 | 56 | 6,45 | 12219057 | 120 | 30 | 63 | 10,3 | 12319057 | 140 | 39 | 70 | 15,25 |
76 | 469,9 | 460,99 | 12119076 | 100 | 30 | 56 | 12,30 | 12219076 | 135 | 30 | 63 | 15,2 | 12319076 | 160 | 39 | 75 | 27,20 |
95 | 585,1 | 576,17 | 12119095 | 100 | 30 | 56 | 15,40 | 12219095 | 135 | 30 | 70 | 21,2 | 12319095 | 170 | 39 | 82 | 36,40 |
114 | 700,6 | 691,36 | 12119114 | 100 | 30 | 56 | 24,80 | 12219114 | 135 | 30 | 70 | 30,4 | 12319114 | 170 | 49 | 82 | 41,10 |
We do not manufacture SPROCKETS in cast iron version ASA
SIMPLE CHAIN SPROCKETS WITH DOUBLE REINFORCE
CAD drawings available on our site
Quantity, availability and prices on B2B Chiaravalli
48 CHAIN SPROCKETS IN CAST IRON GG 20 UNI 5007

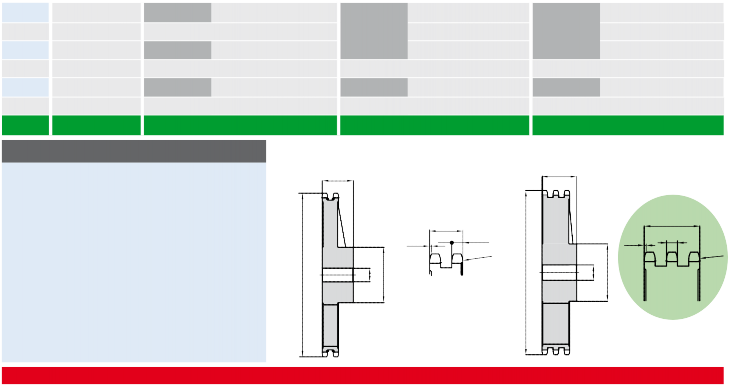

CHAIN SPROCKETS IN CAST IRON GG 20 UNI 5007 for roller chains in compliance with DIN 8187 ISO/R 606
1” x 17.02 mm
for roller chains in compliance with DIN 8187 ISO/R 606
CHAIN SPROCKETS
Radius width C 2,5 mm Sprockets tooth width B1 16,2 mm
Sprockets tooth width b1 15,8 mm
Sprockets tooth width B2 47,7 mm
Sprockets tooth width B3 79,6 mm
A
B2
r
3
C b1
A
B3
r
C b1
de
D1
dm
de
CHAIN
Pitch 25,4 mm
Inner width 17,02 mm
Roller Ø 5,88 mm
THICKNESS OF PLATE WHEEL
SIMPLES DOUBLE TRIPLE
Z 30 | de 254 | dp 243 | PART NUMBER 12125030 | dm 110 | D1 29 | A 65 | kg. 7,00 | PART NUMBER 12225030 | dm 125 | D1 39 | A 75 | kg. 13,30 | PART NUMBER 12325030 | dm 145 | D1 39 | A 90 | kg. 20,00 |
38 | 320 | 307,59 | 12125038 | 110 | 29 | 65 | 8,26 | 12225038 | 140 | 39 | 75 | 16,45 | 12325038 | 160 | 44 | 100 | 25,40 |
45 | 377 | 364,13 | 12125045 | 125 | 29 | 70 | 10,75 | 12225045 | 150 | 39 | 75 | 19,20 | 12325045 | 160 | 44 | 100 | 33,60 |
57 | 474 | 461,08 | 12125057 | 125 | 34 | 70 | 12,90 | 12225057 | 170 | 39 | 90 | 29,50 | 12325057 | 165 | 44 | 100 | 44,70 |
76 | 627 | 614,65 | 12125076 | 140 | 34 | 80 | 24,70 | 12225076 | 175 | 39 | 95 | 46,30 | 12325076 | 200 | 44 | 110 | 63,10 |
95 | 781 | 768,22 | 12125095 | 140 | 39 | 80 | 32,00 | 12225095 | 175 | 44 | 95 | 53,00 | 12325095 | 200 | 49 | 110 | 77,00 |
114 | 933 | 921,81 | 12125114 | 150 | 39 | 80 | 45,50 | 12225114 | 175 | 44 | 95 | 74,00 | 12325114 | 200 | 49 | 115 | 97,00 |
1” 1/4 x 3/4”
for roller chains in compliance with DIN 8187 ISO/R 606
CHAIN SPROCKETS
Tooth radius r3 32 mm
Radius width C 3,5 mm
Sprockets tooth width B1 18,5 mm Sprockets tooth width b1 18,2 mm Sprockets tooth width B2 54,6 mm Sprockets tooth width B3 91 mm
A
B2
r
3
C b1
A
B3
r
C b1
de
D1
dm
de
D1
Dm
CHAIN
Pitch 31,75 mm
Inner width 19,56 mm
Roller Ø 19,05 mm
THICKNESS OF PLATE WHEEL
SIMPLES DOUBLE TRIPLE
Z de dp PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg.
30 | 318,9 | 303,75 | 12131030 | 115 | 34 | 70 | 8,50 | 12231030 | 130 | 39 | 80 22,00 | 12331038 | ||||
38 | 399,6 | 384,49 | 12131038 | 125 | 34 | 70 | 12,30 | 12231038 | 140 | 44 | 90 | 24,80 | 170 | 55 | 110 52,00 | |
45 | 470,3 | 455,17 | 12131045 | 125 | 34 | 70 | 18,00 | 12231045 | 140 | 44 | 90 | 32,00 | ||||
57 | 591,5 | 576,36 | 12131057 | 135 | 39 | 80 | 25,60 | 12231057 | 160 | 49 | 100 43,00 | 12331057 | 180 | 62 | 125 71,50 | |
76 | 783,5 | 768,32 | 12131076 | 140 | 49 | 90 | 29,10 | 12231076 | 180 | 55 | 100 62,50 | |||||
