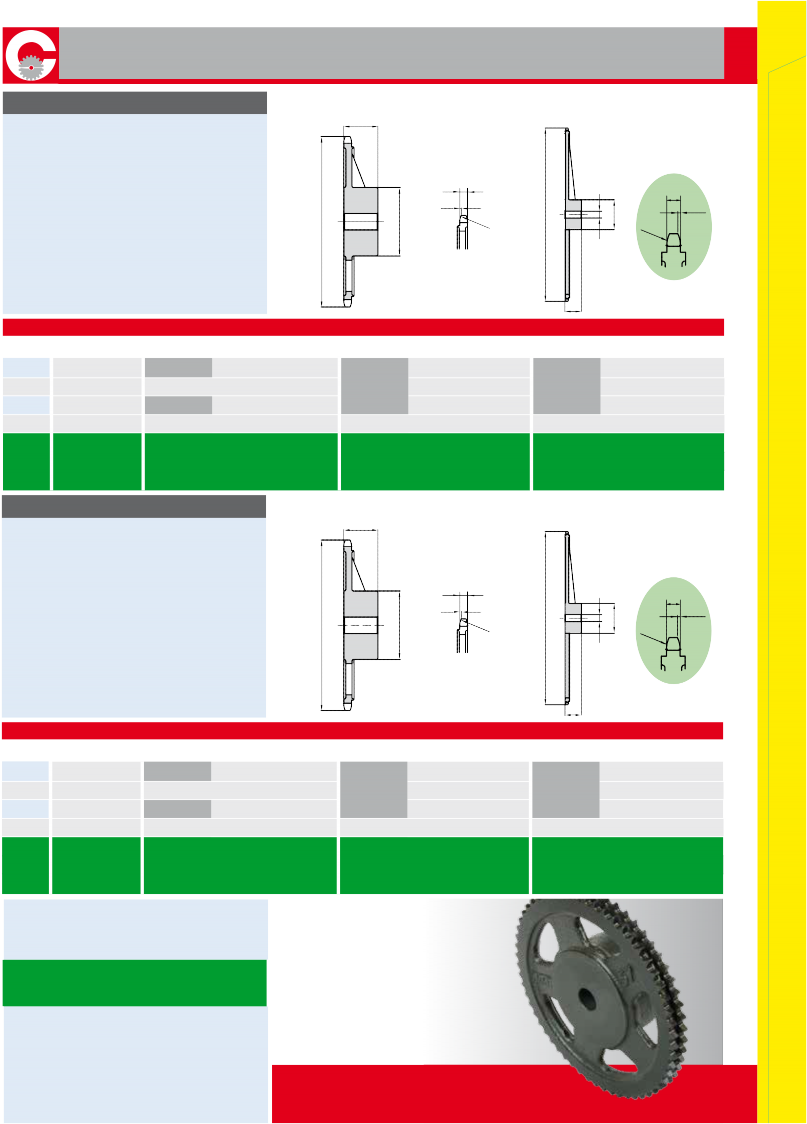

for roller chains in compliance with DIN 8187 ISO/R 606
A
3
r
r
de
dm
de
D1
Dm
1
Sprockets tooth width B1 (S) 7,2 mm B1 B Sprockets tooth width b1 (D-T) 7 mm C C Sprockets tooth width B2 (D) 21 mm
3
Sprockets tooth width B3 (T) 34,9 mm
CHAIN
Pitch 12,7 mm
Inner width 7,75 mm
Roller Ø 8,51 mm
THICKNESS OF
A PLATE WHEEL
SIMPLES DOUBLE TRIPLE
Z de dp PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg.
38 | 158,6 | 153,8 | 12112038 | 70 | 20 | 40 | 1,56 | 12212038 | 90 | 24 | 50 | 3,15 | 12312038 | 100 | 24 | 60 | 4,45 |
45 | 188,0 | 182,0 | 12112045 | 70 | 20 | 40 | 1,95 | 12212045 | 90 | 24 | 50 | 3,56 | 12312045 | 100 | 24 | 60 | 5,85 |
57 | 236,4 | 230,54 | 12112057 | 70 | 20 | 40 | 2,46 | 12212057 | 90 | 24 | 50 | 4,00 | 12312057 | 100 | 24 | 60 | 6,28 |
76 | 313,3 | 307,33 | 12112076 | 80 | 24 | 40 | 4,20 | 12212076 | 100 | 24 | 56 | 6,35 | 12312076 | 100 | 24 | 60 | 8,60 |
95 | 390,1 | 384,11 | 12112095 | 80 | 24 | 45 | 5,45 | 12212095 | 100 | 24 | 56 | 8,00 | 12312095 | 120 | 24 | 67 | 11,9 |
114 | 466,9 | 460,9 | 12112114 | 80 | 24 | 45 | 8,35 | 12212114 | 100 | 24 | 63 | 11,9 | 12312114 | 120 | 24 | 67 | 15,0 |
We do not manufacture SPROCKETS in cast iron version ASA
SIMPLE CHAIN SPROCKETS WITH DOUBLE REINFORCE
CAD drawings available on our site
Quantity, availability and prices on B2B Chiaravalli
1
CHAIN SPROCKETS IN CAST IRON GG 20 UNI 5007 47
5/8” x 3/8”
CHAIN SPROCKETS
Tooth radius r3 16 mm
Radius width C 1,6 mm
Sprockets tooth width B1 (S) 9,1 mm Sprockets tooth width b1 (D-T) 9 mm
CHAIN SPROCKETS IN CAST IRON GG 20 UNI 5007 for roller chains in compliance with DIN 8187 ISO/R 606
