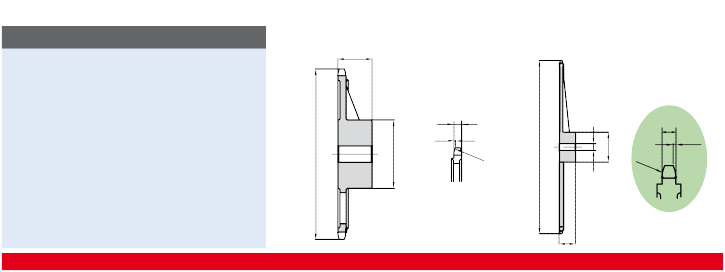

for roller chains in compliance with DIN 8187 ISO/R 606
A
3
r
r
de
dm
de
D1
Dm
1
Sprockets tooth width B1 (S) 5,3 mm B1 B Sprockets tooth width b1 (D-T) 5,2 mm C C Sprockets tooth width B2 (D) 15,4 mm
3
Sprockets tooth width B3 (T) 25,6 mm
CHAIN
CHAIN SPROCKETS IN CAST IRON GG 20 UNI 5007 for roller chains in compliance with
Pitch 9,525 mm
Inner width 5,72 mm
Roller Ø 6,35 mm
THICKNESS OF
A PLATE WHEEL
SIMPLES DOUBLE TRIPLE
Z de dp PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg. PART NUMBER dm D1 A kg.
38 | 119,5 | 115,35 | 12109038 | 70 | 20 | 32 | 1,12 | 12209038 | 80 | 24 | 40 | 1,90 | 12309038 | 90 | 24 | 56 | 3,00 |
45 | 140,7 | 136,55 | 12109045 | 70 | 20 | 32 | 1,30 | 12209045 | 80 | 24 | 40 | 2,06 | 12309045 | 90 | 24 | 56 | 3,56 |
57 | 176,9 | 172,91 | 12109057 | 70 | 20 | 32 | 1,55 | 12209057 | 80 | 24 | 40 | 2,30 | 12309057 | 90 | 24 | 56 | 3,97 |
76 | 234,9 | 230,49 | 12109076 | 70 | 20 | 32 | 2,00 | 12209076 | 80 | 24 | 40 | 3,02 | 12309076 | 100 | 24 | 56 | 4,52 |
95 | 292,5 | 288,08 | 12109095 | 80 | 20 | 40 | 3,83 | 12209095 | 90 | 24 | 45 | 4,68 | 12309095 | 100 | 24 | 56 | 6,12 |
114 | 349,6 | 345,68 | 12109114 | 80 | 20 | 40 | 4,05 | 12209114 | 95 | 24 | 45 | 5,90 | 12309114 | 100 | 24 | 56 | 7,45 |
150 | 459,2 | 454,82 | 12109150 | 90 | 21 | 45 | 4,05 | 12209150 | 100 | 24 | 50 | 5,90 | 12309150 | 125 | 24 | 60 | 9,00 |
