DIMENSIONI CPS CPS DIMENSIONS

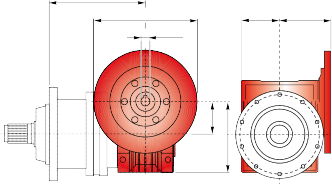

CHPL 5000 CPS - Riduttore a vite senza fine CHM in entrata CHPL 5000 CPS - CHM input worm gearboxes
CHPL | CHM 50 | CHM 63 | ||||||||
L | I | H | M | N | L | I | H | M | N | |
5001 | 309.5 | 50 | 110 | 60 | 80 | 319 | 63 | 135 | 72 | 95 |
5002 | 370.5 | 380 | ||||||||
5003 | 418.5 | 428 | ||||||||
5004 | 466.5 | 476 | ||||||||
LV
ØC M N
V V
I
ØAE
CHPL | CHM 75 | CHM 90 | ||||||||
LV | I | H | M | N | LV | I | H | M | N | |
5001 | 298 | 75 | 161 | 86 | 112.5 | 308 | 90 | 193 | 103 | 129.5 |
5002 | 359 | 369 | ||||||||
5003 | 407 | 417 | ||||||||
5004 | 455 | 465 | ||||||||
H
ØC p. ØAE P6
CHPLB 5000 CPS - Flange motori IEC CHPLB 5000 CPS - IEC Motor flanges
CHPLB | IEC 63 | IEC 71 | IEC 80 | IEC 90 | ||||||||||||
L | LP | P | ØD | L | LP | P | ØD | L | LP | P | ØD | L | LP | P | ØD | |
5002 | 285.5 | 276 | 36 | 140 | 285.5 | 276 | 36 | 160 | 285.5 | 296 | 56 | 200 | 285.5 | 296 | 56 | 200 |
5003 | 320 | 196 | 320 | 196 | 320 | 216 | 320 | 216 | ||||||||
5004 | 368 | 368 | 368 | 368 | ||||||||||||
L p.
P
ØD P4
LP
CHPLB | IEC 100 | IEC 112 | IEC 132 | IEC 160 | ||||||||||||
L | LP | P | ØD | L | LP | P | ØD | L | LP | P | ØD | L | LP | P | ØD | |
5002 | 285.5 | 306 | 66 | 250 | 285.5 | 306 | 66 | 250 | 285.5 | 340 | 100 | 300 | 285.5 | 379 | 139 | 350 |
5003 | 320 | 226 | 320 | 226 | 320 | 260 | - | |||||||||
5004 | 368 | 368 | 368 | - | ||||||||||||
140 (5002)
93 (5003 / 4)
76 (5002)
66.5 (5003 / 4)
CHPLB 5000 CPS - Alberi maschi entrata CHPL 5000 CPS - Male input shafts
L
p.
E P7
LE
LT
ØE
CHPLB | CM42 | CM65 | CP65 | ||||||||||||
L | LT | T | LE | ØE | L | LT | T | LE | ØE | L | LT | T | LE | ØE | |
5002 | 285.5 | 333 | 93 | 82 | 42 h6 | 285.5 | 377.5 | 121.5 | 105 | 65 h6 | 285.5 | 409 | 153 | 105 | 65 h6 |
5003 | 320 | 253 | 320 | 297.5 | 320 | 329 | |||||||||
5004 | 368 | 368 | 368 | ||||||||||||
140 (5002)
93 (5003 / 4)
76 (5002)
66.5 (5003 / 4)
E10
