REDUCTION BUSHINGS KIT

< Previous Chiaravalli Gearboxes and Motors | Products index | Next Chiaravalli Gearboxes and Motors >

REDUCTION BUSHINGS KIT

SINGLE

DOUBLE

TYPE ø i/ø e L Key Weight for kit kg

CHT BRM-D	11/19	40	6x6x30 *	0.06
CHT BRM-D	14/24	50	8x7x40 A	0.12
CHT BRM-D	19/28	60	8x7x50 A	0.16
CHT BRM-D	24/38	80	10x8x60 A	0.44

TYPE ø i/ø e L Key Weight for kit kg

CHT BRM-S	9/11	20	4/3x4x11 RB*	0.006
CHT BRM-S	11/14	30	5/4x6x10 RB*	0.015
CHT BRM-S	14/19	40	6x5x30 *	0.045
CHT BRM-S	19/24	50	6x5.5x20 *	0.07
			8x5.5x40 *
CHT BRM-S	24/28	60	8x9x40 *	0.08
CHT BRM-S	28/38	80	10x7x60 *	0.33
CHT BRM-S	38/42	110	12/10x10x48 RB*	0.22

CHM - COVER - REDUCTION BUSHINGS KIT

L L

* to drawing

Tongue acc. to UNI 6604 - DIN 6885 Quenched

ø i ø i

ø e ø e

Quantity, availability and prices with Chiaravalli B2B

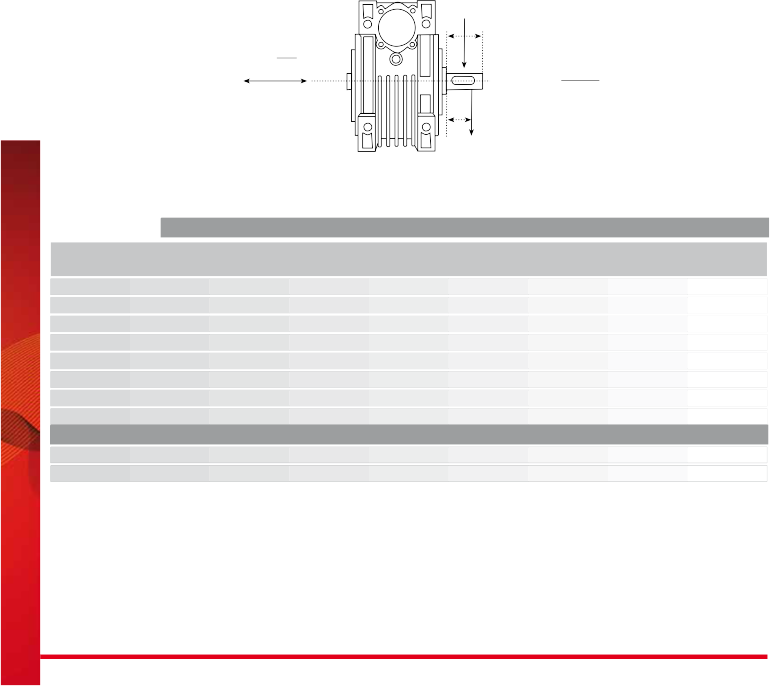

The loads indicated are valid for all application directions.

The maximum allowable axial loads are equal to 1/5 of the radial load value shown in the table when applied with the same radial load; if this is not the case, please contact our technical office. If double output shafts are used, the sum of radial loads applicable to the centre lines of the two ends of the shaft must not exceed the value shown in the table below.

The radial loads related to the output speed (n2)=10 are the maximum loads supported by the gear.

a GEAR CONSTANT

b GEAR CONSTANT

x LOAD DISTANCE FROM SHAFT SHOULDER IN MM. FRX RADIAL LOAD IN POSITION X (IN N)

FR RADIAL LOAD (N) FA AXIAL LOAD (N)

FA = 1 FR 5

= =

FRX

FRX = FR

a b+x

CHM - RADIAL LOADS ON THE OUTPUT SHAFT

SIZES

Output speed (n2)	025	030	040	050	063	075	090	110	130	150
400	390	530	1020	1400	1830	2160	2390	3530	3950	5290
250	460	620	1200	1650	2150	2520	2800	4130	4610	6140
150	550	740	1420	1960	2540	2990	3310	4890	5470	7300
100	630	850	1620	2250	2910	3430	3800	5600	6260	8330
60	740	1000	1920	2660	3450	4060	4500	6640	7420	9800
40	850	1150	2200	3050	3950	4650	5150	7600	8500	11330
25	990	1350	2570	3570	4620	5440	6020	8890	9940	13250
10	1350	1830	3490	4840	6270	7380	8180	12000	13500	18000
CONSTANTS’ VALUES
a	50	65	84	101	120	131	162	176	188	215
b	38	50	64	76	95	101	122	136	148	174

= =

FRX = FR

a b+x

X FRX

030		040	050	063 075 090			110		130 150
CONSTANTS’ VALUES
a	86	106	129	159	192	227	2	66	314	350
b	76	94	114	139	167	202	2	36	274	310
FR max	210	350	490	700	980	270 1		00	2100	2800

SIZES

CHM - RADIAL LOADS ON THE CENTRE LINE OF THE INPUT SHAFT

Quantity, availability and prices with Chiaravalli B2B

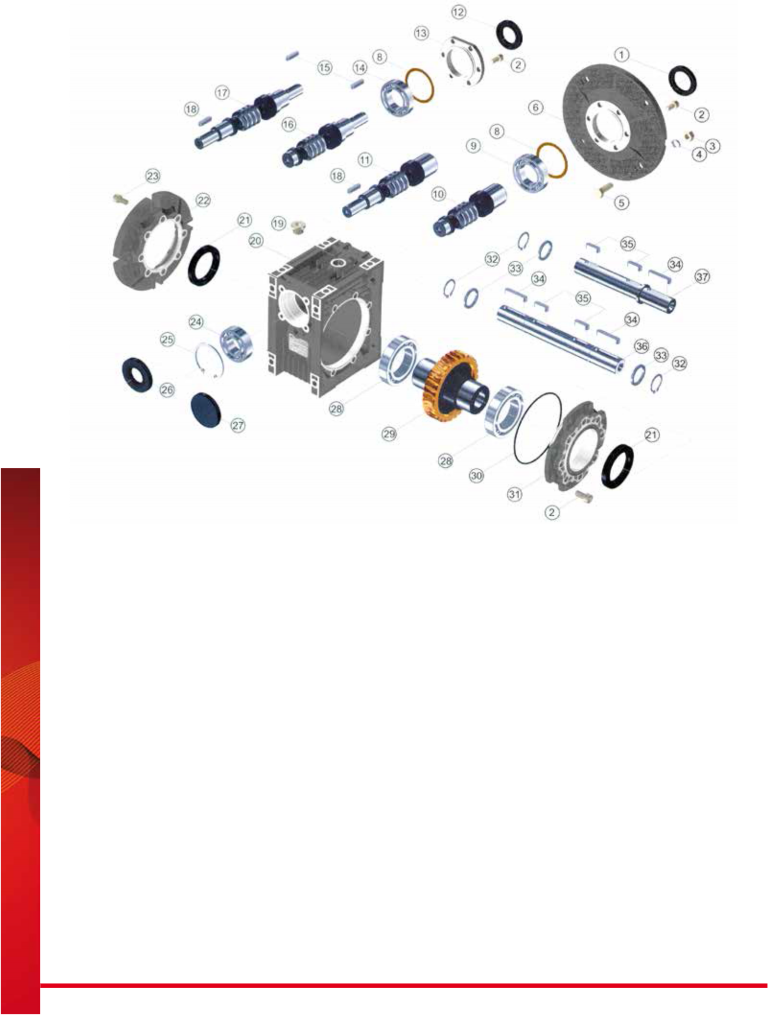

1	OIL SEAL	20	CASING
2	TORX SCREW	21	OIL SEAL
3	NUT	22	OUTPUT FLANGE
4	WASHER	23	EMBEDDED HEXAGONAL-HEAD SCREW
5	HEXAGONAL-HEAD SCREW	24	BEARING
6	MOTOR CONNECTION FLANGE	25	SEEGER
8	ADJUST SPACER	26	OIL SEAL
9	BEARING	27	CAP
10	HOLE INPUT WORM	28	BEARING
11	HOLE INPUT AND SHAFT OUTPUT WORM	29	WORM WHEEL
12	OIL SEAL	30	O-RING
13	INPUT COVER	31	OUTPUT COVER
14	BEARING	32	SEEGER
15	KEY	33	SPACER
16	SHAFT INPUT WORM	34	KEY
17	DOUBLE EXTENDED INPUT SHAFT WORM	35	KEY
18	KEY	36	DOUBLE OUTPUT SHAFT
19	OIL PLUG	37	SINGLE OUTPUT SHAFT

CHM - EXPLODED DRAWING AND SPARE PARTS LIST
