CHPC/CHM - PERFORMANCE WITH 4-POLE MOTORS 1400 REVS. INPUT
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
90 15.6 0.18 61
150 | 9.3 | 0.18 | 46 |
180 | 7.8 | 0.18 | 46 |
240 | 5.8 | 0.18 | 40 |
300 | 4.7 | 0.18 | 36 |
120 11.7 0.18 52
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
90 15.6 0.37 153
120 11.7 0.37 190
CHPC63 CHM040
CHPC71 CHM075
150 9.3 0.37 220
180 7.8 0.37 236
180 7.8 0.25 159
240 5.8 0.25 208
300 4.7 0.25 210
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
90 15.6 0.18 69
120 11.7 0.18 85
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
90 15.6 0.75 307
120 11.7 0.55 278
CHPC63 CHM050
150 9.3 0.18 89
180 7.8 0.18 88
240 5.8 0.18 76
300 4.7 0.18 65
CHPC80 CHM075
150 9.3 0.55 260
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
90 15.6 0.25 97
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
180 7.8 0.37 260
CHPC71 CHM050
120 11.7 0.25 110
150 9.3 0.25 112
CHPC71 CHM090
240 5.8 0.37 320
300 4.7 0.37 345
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
150 9.3 0.18 101
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
90 15.6 0.75 320
43
CHPC63 CHM063
180 7.8 0.18 115
240 5.8 0.18 136
300 4.7 0.18 121
CHPC80 CHM090
120 11.7 0.75 397
CHPC/CHM - PERFORM. WITH 4-POLE MOTORS - 1400 REVS. INPUT
150 9.3 0.75 426
180 7.8 0.75 425
240 5.8 0.55 374
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
90 15.6 0.37 145
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
120 11.7 0.75 421
CHPC71
90 15.6 0.25 98
120 11.7 0.37 184
CHM063 | 150 | 9.3 | 0.37 | 192 |
150 | 9.3 | 0.25 | 129 | |
180 | 7.8 | 0.25 | 164 | |
240 | 5.8 | 0.25 | 139 | |
300 | 4.7 | 0.25 | 128 |
120 11.7 0.25 124
CHPC80 CHM110
150 9.3 0.75 496
180 7.8 0.75 569
240 5.8 0.75 617
300 4.7 0.55 585
TYPE i=ratio n2 r/min Kw=P1 Nm=T2
98 14.3 1.50 679
CHPC90 CHM110
122.5 11.4 1.50 801
147 9.5 1.50 810
147 | 9.5 | 1.10 | 595 |
196 | 7.1 | 1.10 | 660 |
i=ratio | n2 r/min | Kw=P1 | Nm=T2 |
98 | 14.3 | 1.50 | 679 |
122.5 | 11.4 | 1.50 | 813 |
147 | 9.5 | 1.50 | 917 |
196 | 7.1 | 1.50 | 1013 |
245 | 5.7 | 1.10 | 848 |
TYPE
The choice of power installed is tied to the unification of the motors, therefore it is sometimes in exuberance compared to the gear; always verify the maximum torque indicated when making the selection and if in doubt please contact our technical office.
CHPC90 CHM130
E1 E1
I 2
I
V V
D
R
P1
I1
CHPC CHM | B | F | D(H7) | G | H | R1 | R | L | I | I2 | C | I1 | N(h8) | E1 | P | Q | S | T |
63+040 | 70 | 100 | 18 | 121.5 | 43 | 117 | 78 | 50 | 40 | 40 | 71 | 75 | 60 | 36.5 | 6.5 | 87 | 55 | 71.5 |
63+050 | 80 | 120 | 25 | 144 | 49 | 127 | 92 | 60 | 50 | 40 | 85 | 85 | 70 | 43.5 | 8.5 | 100 | 64 | 84 |
71+050 | 80 | 120 | 25 | 144 | 49 | 135 | 92 | 60 | 50 | 50 | 85 | 85 | 70 | 43.5 | 8.5 | 100 | 64 | 84 |
63+063 | 100 | 144 | 25 | 174 | 67 | 142 | 112 | 72 | 63 | 40 | 103 | 95 | 80 | 53 | 8.5 | 110 | 80 | 102 |
71+063 | 100 | 144 | 25 | 174 | 67 | 150 | 112 | 72 | 63 | 50 | 103 | 95 | 80 | 53 | 8.5 | 110 | 80 | 102 |
71+075 | 120 | 172 | 28 | 205 | 72 | 167,5 | 120 | 86 | 75 | 50 | 112 | 115 | 95 | 57 | 11 | 140 | 93 | 119 |
80+075 | 120 | 172 | 28 | 205 | 72 | 187,5 | 120 | 86 | 75 | 63 | 112 | 115 | 95 | 57 | 11 | 140 | 93 | 119 |
71+090 | 140 | 208 | 35 | 238 | 74 | 184,5 | 140 | 103 | 90 | 50 | 130 | 130 | 110 | 67 | 13 | 160 | 102 | 135 |
80+090 | 140 | 208 | 35 | 238 | 74 | 204,5 | 140 | 103 | 90 | 63 | 130 | 130 | 110 | 67 | 13 | 160 | 102 | 135 |
80(90)+110 | 170 | 252.5 | 42 | 295 | - | 235 | 155 | 127.5 | 110 | 63 | 144 | 165 | 130 | 74 | 14 | 200 | 125 | 167.5 |
80(90)+130 | 200 | 292.5 | 45 | 335 | - | 255 | 170 | 147.5 | 130 | 63 | 155 | 215 | 180 | 81 | 16 | 250 | 140 | 187.5 |
44
CHPC CHM | U | V | Z | W | P1 | b | t | Weight in kg. excluding motor | |
63+040 | 6. 5 | 26 | 35 | 60 | M6x 8n. 4 | 45° | 6 | 20. 8 | 3. 9 |
63+050 | 7 | 30 | 40 | 70 | M8x 10n. 4 | 45° | 8 | 28. 3 | 5. 2 |
71+050 | 7 | 30 | 40 | 70 | M8x 10n. 4 | 45° | 8 | 28. 3 | 5. 8 |
63+063 | 8 | 36 | 50 | 85 | M8x 14n. 8 | 45° | 8 | 28. 3 | 7. 9 |
71+063 | 8 | 36 | 50 | 85 | M8x 14n. 8 | 45° | 8 | 28. 3 | 8. 5 |
71+075 | 10 | 40 | 60 | 90 | M8x 14n. 8 | 45° | 8 | 31. 3 | 11 |
80+075 | 10 | 40 | 60 | 90 | M8x 14n. 8 | 45° | 8 | 31. 3 | 12. 6 |
71+090 | 11 | 45 | 70 | 100 | M10x 18n. 8 | 45° | 10 | 38. 3 | 14. 3 |
80+090 | 11 | 45 | 70 | 100 | M10x 18n. 8 | 45° | 10 | 38. 3 | 16. 2 |
80(90)+110 | 14 | 50 | 85 | 115 | M10x 18n. 8 | 45° | 12 | 45. 3 | 39 |
80(90)+130 | 15 | 60 | 100 | 120 | M12x 21n. 8 | 45° | 14 | 48. 8 | 67. 2 |

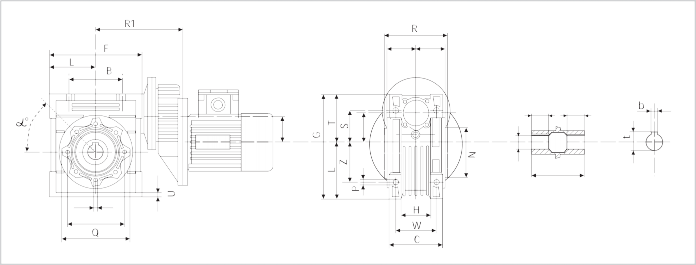

CHPC/CHM - DIMENSIONS
N.B. For the side flange and double extended input worm dimensions see the corresponding size of the CHM series. See pages 34 and 35.
