E
FA

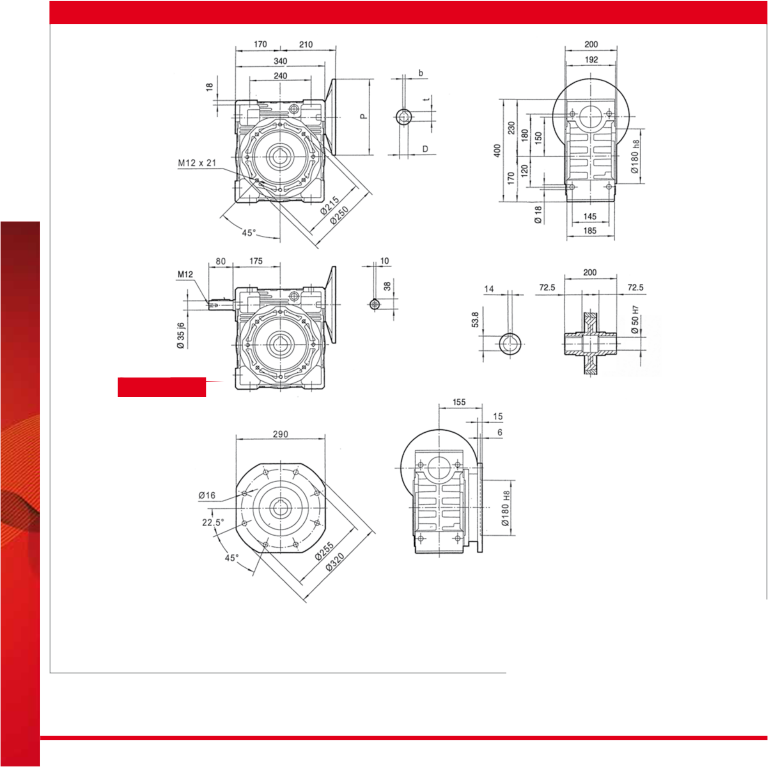

PAM IEC | P | DE8 | b | t | PAM IEC | P | DE8 | b | t |
132B5 | 300 | 38 | 10 | 41.3 | 132B14 | 200 | 38 | 10 | 41.3 |
112B5 | 250 | 28 | 8 | 31.3 | 112B14 | 160 | 28 | 8 | 31.3 |
100B5 | 250 | 28 | 8 | 31.3 | 100B14 | 160 | 28 | 8 | 31.3 |
90B5 | 200 | 24 | 8 | 27.3 |
TYPE i=ratio n2 r/min Kw=P1 Nm=T2 f.s. Possible types of motor connections
7.5 | 186.7 | 15 | 680 | 1.6 | 160 | B5 |
10 | 140.0 | 15 | 905 | 1.2 | 160 | B5 |
15 | 93.3 | 15 | 1310 | 0.9 | 160 | B5 |
20 | 70.0 | 11 | 1270 | 1.0 | 160 | B5 |
25 | 56.0 | 11 | 1520 | 0.8 | 160 | B5 |
30 | 46.7 | 7.50 | 1240 | 0.8 | 132 | B5 |
40 | 35.0 | 7.50 | 1560 | 0.9 | 132 | B5 |
50 | 28.0 | 5.50 | 1405 | 0.9 | 132 | B5 |
60 | 23.3 | 5.50 | 1610 | 0.8 | 132 | B5 |
80 | 17.5 | 4 | 1430 | 0.8 | 112/100 | B5 |
100 | 14.0 | 3 | 1300 | 0.8 | 112/100 | B5 |
CHM 150
