B8 B7

< Previous Chiaravalli Gearboxes and Motors | Products index | Next Chiaravalli Gearboxes and Motors >

B8 B7

B5 V3 V1 1 1

4 2

3 Normal position

Size Fill quantity in litres

		STAND	ARD	V	6/V3
CHC	16/20	0,4			0,6
CH	C 25	0,5			0,7
CH	C 30	0,8			1,1
CHC	35/40	1,2			1,6

The CHC gearboxes are supplied with Shell Tivela S 320 oil for STANDARD position, when mounted in V6/V3 it is necessary to add the correct quantity of oil.

CHC 20	(CHC16)*	IEC
i	63B5	71B5 71B14	80B5 80B14
45,9	B
40,1	B
35,5	B
28,5	B
23,6	B
19,8	B
17,9	B
13,8	B
11,9	B
9,8	B
7,7	B
5,7	B
4,6	B	B

CHC 30 IEC

80B5 90B5 100/112B5

80B14 90B14 100/112B14

58,1 B

50,0 B

43,7 B

38,7 B

34,6 B

30,6 B

25,0 B

21,7 B B

17,3 B B

15,0 B B

12,3 B

10,2 B

7,9 B

5,5 B

CHC 25 IEC
i	71B5 71B14	80B5 80B14	90B5 90B14
46,5	B
40,6	B
35,9	B
28,9	B
23,9	B
20,1		B
17,1		B
14,8		B
12,1		B
9,9		B
7,4		B
5,5		B

CHC 35 CHC 40 IEC

80B5 90B5 100/112B5

80B14 90B14 100/112B14

58,1 B

50,0 B

43,7 B

34,6 B B

28,3 B B

21,7 B B 11

17,3 B B

15,1 B B

12,3 B

10,2 B

7,9 B

5,5 B

* CHC 16 Only on request Ratios are rounded

B= Metal reduction bushing

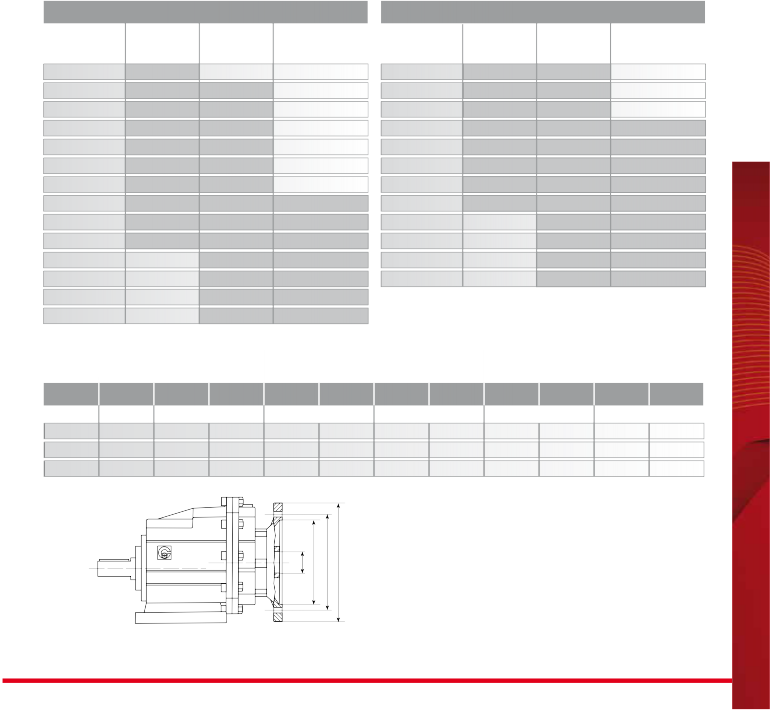

IEC	63B5	71B5		71B14	80B5		80B14	90B5		90B14	100B5		100B14	112B5		112B14
DE8	11		14			19			24			28			28
P	140	160		105	200		120	200		140	250		160	250		160
M	115	130		85	165		100	165		115	215		130	215		130
N	95	110		70	130		80	130		95	180		110	180		110

CHC - RATIO AND IEC MOTOR ADAPTERS

D N M P

P1n Kw	n2 r/min	M2n Nm	i	fs pag
0.12	30.5	36	45.9	3.3	CHC20	63B5	63A4	16
	34.9	32	40.1	3.8	(CHC16)
	39.5	28	35.5	4.3
	49.1	22	28.5	5.4
	59.4	18.5	23.6	6.5
	70.6	15.6	19.8	7.7
	78.4	14.0	17.9	7.1
	101	10.8	13.8	9.2
	118	9.4	11.9	12.8
	143	7.7	9.8	13.0
	181	6.1	7.7	13.2
	246	4.5	5.7	13.4
0.18	19.6	84	45.9	1.4	CHC20	71B5/B14	71A6	16
	22.4	74	40.1	1.6	(CHC16)
	25.4	65	35.5	1.8
	31.6	52	28.5	2.3
	30.5	54	45.9	2.2	CHC20	63B5	63B4	16
	34.9	47	40.1	2.5	(CHC16)
	39.5	42	35.5	2.9
	49.1	34	28.5	3.6
	59.4	28	23.6	4.3
	70.6	23	19.8	5.1
	78.4	21	17.9	4.8
	101	16.3	13.8	6.1
	118	14.0	11.9	8.6
	143	11.6	9.8	8.6
	181	9.1	7.7	8.8
	246	6.7	5.7	8.9
	19.4	85	46.5	2.3	CHC25	71B5/B14	71A6	17
	22.2	74	40.6	2.7
	25.1	66	35.9	3.0
	31.2	53	28.9	3.8
	30.1	55	46.5	3.7	CHC25	63B5	63B4	17
	34.5	48	40.6	4.2
0.25	19.6	117	45.9	1.0	CHC20	71B5/B14	71B6	16
	22.4	102	40.1	1.2	(CHC16)
	25.4	90	35.5	1.3
	31.6	73	28.5	1.7
	30.5	75	45.9	1.6	CHC20	71B5/B14	71A4	16
	34.9	66	40.1	1.8	(CHC16)
	39.5	58	35.5	2.1
	49.1	47	28.5	2.6
	59.4	39	23.6	3.1
	70.6	32	19.8	3.7

CHC - GEAR UNIT SELECTION TABLES

Quantity, availability and prices with Chiaravalli B2B

P1n Kw	n2 r/min	M2n Nm	i	fs pag
0.25	78.4	29	17.9	3.4	CHC20	71B5/B14	71A4	16
	101	23	13.8	4.4	(CHC16)
	118	19.5	11.9	6.2
	143	16.1	9.8	6.2
	181	12.6	7.7	6.3
	246	9.3	5.7	6.4
	19.4	118	46.5	1.7	CHC25	71B5/B14	71B6	17
	22.2	103	40.6	1.9
	25.1	91	35.9	2.2
	31.2	74	28.9	2.7
	30.1	76	46.5	2.6	CHC25	71B5/B14	71A4	17
	34.5	66	40.6	3.0
	39.0	59	35.9	3.4
	48.5	47	28.9	4.2
0.37	30.5	111	45.9	1.1	CHC20	71B5/B14	71B4	16
	34.9	97	40.1	1.2	(CHC16)
	39.5	86	35.5	1.4
	49.1	69	28.5	1.7
	59.4	57	23.6	2.1
	70.6	48	19.8	2.5
	78.4	43	17.9	2.3
	101	33	13.8	3.0
	118	29	11.9	4.2
	143	24	9.8	4.2
	181	19	7.7	4.3
	246	14	5.7	4.4
	19.4	175	46.5	1.1	CHC25	80B4/B14	80A6	17
	22.2	153	40.6	1.3
	25.1	135	35.9	1.5
	31.2	109	28.9	1.8
	30.1	113	46.5	1.8	CHC25	71B5/B14	71B4	17
	34.5	98	40.6	2.0
	39	87	35.9	2.3
	48.5	70	28.9	2.9
	58.7	58	23.8	3.5
	81.9	41	17.1	3.9
	15.5	219	58.1	1.4	CHC30	80B5/B14	80A6	18
	18.0	189	50.0	1.6
	21.0	165	43.7	1.8
0.55	101	50	13.8	2.0	CHC20	80B5/B14	80A4	16
	118	43	11.9	2.8	(CHC16)
	143	35	9.8	2.8
	181	28	7.7	2.9
	246	20	5.7	2.9

CHC - GEAR UNIT SELECTION TABLES

P1n Kw	n2 r/min	M2n Nm	i	fs pag
0.55	19.4	260	46.5	0.8	CHC25	80B5/B14	80B6	17
	22.2	227	40.6	0.9
	25.1	201	35.9	1.0
	31.2	162	28.9	1.2
	37.7	134	23.9	1.5
	30.1	167	46.5	1.2	CHC25	80B5/B14	80A4	17
	34.5	146	40.6	1.4
	39	129	35.9	1.5
	48.5	104	28.9	1.9
	58.7	86	23.9	2.3
	69.7	72	20.1	2.8
	81.9	62	17.1	2.6
	94.5	53	14.8	3.7
	15.5	325	58.1	0.9	CHC30	80B5/B14	80B6	18
	18.0	280	50.0	1.1
	21.0	245	43.7	1.2
	23.0	217	38.7	1.4
	24.0	209	58.1	1.4	CHC30	80B5/B14	80A4	18
	28.0	180	50.0	1.7
	32.0	158	43.7	1.9
	36.0	139	38.7	2.2
0.75	101	68	13.8	1.5	CHC20	80B5/B14	80B4	16
	118	58	11.9	2.1	(CHC16)
	143	48	9.8	2.1
	181	38	7.7	2.1
	246	28	5.7	2.1
	302	23	4.6	2.6
	30.1	228	46.5	0.9	CHC25	80B5/B14	80B4	17
	34.5	199	40.6	1.0
	39	176	35.9	1.1
	48.5	142	28.9	1.4
	58.7	117	23.9	1.7
	69.7	99	20.1	2.0
	81.9	84	17.1	1.9
	94.5	73	14.8	2.7
	116.2	59	12.1	3.4
	141	49	9.9	3.3
	189	36	7.4	3.3
	257	27	5.5	3.7
	23.3	296	38.7	1.0	CHC30	90B5/B14	90S6	18
	26.0	264	34.6	1.1
	29.4	234	30.6	1.3
	36	191	25.0	1.6
	24.0	285	58.1	1.1	CHC30	80B5/B14	80B4	18

CHC - GEAR UNIT SELECTION TABLES

Quantity, availability and prices with Chiaravalli B2B

P1n Kw	n2 r/min	M2n Nm	i	fs pag
0.75	28.0	246	50.0	1.2	CHC30	80B5/B14	80B4	18
	32.0	215	43.7	1.4
	36.2	190	38.7	1.6
	40.5	160	34.6	1.8
	45.8	150	30.6	2.0
	56.0	123	25.0	2.4
	64.5	107	21.7	2.6
	15.5	444	58.1	1.1	CHC35	90B5/B14	90S6	19
	18.0	382	50.0	1.3	CHC40
	20.6	334	43.7	1.5
	26.0	264	34.6	1.9
	24.0	285	58.1	1.8	CHC35	80B5/B14	80B4	19
	28.0	246	50.0	2.0	CHC40
	32.0	215	43.7	2.3
1.1	101	99	13.8	1.0	CHC20	80B5/B14	80C4	16
	118	86	11.9	1.4	(CHC16)
	143	71	9.8	1.4
	181	56	7.7	1.4
	246	41	5.7	1.5
	302	33	4.6	1.8
	48.5	208	28.9	1.0	CHC25	80B5/B14	80C4	17
	58.7	172	23.9	1.2
	69.7	145	20.1	1.4	CHC25	90B5/B14	90S4	17
	81.9	123	17.1	1.3
	94.5	107	14.8	1.9
	116	87	12.1	2.3
	141	72	9.9	2.2
	189	53	7.4	2.3
	257	39	5.5	2.5
	32.0	315	43.7	0.9	CHC30	90B5/B14	90S4	18
	36.2	279	38.7	1.1
	40.4	249	34.6	1.2
	45.8	220	30.6	1.4
	56.0	180	25.0	1.7
	64.5	157	21.7	1.8
	81.0	125	17.3	2.2
	24.0	418	58.1	1.2	CHC35	90B5/B14	90S4	19
	28.0	360	50.0	1.4	CHC40
	32.0	315	43.7	1.6
	40.5	249	34.6	2.0
	49.5	204	28.3	2.5
	64.5	157	21.7	3.1
	81.0	125	17.3	3.8
	92.7	108	15.1	4.2

CHC - GEAR UNIT SELECTION TABLES

P1n Kw	n2 r/min	M2n Nm	i	fs pag
1.5	69.7	197	20.1	1.0	CHC25	90B5/B14	90L4	17
	81.9	168	17.1	1.0
	94.5	145	14.8	1.4
	116	118	12.1	1.7
	141	98	9.9	1.6
	189	73	7.4	1.7
1.5	257	54	5.5	1.9	CHC25	90B5/B14	90L4	17
	40.4	340	34.6	0.9	CHC30	90B5/B14	90L4	18
	45.8	300	30.6	1.0
	56	245	25.0	1.2
	64.5	214	21.7	1.3
	81.0	170	17.3	1.6
	93.0	148	15.0	1.8
	113.8	122	12.3	2.1
	136.0	101	10.3	2.4
	177	78	7.9	2.3
	255	54	5.5	2.8
	26.0	529	34.6	0.9	CHC35	100B5/B14	100L6	19
	31.8	432	28.3	1.2	CHC40
	41,5	333	21.7	1.4
	24.0	571	58.1	0.9	CHC35	90B5/B14	90L4	19
	28.0	491	50.0	1.0	CHC40
	32.0	430	43.7	1.2
	40.4	340	34.6	1.5
	49.5	278	28.3	1.8
	64.5	214	21.7	2.2
	81.0	170	17.3	2.8
	92.7	148	15.1	3.1
2.2	81.0	250	17.3	1.1	CHC30	100B5/B14	100LA4	18
	93.0	217	15.0	1.2
	113.8	178	12.3	1.5
	136.0	148	10.2	1.6
	177	114	7.9	1.6
	255	79	5.5	1.9
	41.5	488	21.7	1.0	CHC35	112B5/B14	112M6	19
	52.0	388	17.3	1.2	CHC40
	59.6	338	15.1	1.4
	40.4	499	34.6	1.0	CHC35	100B5/B14	100LA4	19
	49.5	408	28.3	1.2	CHC40
	64.5	314	21.7	1.5
	81.0	250	17.3	1.9
	92.7	217	15.1	2.1
	113.8	178	12.3	2.6
	136.0	148	10.2	3.0

CHC - GEAR UNIT SELECTION TABLES

Quantity, availability and prices with Chiaravalli B2B

P1n Kw	n2 r/min	M2n Nm	i	fs pag
	177	114	7.9	2.3	CHC40
	255	79	5.5	2.9
3	93.0	296	15.0	0.9	CHC30	100B5/B14	100LB4	18
	113.8	243	12.3	1.1
	136.0	202	10.2	1.2
	177	156	7.9	1.2
3	255	108	5.5	1.4	CHC30	100B5/B14	100LB4	18
	49.5	556	28.3	0.9	CHC35	100B5/B14	100LB4	19
	64.5	428	21.7	1.1	CHC40
	81.0	340	17.3	1.4
	92.7	296	15.1	1.6
	113.8	243	12.3	1.9
	136	202	10.2	2.2
	177	156	7.9	1.7
	255	108	5.5	2.1
4	177	208	7.9	0.9	CHC30	112B5/B14	112M4	18
	255	144	5.5	1.0
	113.8	324	12.3	1.4	CHC35	112B5/B14	112M4	19
	136.0	269	10.2	1.6	CHC40
	177	208	7.9	1.3
	255	144	5.5	1.6

CHC - GEAR UNIT SELECTION TABLES

M2max Nm	n1 r/min	i	P1n Kw	n2 r/min
120	1400	45.9	0.40	30.5	CHC20
120	1400	40.1	0.46	34.9	(CHC16)
120	1400	35.5	0.52	39.5
120	1400	28.5	0.64	49.1
120	1400	23.6	0.78	59.4
120	1400	19.8	0.92	70.6
90	1400	17.9	0.77	78.4
90	1400	13.8	1.00	101
120	1400	11.9	1.54	118
120	1400	9.8	1.87	143
80	1400	7.7	1.58	181
70	1400	5.7	1.88	246
70	1400	4.6	2.31	302
200	1400	46.5	0.66	30.1	CHC25
200	1400	40.6	0.75	34.5
200	1400	35.9	0.85	39.0
200	1400	28.9	1.06	48.5
200	1400	23.9	1.28	58.7
200	1400	20.1	1.52	69.7
140	1400	17.1	1.25	81.9
200	1400	14.8	2.06	94.6
200	1400	12.1	2.53	116
200	1400	9.9	3.08	141
120	1400	7.4	2.49	190
100	1400	5.5	2.80	257
300	1400	58.1	0.79	24.0	CHC30
300	1400	50.0	0.92	28.0
300	1400	43.7	1.04	32.0
300	1400	38.7	1.18	36.1
300	1400	34.6	1.32	40.5
300	1400	30.6	1.50	45.8
300	1400	25.0	1.83	56.0
280	1400	21.7	1.96	64.5
280	1400	17.3	2.47	81.0
260	1400	15.0	2.64	93.0
260	1400	12.3	3.21	113.8
240	1400	10.2	3.57	137.0
180	1400	7.9	3.46	176
150	1400	5.5	4.17	255
500	1400	58.1	1.31	24.0	CHC35
500	1400	50.0	1.53	28.0	CHC40
500	1400	43.7	1.75	32.0
500	1400	34.6	2.21	40.5
500	1400	28.3	2.70	49.5
480	1400	21.7	3.37	64.5
480	1400	17.3	4.23	81.0
460	1400	15.1	4.66	93.0
460	1400	12.3	5.68	113.8
440	1400	10.2	6.54	136.0
260	1400	7.9	5.01	177
230	1400	5.5	6.41	255
