REDUCTION BUSHINGS KIT

< Previous Chiaravalli Gearboxes and Motors | Products index | Next Chiaravalli Gearboxes and Motors >

REDUCTION BUSHINGS KIT

SINGLE

TYPE ø i/ø e L tongues Weight for kit kg

DOUBLE

CHT BRM-D	11/19	40	6 x 6 x 30 *	0.06
CHT BRM-D	14/24	50	8 x 7 x 40 A	0.12
CHT BRM-D	19/28	60	8 x 7 x 50 A	0.16
CHT BRM-D	24/38	80	10 x 8 x 60 A	0.44

TYPE ø i/ø e L tongues Weight for kit kg

CHT BRM-S	9/11	20	4/3 x 4 x 11 RB*	0.006
CHT BRM-S	11/14	30	5/4 x 6 x 10 RB*	0.015
CHT BRM-S	14/19	40	6 x 5 x 30 *	0.045
CHT BRM-S	19/24	50	6 x 5.5 x 20 *	0.07
			8 x 5.5 x 40 *
CHT BRM-S	24/28	60	8 x 9 x 40 *	0.08
CHT BRM-S	28/38	80	10 x 7 x 60 *	0.33
CHT BRM-S	38/42	110	12/10 x 10 x 48 RB*	0.22

CH COVER - REDUCTION BUSHINGS KIT

* to drawing

L L

Tongue acc. to UNI 6604 - DIN 6885 Quenched

ø i ø i

ø e ø e

Quantity, availability and prices with Chiaravalli B2B

23 19

33 20

21 25

12 11

15 8

7 3

40 5

39 36

40 37

39 37

36 35

28 27

31 40

32 39

20 38

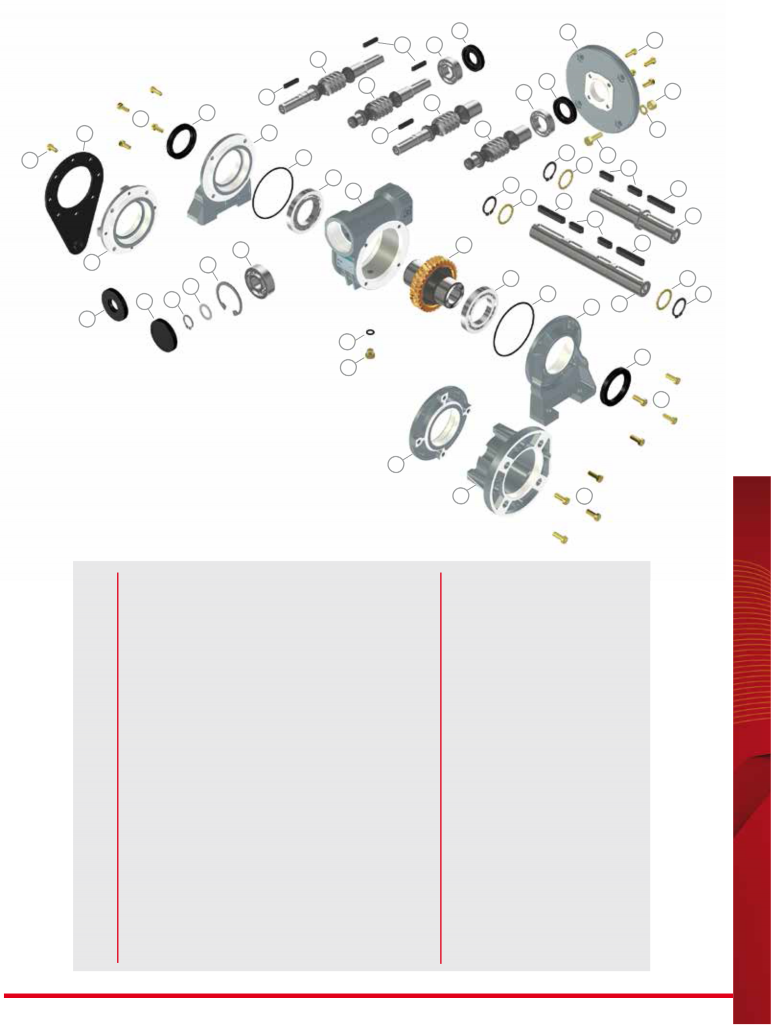

CH 03/04/05 EXPLODED DRAWING AND SPARE PARTS LIST

22 23

1	OIL SEAL	21	SIDE COVER
2	SCREW	22	OUTPUT FLANGE
3	NUT	23	SCREW
4	WASHER	24	BEARING
5	SCREW	25	SEEGER
6	MOTOR CONNECTION FLANGE	26	SPACER
7	BEARING	27	SEEGER
8	HOLE INPUT WORM	28	CAP
9	HOLE INPUT AND SHAFT OUTPUT WORM	29	OIL SEAL
10	OIL SEAL	30	WORM WHEEL
11	BEARING	31	BEARING
12	KEY	32	O-RING
13	SHAFT INPUT WORM	33	BRACCIO DI REAZIONE
14	DOUBLE EXTENDED INPUT SHAFT WORM	34	SCREW
15	KEY	35	SINGLE OUTPUT SHAFT
16	OIL PLUG	36	KEY
17	GASKET	37	KEY
18	CASING	38	DOUBLE OUTPUT SHAFT
19	OIL SEAL	39	SPACER
20	FOOT COVER	40	SEEGER

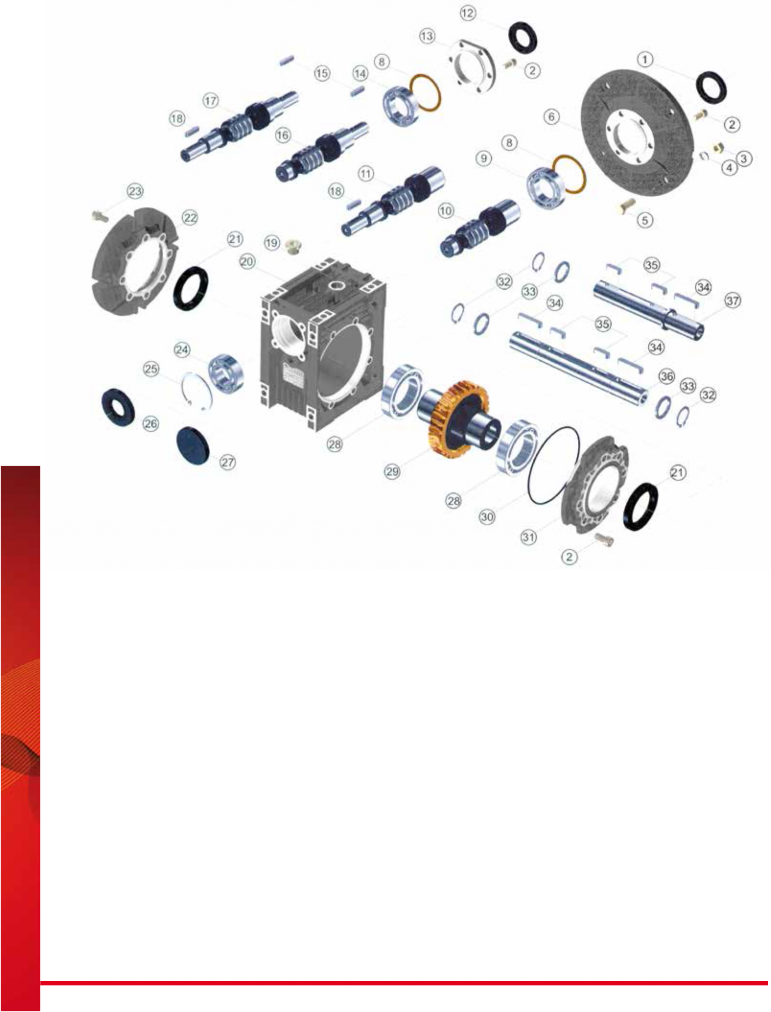

CH 06/07/08 EXPLODED DRAWING AND SPARE PARTS LIST

1	OIL SEAL	20	CASING
2	TORX SCREW	21	OIL SEAL
3	NUT	22	OUTPUT FLANGE
4	WASHER	23	EMBEDDED HEXAGONAL-HEAD SCREW
5	HEXAGONAL-HEAD SCREW	24	BEARING
6	MOTOR CONNECTION FLANGE	25	SEEGER
8	ADJUST SPACER	26	OIL SEAL
9	BEARING	27	CAP
10	HOLE INPUT WORM	28	BEARING
11	HOLE INPUT AND SHAFT OUTPUT WORM	29	WORM WHEEL
12	OIL SEAL	30	O-RING
13	INPUT COVER	31	OUTPUT COVER
14	BEARING	32	SEEGER
15	KEY	33	SPACER
16	SHAFT INPUT WORM	34	KEY
17	DOUBLE EXTENDED INPUT SHAFT WORM	35	KEY
18	KEY	36	DOUBLE OUTPUT SHAFT
19	OIL PLUG	37	SINGLE OUTPUT SHAFT

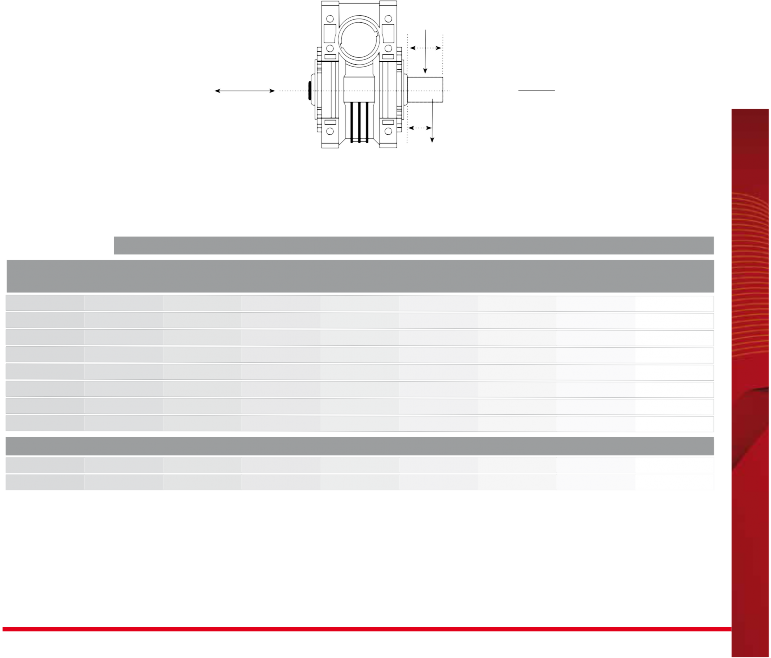

The loads indicated are valid for all application directions.

The maximum allowable axial loads are equal to 1/5 of the radial load value shown in the table when applied with the same radial load; if this is not the case, please contact our technical office. If double output shafts are used, the sum of radial loads applicable to the centre lines of the two ends of the shaft must not exceed the value shown in the table below.

The radial loads related to the output speed (n2)=10 are the maximum loads supported by the gear.

a GEAR CONSTANT

b GEAR CONSTANT

x LOAD DISTANCE FROM SHAFT SHOULDER IN mm. FRX RADIAL LOAD IN POSITION X (IN N)

FR RADIAL LOAD (N) FA AXIAL LOAD (N)

FA =

FR 5

= =

FRX

FRX = FR

a b+x

Output speed	03	04	05	SIZES	06	07	08
400	490	720	1000		1450	1800	2020
250	580	860	1190		1720	2140	2420
150	690	1010	1400		2020	2510	2840
100	790	1160	1600		2330	2880	3260
60	940	1380	1910		2770	3440	3880
40	1070	1570	2160		3130	3890	4380
25	1260	1850	2550		3700	4590	5180
10	1700	2500	3450		5000	6200	7000
a	60	71	CONSTANTS’ VALUES 99		130	136	146
b	45	51	69		102	108	118
