Speed range min-1

Voltage V

Connection

Power kW

Torque Nm

Motor type

280 – 1 400 (1 700)

300 – 1 500

3× 380 – 500

0.37 – 4.0

2.52 – 27.3

2.35 – 25.5

DRS.., DRE.., DRN.. DRE..J, DRU..J

290 – 2 900

300 – 2 610

3× 380 – 500



0.55 – 4.0

0.37 – 4.0

1.81 – 13.2

1.35 – 14.6

DRS.., DRE.., DRN.. DRE..J, DRU..J

280 – 1 700

3× 200 – 240

0.37 – 2.2

2.08 – 12.4

DRE.., DRS..

Features

– The product of success in decentralized drive technology: an ingenious combination of a gearmotor and an integrated digital frequency inverter

– Available in all standard gearmotor variants and mounting positions, with or without brake

– MOVIMOT of the D series can be combined with our DR.. motor series with various efficiency levels as standard:

- with DRU.. motors = IE4 Super Premium Efficiency

- with DRN.. motors = IE3 Premium Efficiency

- with DRE.. motors = IE2 High Efficiency

In combination with the DRE.., DRN.., and DRU.. motor series, MOVIMOT complies with the high- est efficiency class IES2 for drive systems according to EN 50598-2.

Degrees of protection

IP54, optionally IP55, IP65 or IP66

Ambient temperature

–30 °C/–20 °C to +40 °C (depending on the motor design)

Control via binary signals

Inputs for CW/stop, CCW/stop, setpoint changeover, potential-free signal relay, fixed setpoints, acceleration and deceleration ramps

Control via fieldbus communication

In combination with fieldbus interfaces with and without minicontroller PROFIBUS, INTERBUS, EthernetNet™ IP, DeviceNet™, AS-Interface, PROFINET IO and NEW SBusPLUS/EtherCAT (see page 190)

Startup modes: Easy, Expert and Central via PLC

Use in stand-alone applications

In combination with the following options:

– MLU..A: Local DC 24 V supply

– MLG.1A: Local setpoint adjuster with DC 24 V supply

– MBG11A: Setpoint adjuster for setting and displaying the setpoint frequency

– MWA21A: Setpoint converter for interfacing analog setpoints (0 to 10 V, 0 to 20 mA, 4 to 20 mA) to RS-485

Use in decentralized installation

In combination with the field distributors:

– MF.../Z.3.

– MF.../Z.6.

– MF.../.../Z.7.

– MF.../.../Z.8.

– And associated hybrid cables

Diagnostics

3-color LED to indicate operating and fault states

Via diagnostic interface, serial interface RS485 and MDG11A option or PC

Approval

IEC or

IES2

In combination with the DRE.. motor type (IE2), MOVIMOT already meets the requirements of the highest system efficiency class IES2 for a drive system (PDS: Power Drive System) according to EN 50598 2. However, MOVIMOT is also available with IE3 and IE4 motors.

safety

Functional safety

With the optional safety package, you can realize the following requirements:

– Safety category 3 according to EN 954-1

– Performance level d according to EN ISO 13849-1

– SIL 2 according to IEC 61 800-5-2

Safety function: Safe Torque Off (STO) up to PL d according to EN ISO 13849-1

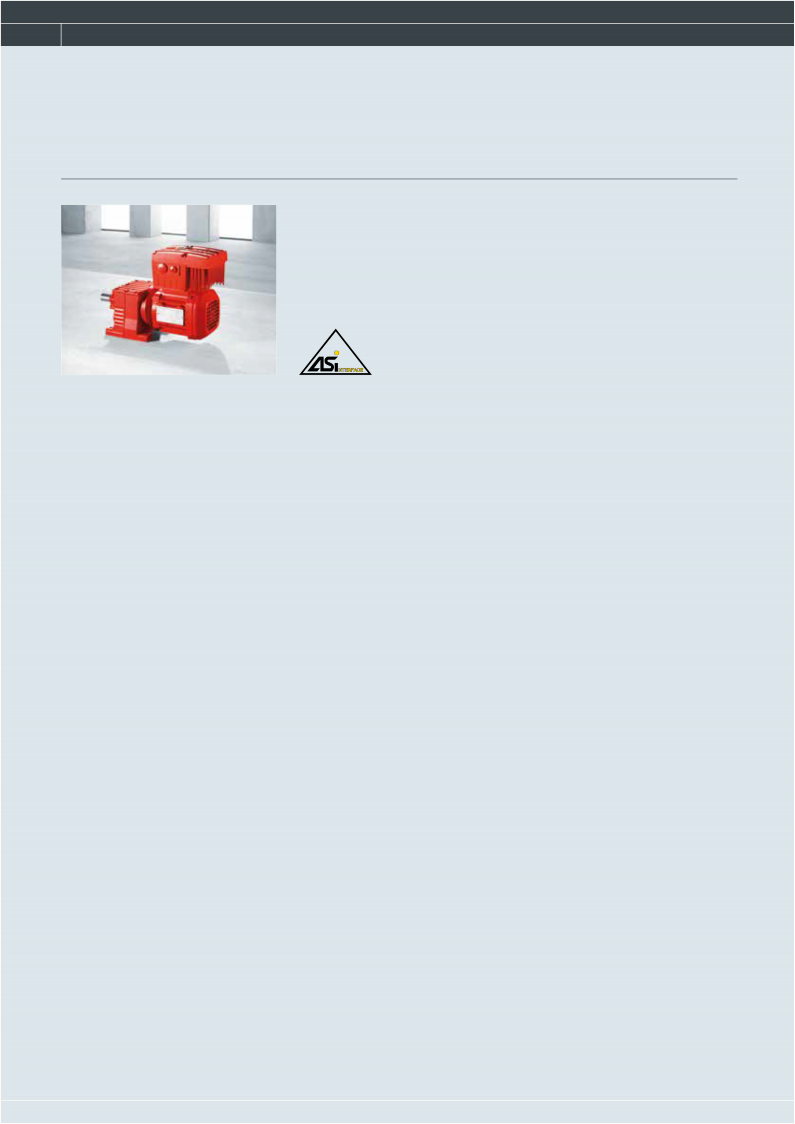

Features of MOVIMOT in category 3D

– Design: with EDR.. motors and an integrated frequency inverter

– Specifically for use in potentially explosive dust/air mixtures

– Power range from 0.25 to 3.0 kW, with and without brake for connection voltages of 400 to 500 V

Nominal speed min-1

Voltage V

Connection

Power kW

Torque Nm

1 400

3× 400 – 500

0.25 – 3.0

1.7 – 20.5

2 900

3× 400 – 500



0.37 – 3.0

1.2 – 9.9

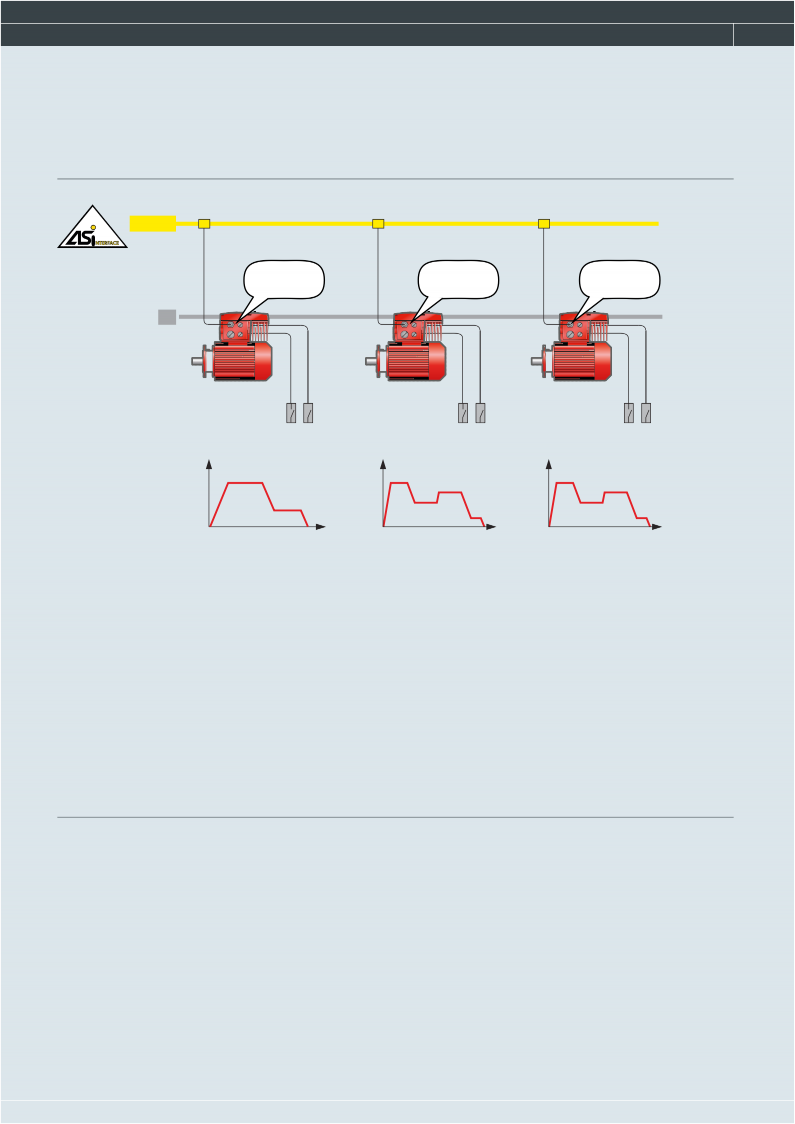

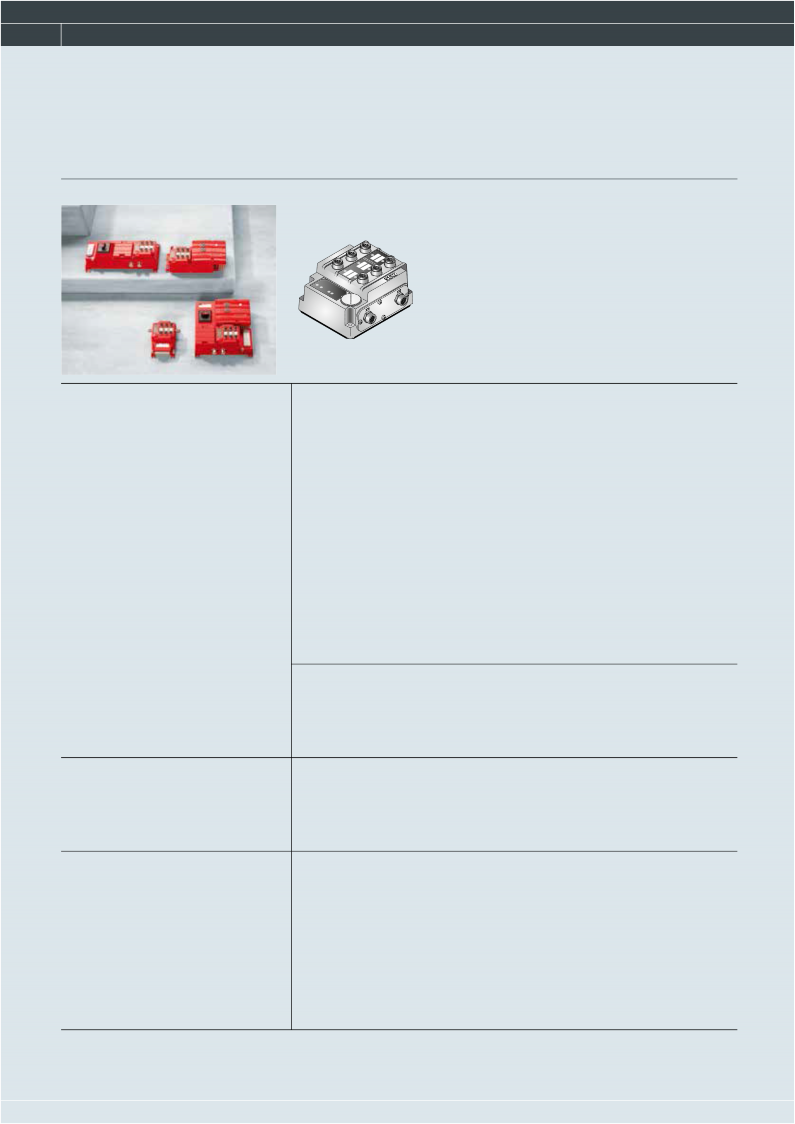

Features

– MLK30A binary slave

- The ASI slave works like a module with 4 inputs and 4 outputs

- Max. 31 AS-Interface stations

– MLK31A double slave

- Double slave according to the AS Interface specification 3.0

- Several speed setpoints and ramps

- Parameterizable via AS-Interface: Reading and writing of MOVIMOT parameters and display values

- Max. 31 AS-Interface stations

– NEW: MLK32A binary slave

- Slave according to the AS Interface specification 3.0

- Several speed setpoints and ramps

- Max. 62 AS-Interface stations

- Optional Safe Torque Off according to EN 13849 PL d (STO)

– 2 sensor inputs connected directly via the AS-Interface nodes (for all MLK types)

Possible applications

– Simple fieldbus connection

– For applications that require soft startup behavior

– Signal feedback of connected sensors

– For applications that require a lot of space

– Individual parameter access in conjunction with MLK31 directly via AS-Interface

Application examples

– Roller conveyors

– Pallet conveyors

– Accumulating roller conveyors

– Rotary tables
