Features

The standard inverter for direct mounting to the motor or mounting close to the motor

Power range kW

– 3× 380 – 500 V: 0.37 – 4.0

– 3× 200 – 240 V: 0.7 – 2.2

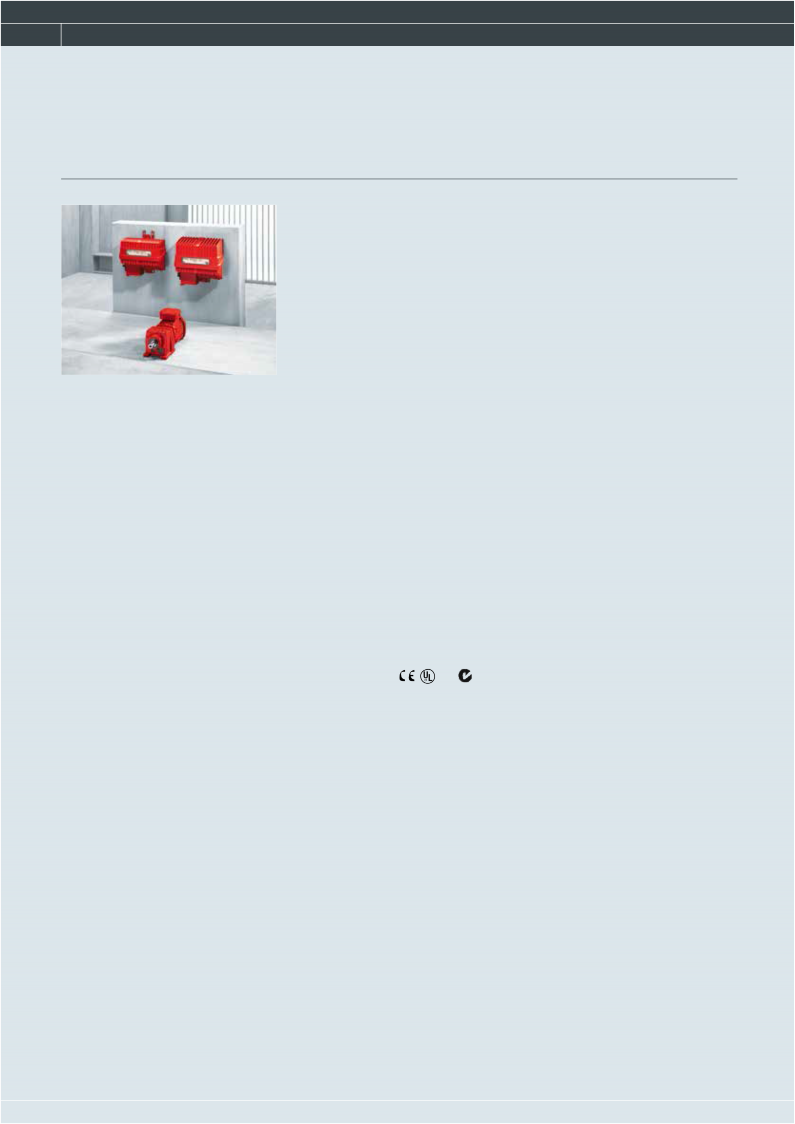

MOVIFIT MC distributors classic: for MOVIMOT

MOVIFIT MC controller technology: for MOVIMOT

Features

– Power, communication and function distributor for MOVIMOT

– Up to 3 MOVIMOT units can be connected via hybrid cable

– Integrated power distribution with line protection up to 6 mm2

– Optional maintenance switch

– Optional incremental encoder connection

– Comprehensive safety functionality

– All common bus systems are available

– Integrated digital inputs and outputs

– Integrated parameter memory

– Comprehensive diagnostics via LEDs

– Expanded parameterization and diagnostics via MOVITOOLS MotionStudio or fieldbus

– Plug-in interfaces for energy, motors (power rating) and IOs

– Robust aluminum housing

– Degree of protection IP65

– Approval: , and

Technical data

– MOVIMOT power range from 0.37 to 4 kW in two sizes

– Voltage range MOVIFIT MC 3× 380 V to 500 V / 50 Hz to 60 Hz

– 12 DI + 4 DIO (DI = digital input, DIO = digital input/output)

Function level

Indicates the functional level of the software assigned to the MOVIFIT units regarding

– Software functionality

– Processing the digital inputs and outputs

– Local system control

– Startup operation and diagnostics

MOVIFIT MC distributors classic

Simple and standardized functions

MOVIFIT MC controller technology Parameterizable application modules and free programming

– “Easy mode”: Easy startup via DIP switches possible

– Standardized drive functions

– Control as fieldbus gateway

– Extended configuration and diagnostics options via gateway configurator

Parameterizable application modules – Standardized application function

– Standardized functions

– Control and diagnostics via fieldbus

– Parameterization instead of programming

– Startup and diagnostics using MOVITOOLS MotionStudio

Open programming

(MOVI-PLC / MOVITOOLS MotionStudio)

– Programming in accordance with IEC 61131

(e.g. in LD, FBD, IL, ST, SFC)

– MOVITOOLS MotionStudio with PLC Editor, Application Builder, etc.

– Multi-level library concept

(application and program modules of the MOVI-PLC series of controllers)

– PLCopen certified motion blocks

safety

Functional safety

Safety functions integrated in the MOVIMOT inverter in accordance with IEC 61800-5-2:

– Safe disconnection (STO)

– Safe stopping SS1 (a)

– Approval in accordance with:

- Category 3 according to EN 954-1

- Performance level d in accordance with EN ISO 13849-1

- SIL 2 according to IEC 61800-5-2

Safety options S11 and S12

– PROFIsafe connection or independent operation (different numbers of safe inputs and outputs)

MOVIFIT FC standard inverter classic

MOVIFIT FC application inverter technology

Features

– Decentralized frequency inverter with a wide range of functions

– Constant speed control, synchronized motion, simple lifting axes

– Integrated T distributor for supply and control voltage up to 6 mm²

– Integrated energy efficient brake management for various brake voltages

– Optional internal (integrated in ABOX) or external braking resistor

– Optional maintenance switch

– Optional incremental encoder connection

– All common bus systems are available

– Integrated parameter memory

– Comprehensive diagnostics via LEDs

– Expanded parameterization and diagnostics via MOVITOOLS MotionStudio or fieldbus

– Plug-in interfaces for energy, motors (power rating) and IOs

– Robust aluminum housing

– Degree of protection IP65 (optional IP69K)

– General approvals: , and

Technical data

– Power range from 0.37 to 4 kW

- Size 1: 0.37 kW to 1.5 kW

- Size 1: 2.2 kW to 4.0 kW

– Voltage range 3× 380 V to 500 V / 50 Hz to 60 Hz

– 12 DI + 4 DI/O with function level Classic and PROFINET fieldbus

– 6 DI + 2 DI/O with function level Classic

– 12 DI + 4 DI/O (DI = digital input, DI/O = digital input/output) with function level technology

Function level

Indicates the functional level of the software assigned to the MOVIFIT units regarding

– Software functionality

– Processing the digital inputs and outputs

– Local system control startup

– Operation and diagnostics

MOVIFIT FC standard inverter classic

Simple and standardized functions

MOVIFIT FC application inverter technology

Parameterizable application modules:

– Standardized functions

– Control and diagnostics via fieldbus

– Parameterization instead of programming

– Startup and diagnostics using MOVITOOLS MotionStudio

– “Easy mode”: Easy startup via DIP switches possible

– Standardized drive functions

– Control as fieldbus gateway

– Extended configuration and diagnostics options via gateway configurator

Open programming

(MOVI-PLC / MOVITOOLS MotionStudio)

– Programming in accordance with IEC 61131

(e.g. in LD, FBD, IL, ST, SFC)

– MOVITOOLS MotionStudio with PLC Editor, Application Builder, etc.

– Multi-level library concept

(application and program modules of the MOVI-PLC series of controllers)

– PLCopen certified motion blocks

safety

Functional safety

Safety functions integrated in the MOVIMOT inverter in accordance with IEC 61800-5-2:

– Safe disconnection (STO)

– Safe stopping SS1(a) & SS1(c)

– Safe motion (SDI, SLS)

– Approval in accordance with:

- Category 3 according to EN 954-1

- Performance level d in accordance with EN ISO 13849-1

- SIL 2 according to IEC 61800-5-2

Safety options S11 and S12

– PROFIsafe connection or independent operation (different numbers of safe inputs and outputs)

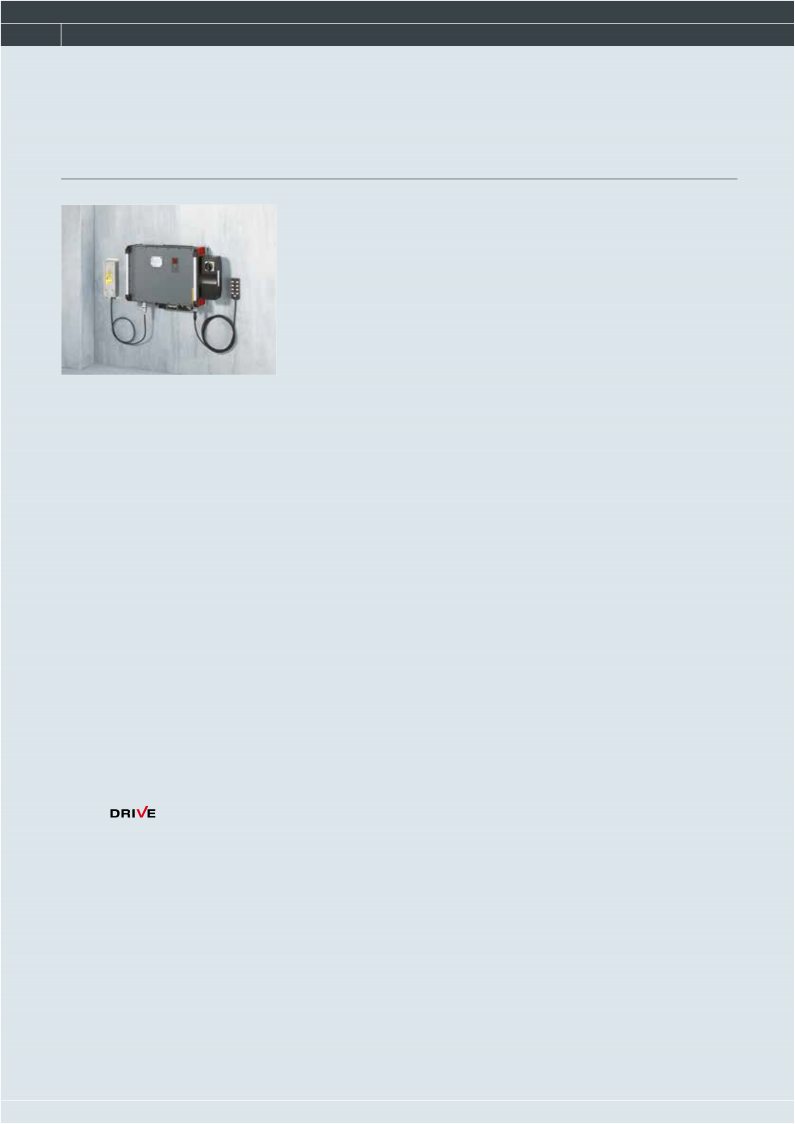

Standard inverter MOVIPRO SDC –

Decentralized drive inverter with positioning control

Application inverters MOVIPRO ADC –

Compact and freely programmable controller for decentralized drive technology

Features

– Speed control and positioning

– Optional encoder feedback for motor and track

– Integrated brake control with various brake voltages

– Optional regenerative power supply (only ADC)

– Fieldbus interfaces: PROFIBUS, PROFINET, PROFIsafe, EtherNet/IP™, Modbus/TCP, DeviceNet™

– Integrated digital inputs and outputs

– Optional RS485, SBus, and SBusPLUS interfaces for external actuators and sensors

– Plug-in interfaces for energy, motors (power), and encoders (signals)

– Local memory for parameters

– Degree of protection IP54

– Robust aluminum housing

– Optional maintenance switch

– Optional, separable connection unit for linear power bus

Technical data

– Power range from 2.2 to 22 kW

- Size 0: 2.2 kW

- Size 1: 4 kW, 7.5 kW

- Size 2: 11 kW, 15 kW, 22 kW

– Voltage range 3× 380 V to 500 V / 50 Hz to 60 Hz

– 12 DI + 4 DI/O with function level Classic and PROFINET fieldbus

safety

Functional safety

– Safe Torque Off (STO) up to category 3 and PL d according to EN ISO 13849-1

– Option: safe bus system PROFIsafe

– Optional only for ADC: Safe brake control (SBC)

Designation

Maximum output current in A

MMD60B019-5A3-4-00

19.0

MMD60B024-5A3-4-00

24.0

MMD60B036-5A3-4-00

36.0

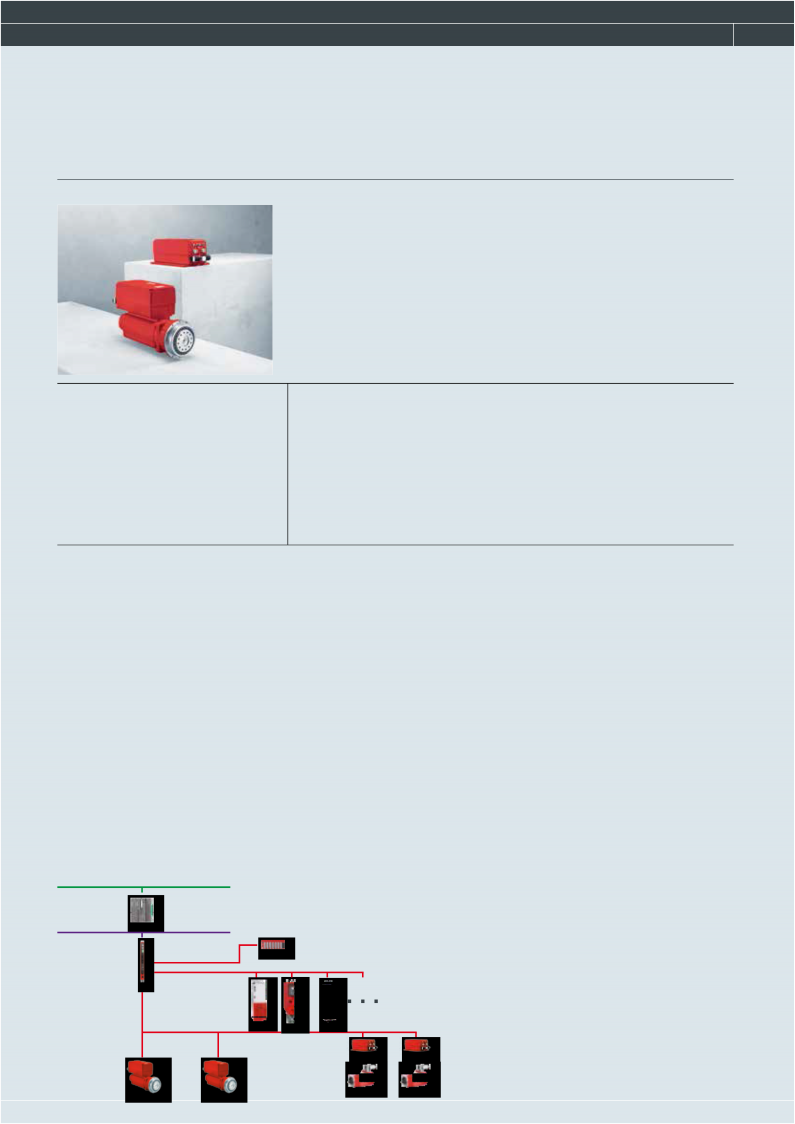

Motor

MOVIAXIS MMD60B designation

019

024

036

CM71L, n = 4 500 min-1

n

-

X

X

CM90L, n = 4 500 min-1

n

-

-

X

CM112L, n = 1 200 min-1

n

-

-

X

Decentralized frequency inverter for mounting close to the motor

X

X

X
