MasoSine EcoSine sanitary pumps satisfy demanding processing requirements cost-effectively, using the unique MasoSine pumping principle. This model is a sanitary pump for pressures to 6bar (90 psi)and bi-directional operation.
The sine-wave-shaped rotor creates four moving chambers which gently convey the duty fluid from the inlet port to the higher-pressure discharge port. The gate prevents any fluid passing back from the discharge side to the lower-pressure suction side of the pump
Capacity: 590 US gpm (134,000 litre/hour)
Pressures to 87 psi (6 bar)
Pressures to 87 psi (6 bar)
Typical applications: dairy, prepared foods, bakery, beverage, cosmetic, and pharmaceutical industries.

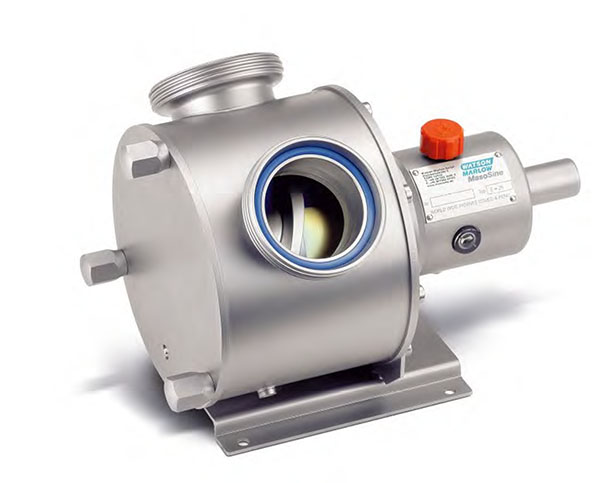

MasoSine EcoSine sanitary pumps
Like peristaltic pumping, the MasoSine pumping principle requires no valves. The four chambers are sealed. The system is ideal for fluids carrying soft solids such as fruit, and viscous media such as sauces and silicones.
The EcoSine pump is available on a static, stainless steel base with adjustable feet. The drive can be in-line or offset, as dictated by the application. Units can be mounted on castors, making the pump a very flexible piece of process equipment.
